HDC - Multi-Pole Industrial heavy duty Connector 16pins 16A insert 09200162612 HA-016-M
- Number of contacts:
- 16
- Rated current:
- 16A
- Part:
- SO-HA-016-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200162612
Description
Specification

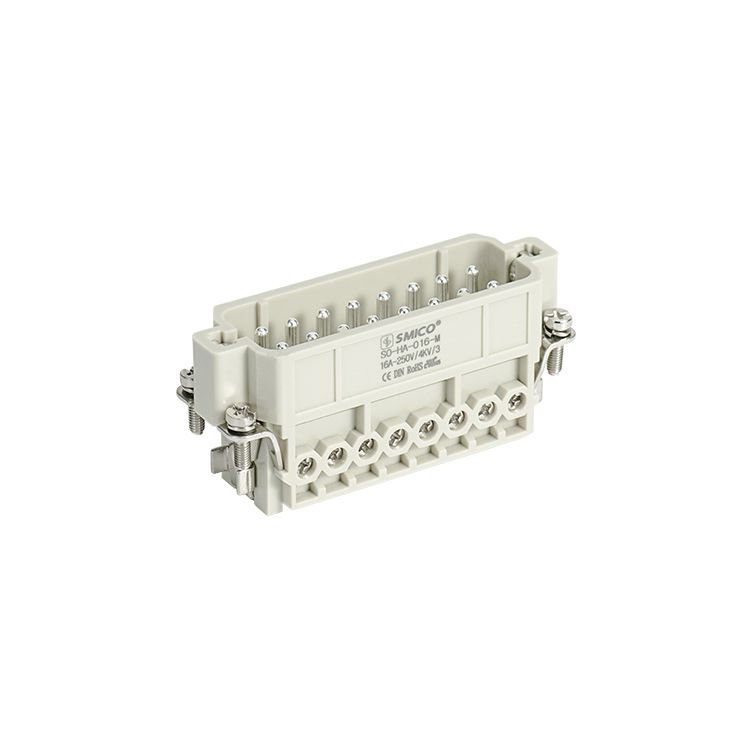

HDC - Multi-Pole Industrial heavy duty Connector 16pins 16A insert
Multi-Pole Industrial Connector is one of various electronics connectors ,rectangular industrial connectors designed to transmit power in the toughest of conditions
16Poles + PE, 16 A Male Screw Terminal :
| Inserts | Suitable Shell:16AHood/Housing |
| Number of contacts | 16 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-016-M | SO-HA-016-F |
| H | 09200162612 | 09200162812 |
| ILME | CDAM 16 | CDAF 16 |
| TE | ||
| LAPP EPIC | 10530000 | 10531000 |
| PHOENIX | 1585317 | 1585320 |
| MOLEX | ||
| WEIDMULLER | HDC HA 16 MS | HDC HA 16 FS |
| WIELAND | ||
| AMPHENOL |

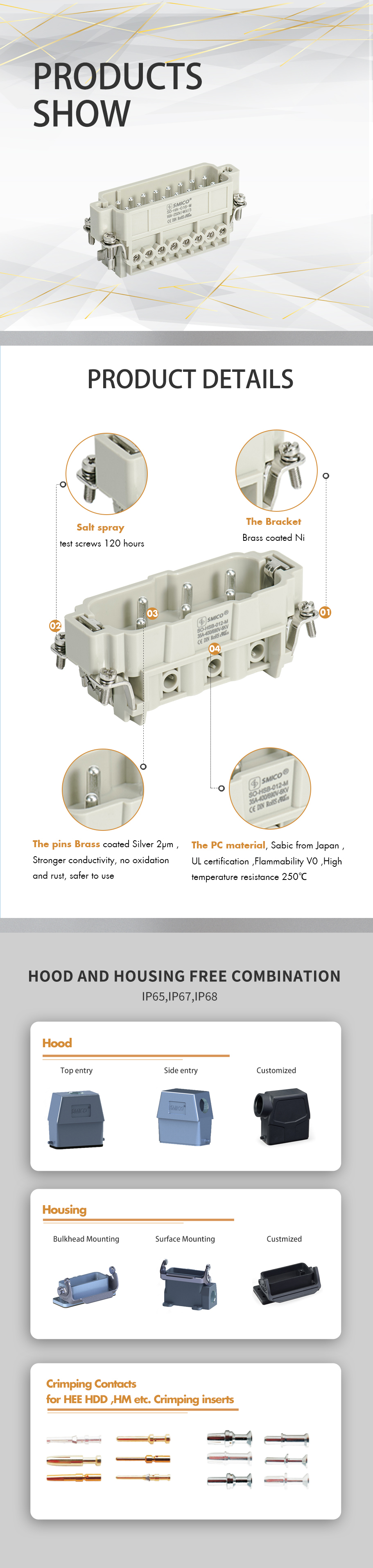

Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type

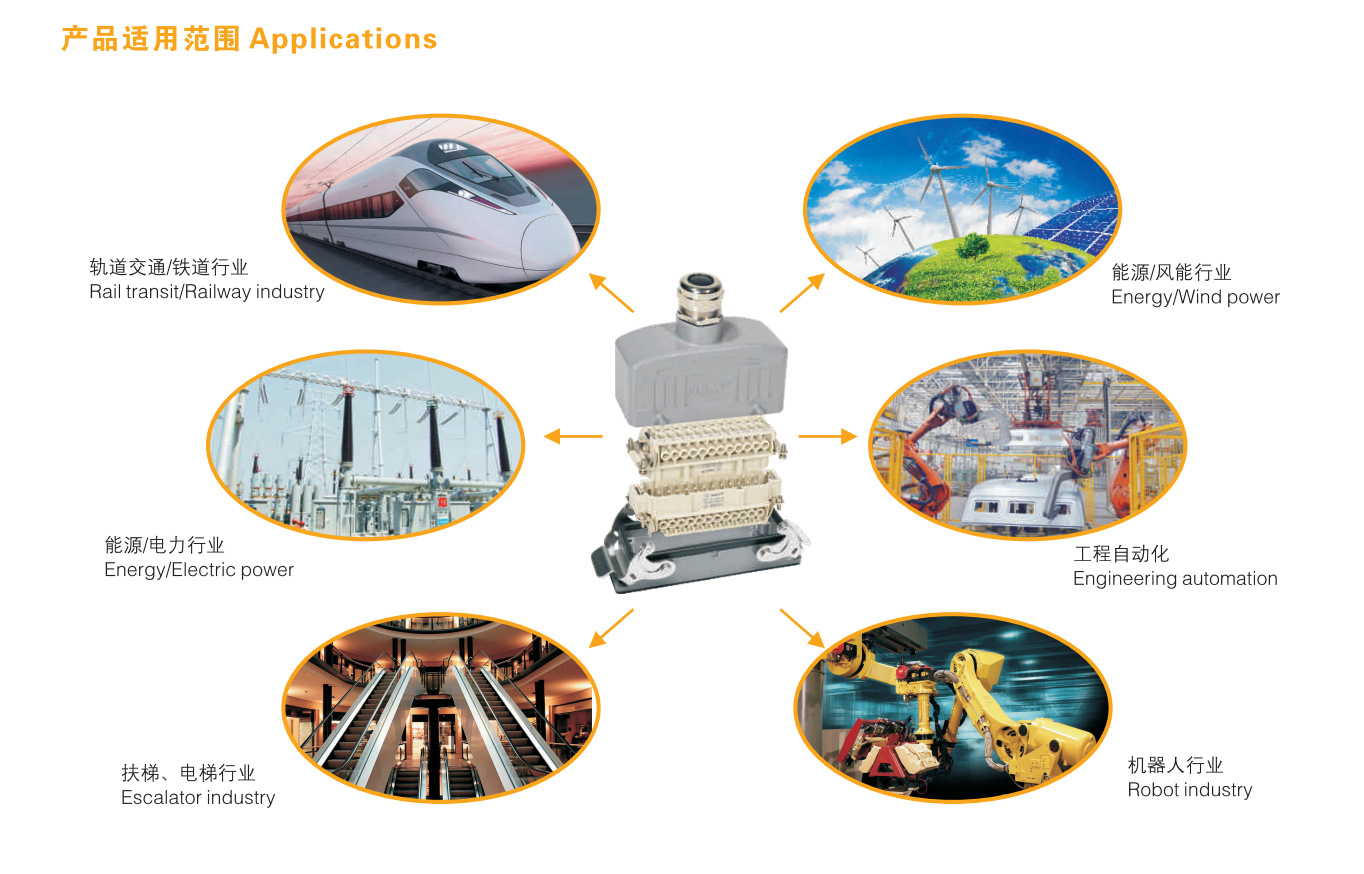

Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| HDC - Multi-Pole Industrial heavy duty Connector 16pins 16A insert 09200162612 HA-016-M | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
