16P Female Heavy Duty Power Connectors 09200162812 HA-016-F
- Number of contacts:
- 16
- Rated current:
- 16A
- Part:
- SO-HA-016-F
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200162812
Description
Specification

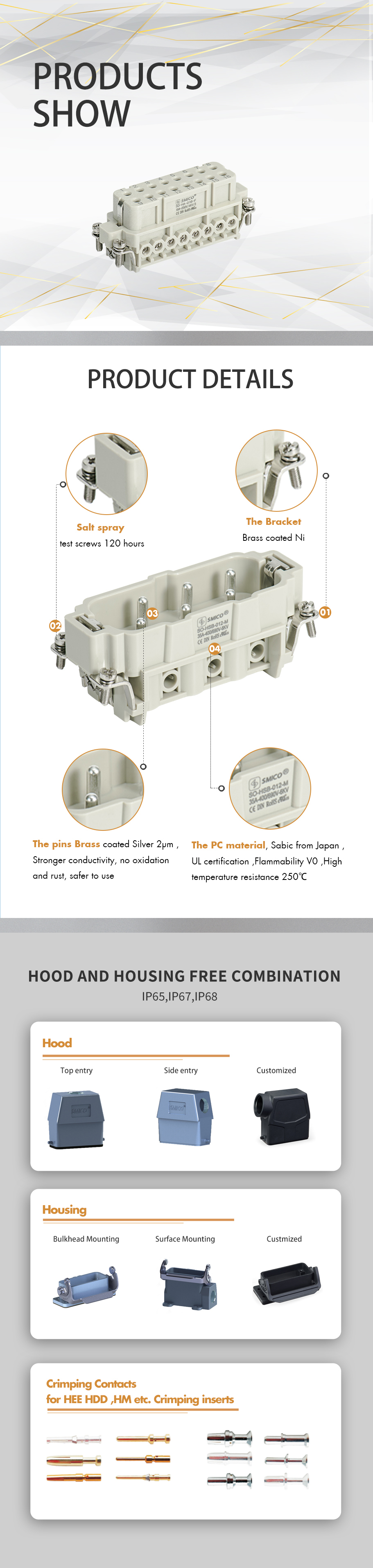

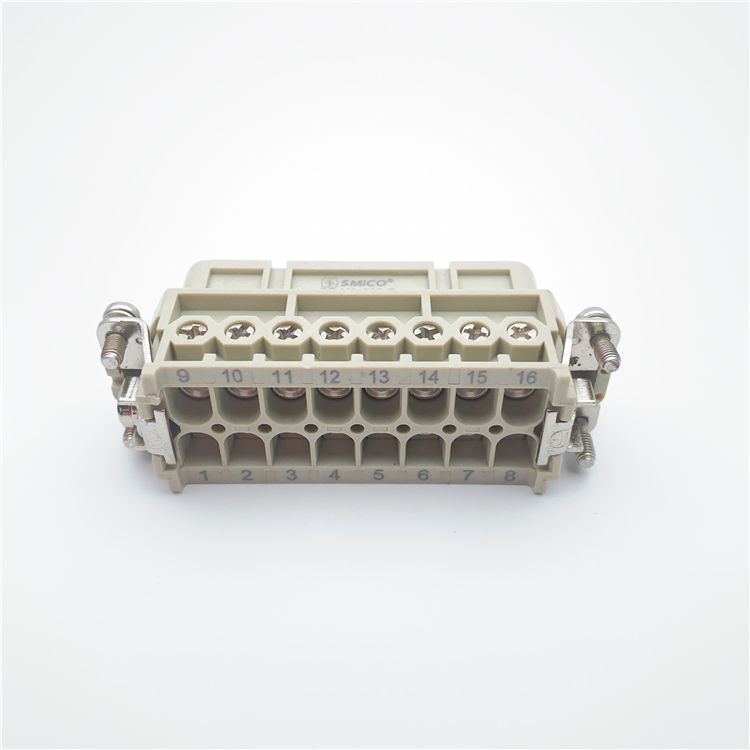

16P Female Heavy Duty Power Connectors
16P Female Heavy Duty Power Connectors Inserts Suitable Shell:16AHood/Housing Number of contacts 16 Electrical data acc. to EN 61 984
16Poles + PE, 16 A Female Screw Terminal :
| Inserts | Suitable Shell:16AHood/Housing |
| Number of contacts | 16 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |

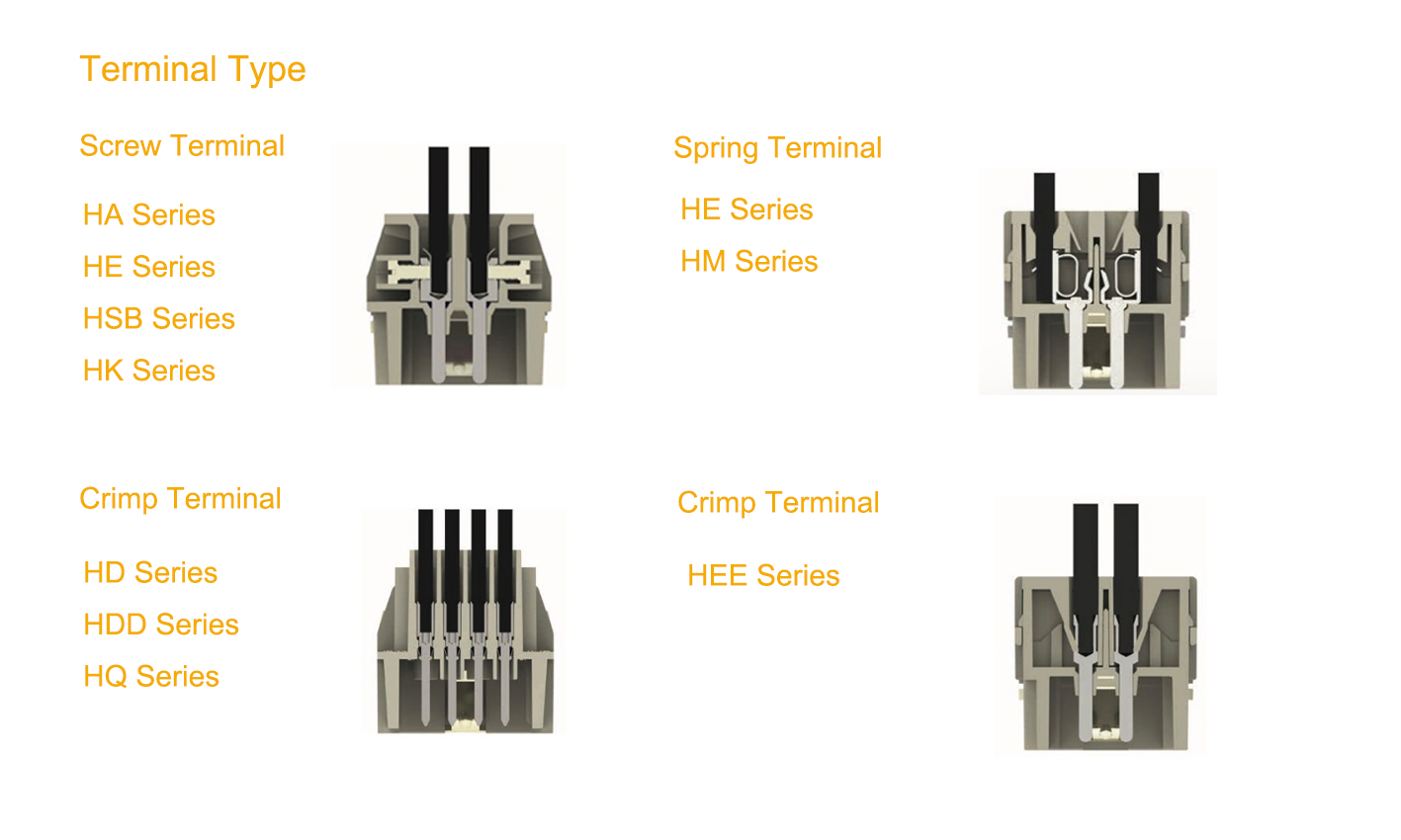

| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H16A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-016-M | SO-HA-016-F |
| H | 09200162612 | 09200162812 |
| ILME | CDAM 16 | CDAF 16 |
| TE | ||
| LAPP EPIC | 10530000 | 10531000 |
| PHOENIX | 1585317 | 1585320 |
| MOLEX | ||
| WEIDMULLER | HDC HA 16 MS | HDC HA 16 FS |
| WIELAND | ||
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 16P Female Heavy Duty Power Connectors 09200162812 HA-016-F | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
