10pins Heavy Duty Power and Signal Connectors 09200102812 HA-010-F
- Number of contacts:
- 10
- Rated current:
- 16A
- Part:
- SO-HA-010-F
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200102812
Description
Specification
10pins Heavy Duty Power and Signal Connectors catalogue
Heavy Duty Power and Signal Connectors for power, signals and data in industrial environments and according demand to match .

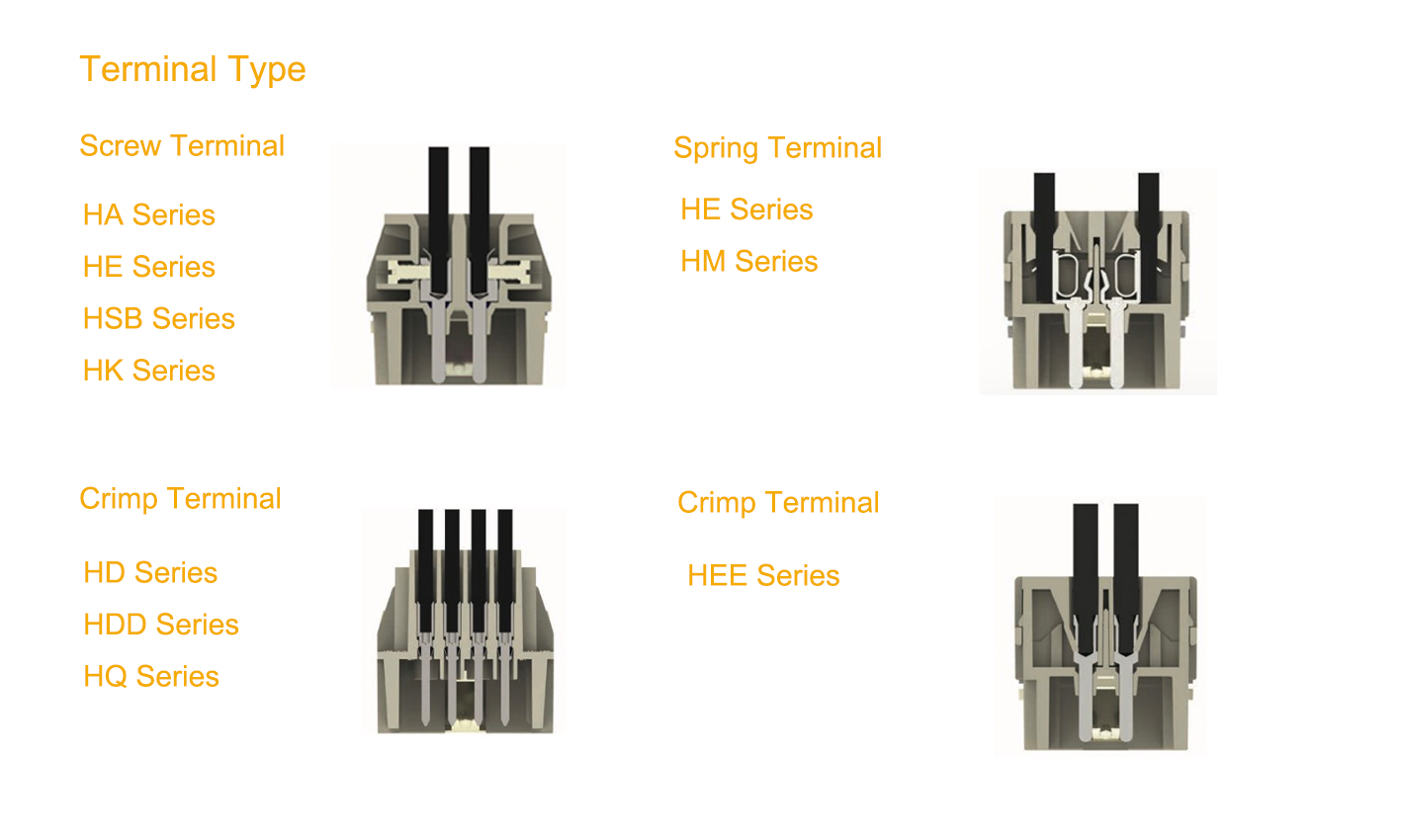

10Poles + PE, 16 A Female Screw Terminal :
| Inserts | Suitable Shell:10AHood/Housing |
| Number of contacts | 10 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.

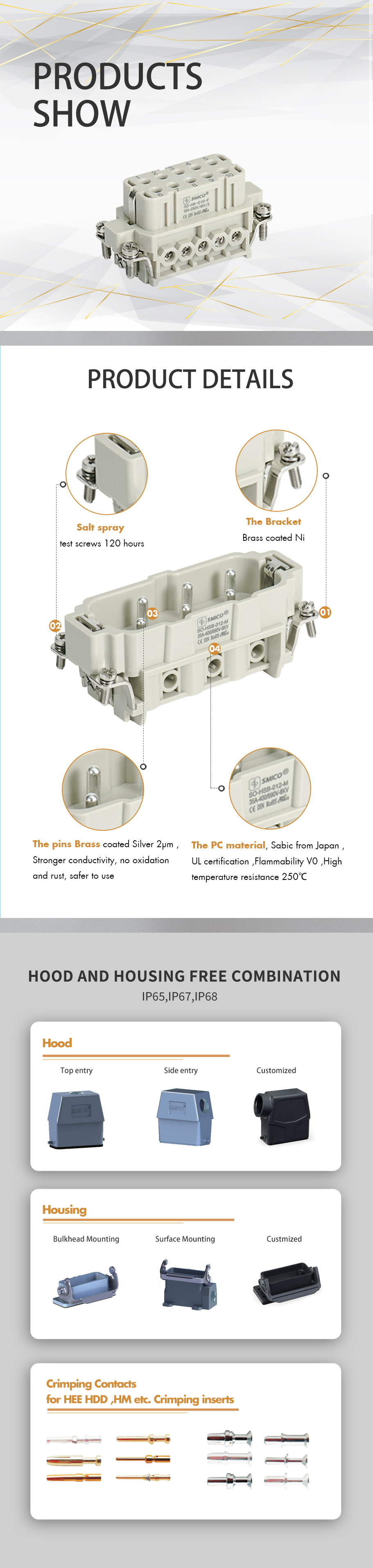

The hood and housing for H10A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-010-M | SO-HA-010-F |
| H | 09200102612 | 09200102812 |
| ILME | CDAM 10 | CDAF 10 |
| TE | ||
| LAPP EPIC | 10440100 | 10441100 |
| PHOENIX | 1585294 | 1585304 |
| MOLEX | ||
| WEIDMULLER | HDC HA 10 MS | HDC HA 10 FS |
| WIELAND | ||
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 10pins Heavy Duty Power and Signal Connectors 09200102812 HA-010-F | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
