Heavy duty connectors 32pin male Plugs for EUROMAP 12 09200162613 HA-032-M
- Number of contacts:
- 32
- Rated current:
- 16A
- Part:
- SO-HA-032-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200162613
Description

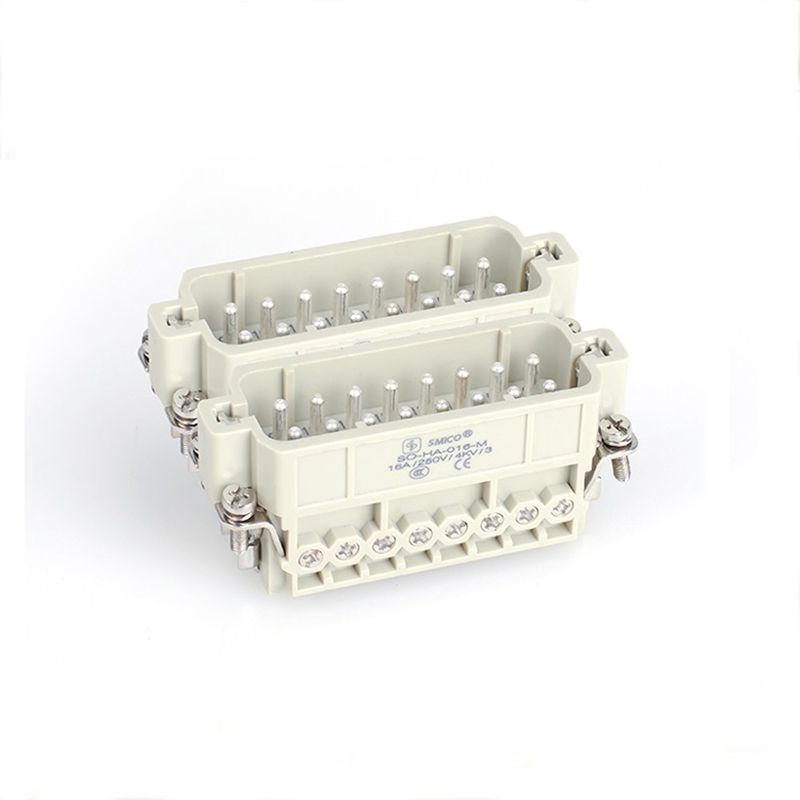

Heavy duty connectors 32pin male Plugs for EUROMAP 12
Plugs for EUROMAP 12: Electrical Interface between lnjection Moulding Machine and Handling Device, 32pin male + female
32 Poles + PE, 16 A Male Screw Terminal :
| Inserts | Suitable Shell:32AHood/Housing |
| Number of contacts | 32 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H32A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-016-M SO-HA-032-M | SO-HA-016-F SO-HA-032-F |
| H | 09200162612 09200162613 | 09200162812 09200162813 |
| ILME | CDAM 16 CDAM 16 N | CDAF 16 CDAF 16 N |
| TE | ||
| LAPP EPIC | 10530000 10542000 | 10531000 10543000 |
| PHOENIX | 1585317 10543000 | 1585320 1585346 |
| MOLEX | ||
| WEIDMULLER | HDC HA 16 MS HDC HA 16 MS 17-32 | HDC HA 16 FS HDC HA 16 FS 17-32 |
| WIELAND | ||
| AMPHENOL |
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Heavy Duty Connectors (HDC) Applications
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
What products does the HDC portfolio consist of?
The HDC portfolio consists of:
- Hoods, housings and bases: available in different protection degrees IP65, IP67, IP68 and IP69k

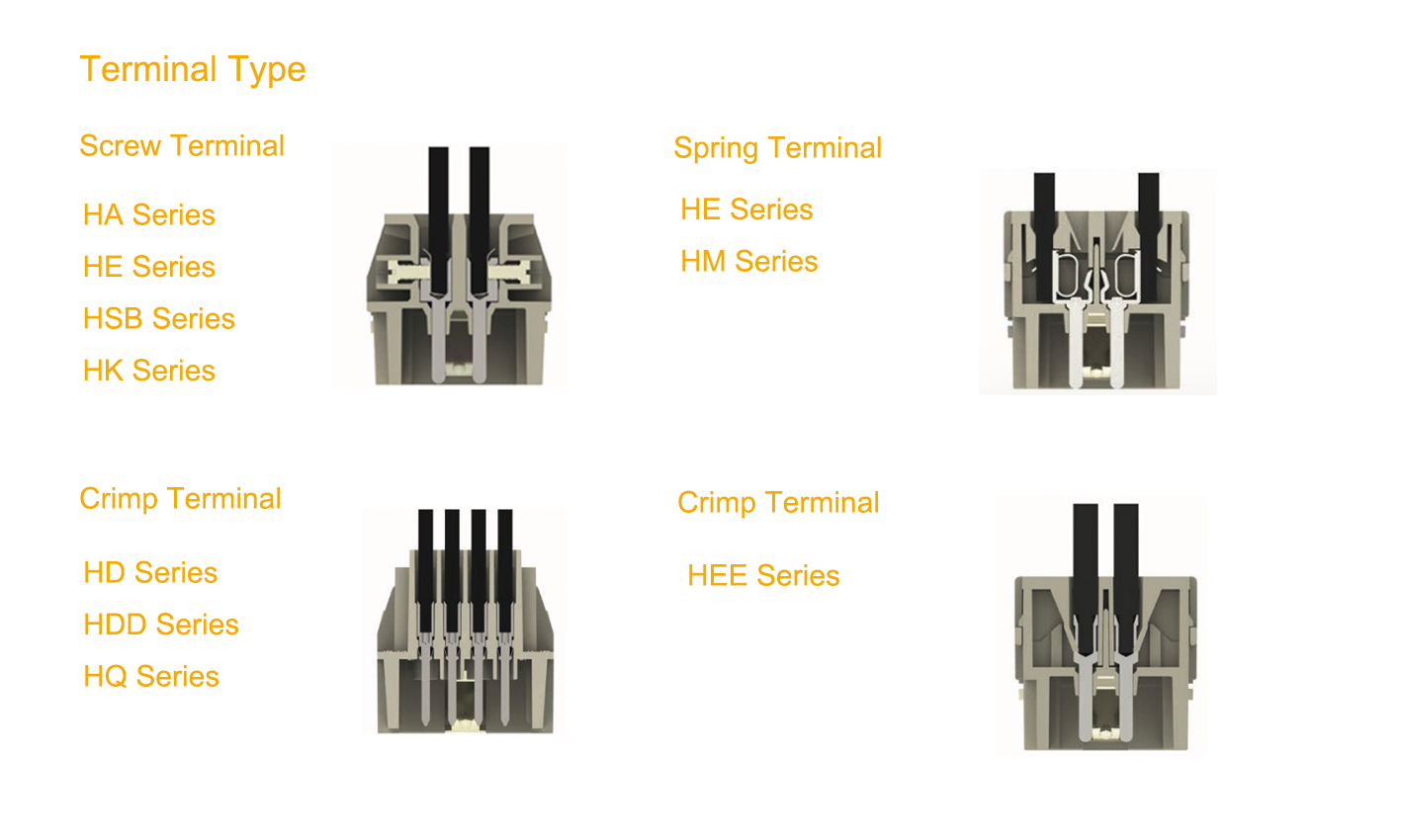

- Contact systems: ranging from 5A to 650A in screw, crimp and cage clamp termination
- Inserts: available in up to 216 pins in one connector for crimp, screw termination or cage clamp
