16A HDC HA series 10 contacts insert plug heavy duty connectors 09200102612 HA-010-M
- Number of contacts:
- 10
- Rated current:
- 16A
- Part:
- SO-HA-010-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Order No.:
- 09200102612
Description
Specification

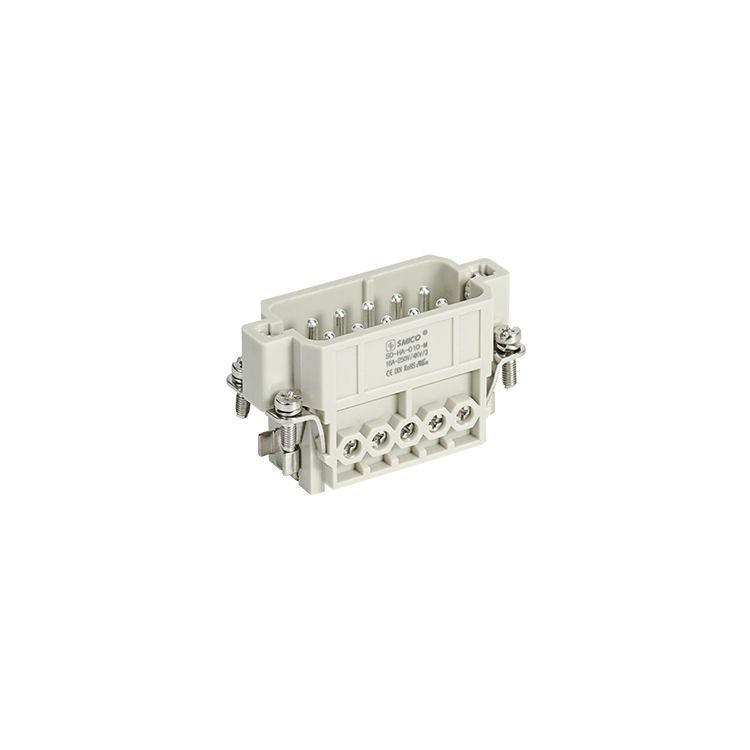

16A HDC HA series 10 contacts insert plug heavy duty connectors

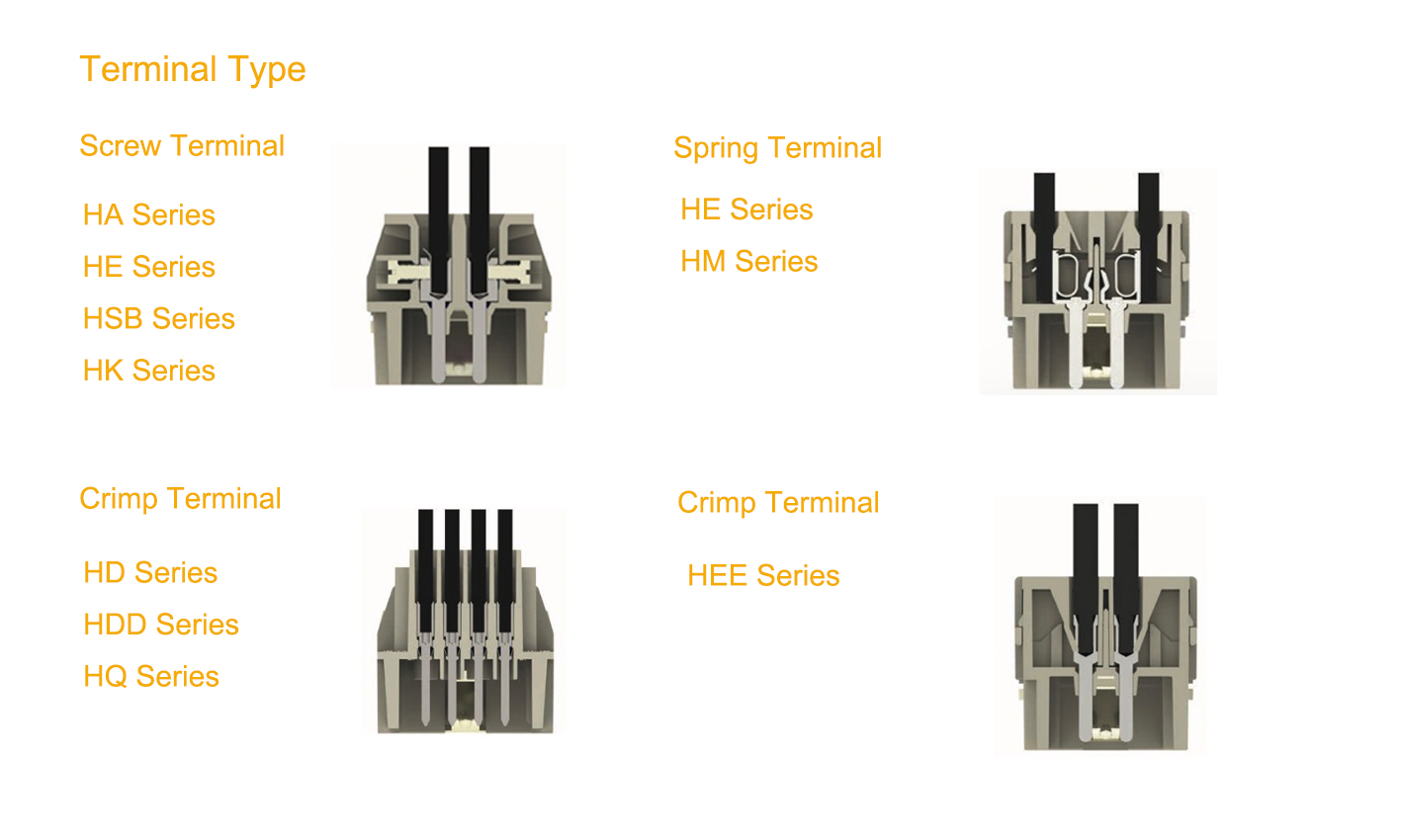

Heavy duty connector Small size, Available in crimp and screw termination,Screw termination also available with wire protection .
10Poles + PE, 16 A Male Screw Terminal :
| Inserts | Suitable Shell:10AHood/Housing |
| Number of contacts | 10 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
Heavy-duty connectors are specially designed and applied to meet the requirements of harsh environmental conditions. The main application areas are industrial automation, equipment manufacturing and industrial system buildings, as well as information and control technology.
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H10A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-010-M | SO-HA-010-F |
| H | 09200102612 | 09200102812 |
| ILME | CDAM 10 | CDAF 10 |
| TE | ||
| LAPP EPIC | 10440100 | 10441100 |
| PHOENIX | 1585294 | 1585304 |
| MOLEX | ||
| WEIDMULLER | HDC HA 10 MS | HDC HA 10 FS |
| WIELAND | ||
| AMPHENOL |

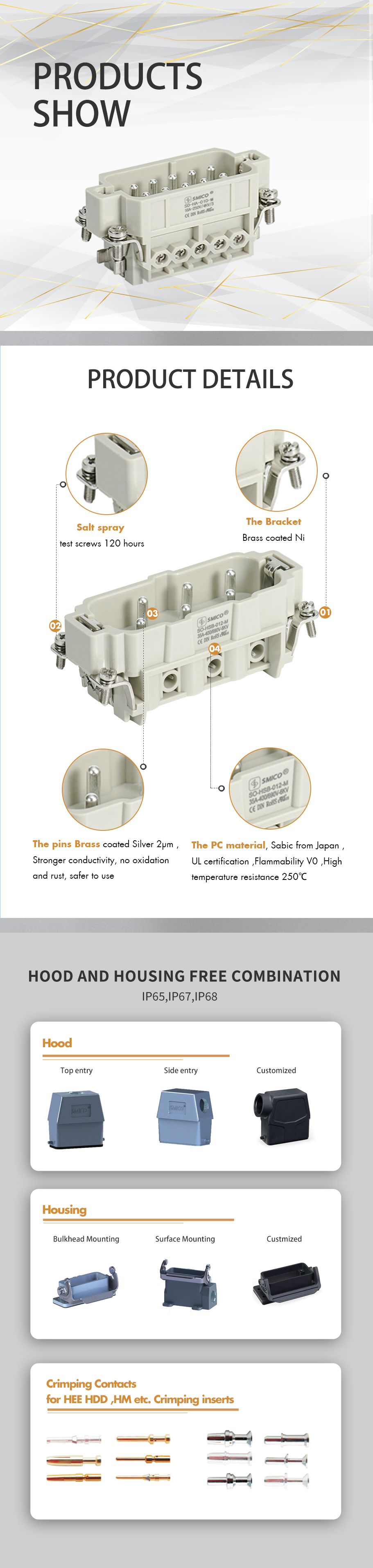

Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
-
Without MOQ except the customized type

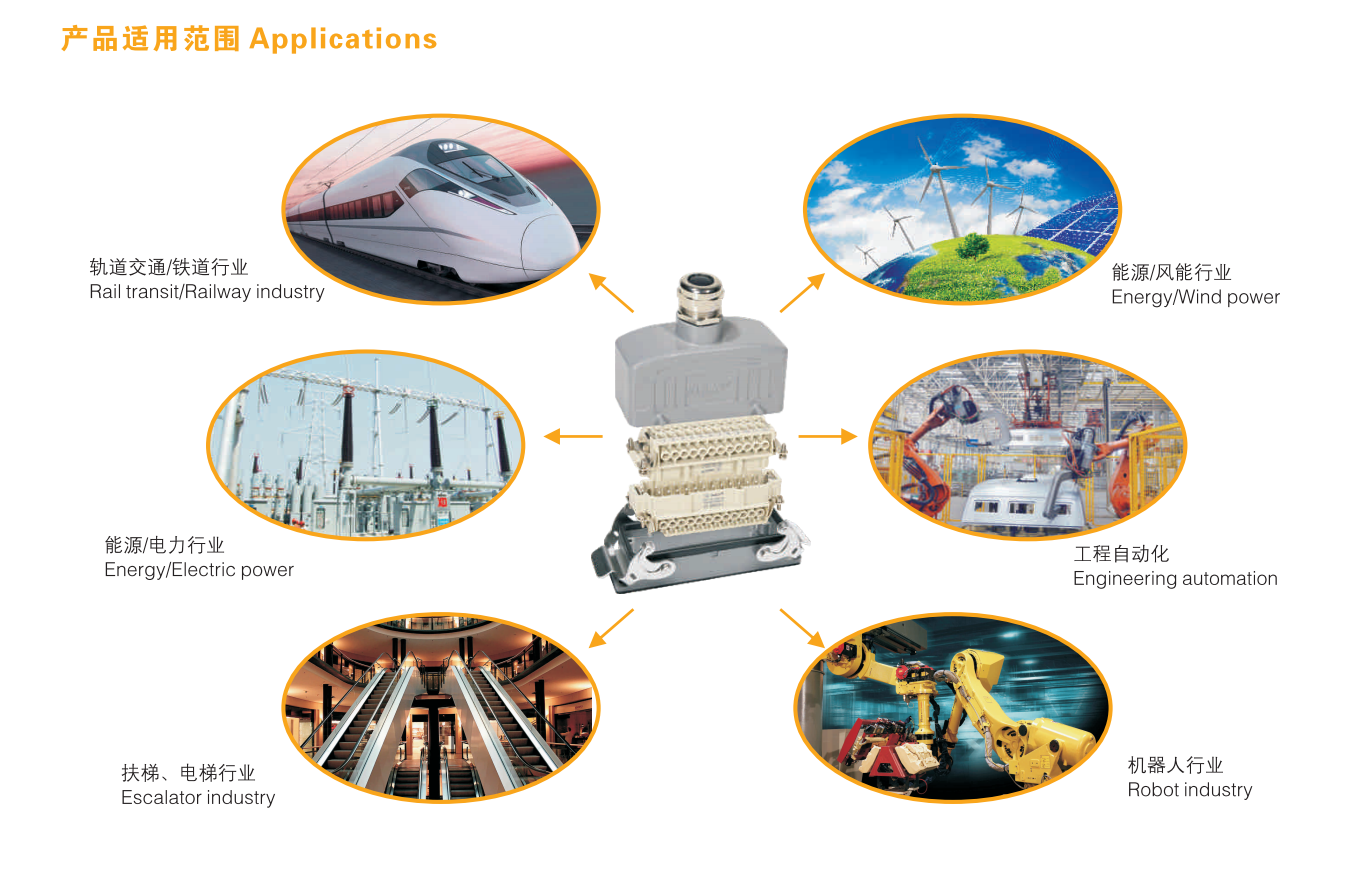

Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 16A HDC HA series 10 contacts insert plug heavy duty connectors 09200102612 HA-010-M | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
