16A 32 Pole Crimp Terminal Heavy Duty Cable Connectors 09200162813 HA-032-F
- Number of contacts:
- 32
- Rated current:
- 16A
- Part:
- SO-HA-032-F
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 250V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09200162813
Description
Specification

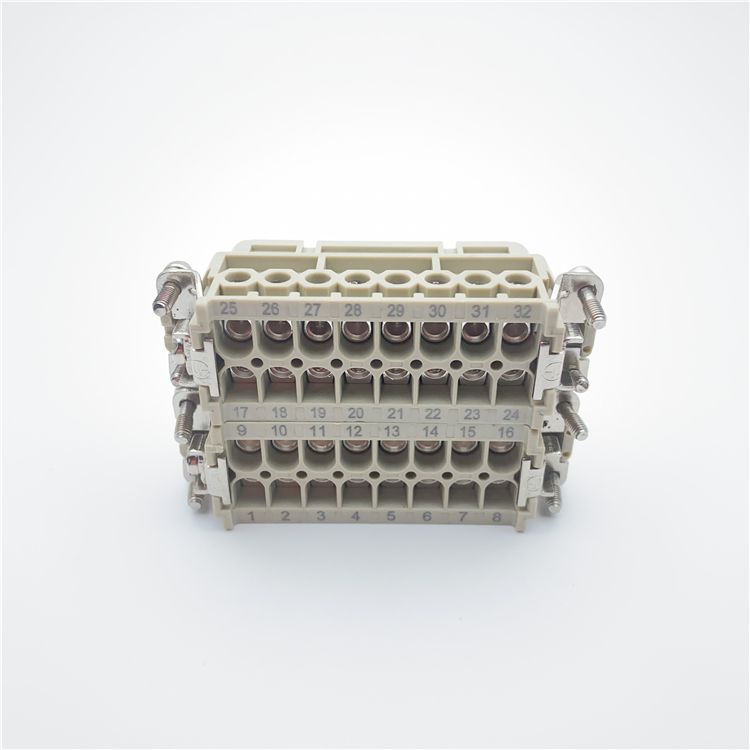

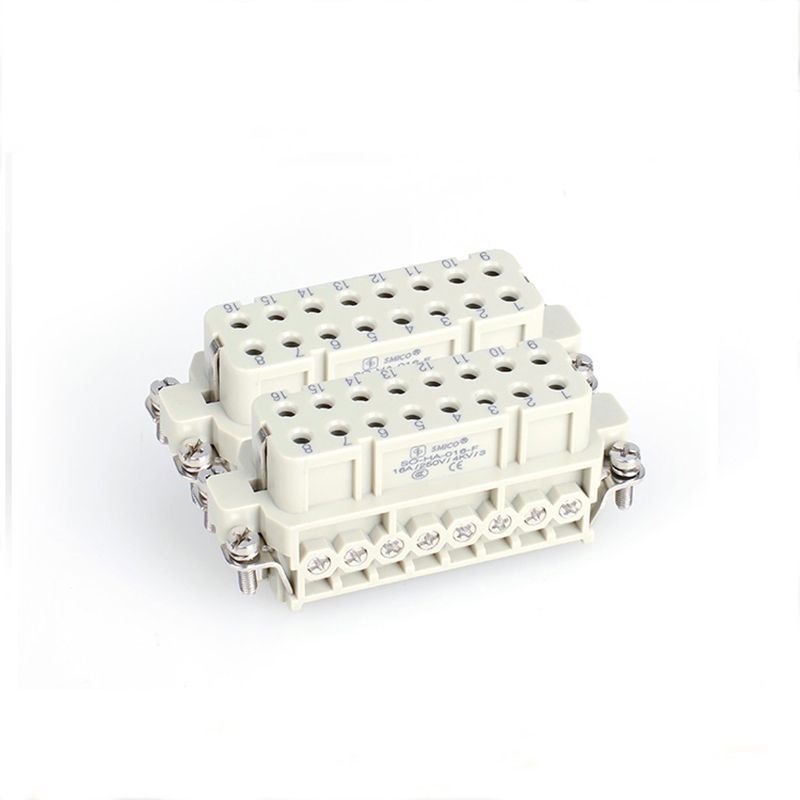

16A 32 Pole Crimp Terminal Heavy Duty Cable Connectors
Heavy Duty Cable Connectors 32pin used for the wire connect to the machines and workbench for the automation and automotive industries
32Poles + PE, 16 A Female Screw Terminal :
| Inserts | Suitable Shell:32AHood/Housing |
| Number of contacts | 32 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 250V |
| ---Rated impulse voltage | 4kV |
| ---Pollution degree | 3 |
| ---or | 16A 230/400V 4kV 2 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 1.0-2.5mm2 |
| ---AWG | 18-14 |
| ---Tightening/Test torque | 0.25N·m |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H32A .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HA-016-M SO-HA-032-M | SO-HA-016-F SO-HA-032-F |
| H | 09200162612 09200162613 | 09200162812 09200162813 |
| ILME | CDAM 16 CDAM 16 N | CDAF 16 CDAF 16 N |
| TE | ||
| LAPP EPIC | 10530000 10542000 | 10531000 10543000 |
| PHOENIX | 1585317 10543000 | 1585320 1585346 |
| MOLEX | ||
| WEIDMULLER | HDC HA 16 MS HDC HA 16 MS 17-32 | HDC HA 16 FS HDC HA 16 FS 17-32 |
| WIELAND | ||
| AMPHENOL |
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 16A 32 Pole Crimp Terminal Heavy Duty Cable Connectors 09200162813 HA-032-F | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
