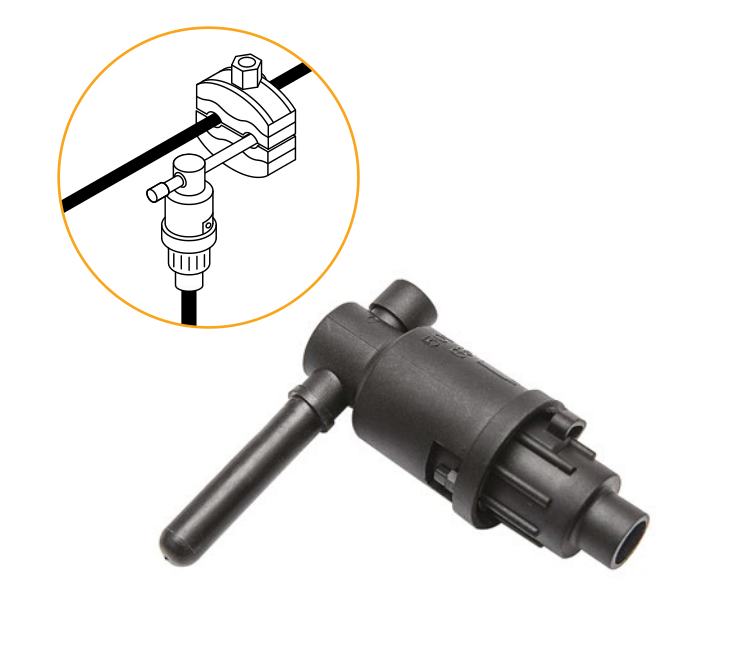

SDPA pre-Insulated sleeve for LV ABC lines with insulated conductor
- Model Number:
- SDPA
- Standard:
- NFC33-021
- Supply Ability:
- 50000/month
- Material:
- Anti UV Thermoplastic & Brass(silver plating)Aluminium
Description
Material：Brass(silver plating)Aluninium
Product property：SDPA is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .
Pre-insulated Fuse holder SDPA used to prevent the circuit break on LV ABC lines, up to 1 KV. Connection and disconnection happened under current load up to 63A.
Pre-insulated Fuse holder SDPA is made of aluminum, which filled with lubricate. Insulation body of connector is made of weather and UV resistant plastic, waterproffed.
These removable circuit breakers are • installed on service lines as a fuse with 4 to 125A and allow disconnection • under load up to 60A. Attached sealing
The connection to the service line of 16 or 25 mm2 is performed by crimping, see page 10 for crimping details.
Specification
| Model | Conductor Range (mm²) | |
| Type | mm² | |
| SDPA | Latcral isolation | - |
| SDPAD | Lateral skinned wire isolation | - |
| SDPAV | Vertical isolation | - |
| SDCC | Single | 6/6 |
| SDCC-R | Single | 25/25 |
| Double | 2X16+1X16 | |
Advantage
- Suitable for 22x58 AD fuse cartridges from 4-125A
- Allows connection and disconnection under load up to 60 A cap allows to temporary protect access to the network side.
- Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
- Two part body with integrated seals easily interlock during closing
- Insulation material made of weather and UV resistant polymer
