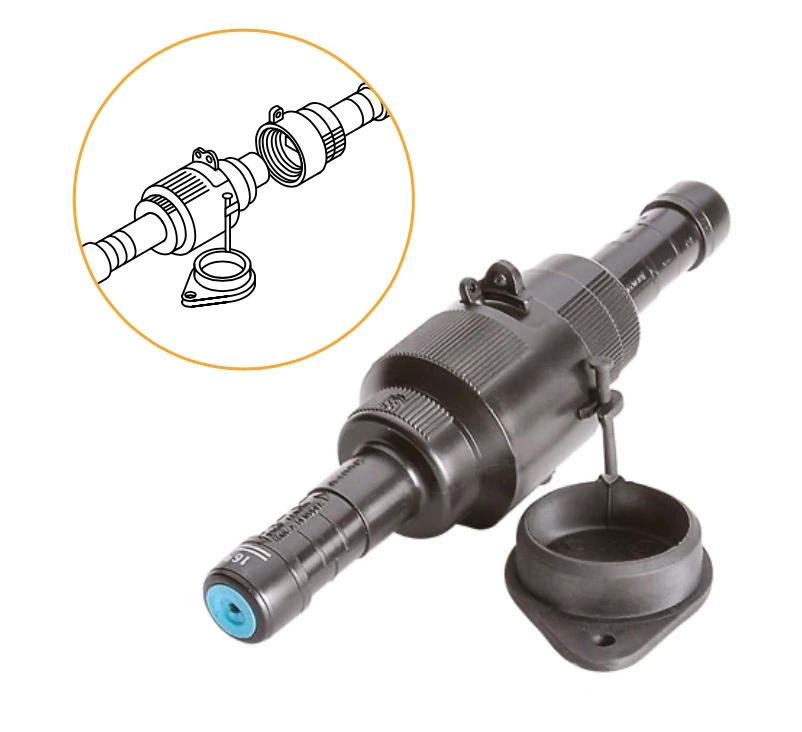

Fuse holder With Cylindrical Fuse Inside Used For Overhead ABC Cable
- Model Number:
- MJPF
- Conductor Range:
- 16-25mm²
- Standard:
- NFC33-021
- Supply Ability:
- 50000/month
- Material:
- Anti UV Thermoplastic & Brass(silver plating)Aluminium
Description
Material：Brass(silver plating)Aluninium
Product property：MJPF is designed to connect the neutral messenger in aerial bundled cable .It is in accordance with NFC33-021 .The sleeve is with full tension .
Pre-insulated Fuse holder MJPF used to prevent the circuit break on LV ABC lines, up to 1 KV. Connection and disconnection happened under current load up to 63A.
Pre-insulated Fuse holder MJPF is made of aluminum, which filled with lubricate. Insulation body of connector is made of weather and UV resistant plastic, waterproffed.
These removable circuit breakers are • installed on service lines as a fuse with 4 to 125A and allow disconnection • under load up to 60A. Attached sealing
The connection to the service line of 16 or 25 mm2 is performed by crimping, see page 10 for crimping details.

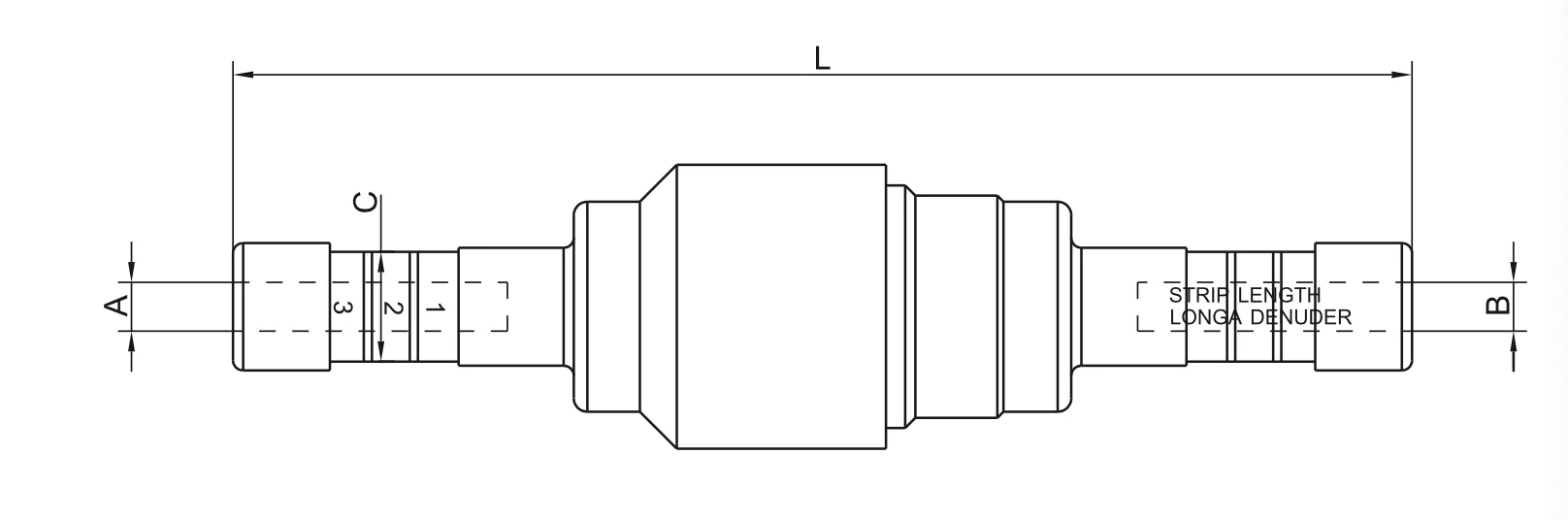

Specification
| Model | Cable Size (mm2) | Plastic Sleeve Diameter (mm) | Length (mm) | |
| A | B | C | L | |
| MJPF 16/16 | 16 | 16 | 16.2 | 174.0 |
| MJPF 16/25 | 16 | 25 | 16.2 | 174.0 |
| MJPF 25/25 | 25 | 25 | 16.2 | 174.0 |
Advantage
-
Suitable for 22x58 AD fuse cartridges from 4-125A
-
Allows connection and disconnection under load up to 60 A cap allows to temporary protect access to the network side.
-
Tested for watertightness at a voltage of 6 kV for 30 min in a waterbath
-
Two part body with integrated seals easily interlock during closing
-
Insulation material made of weather and UV resistant polymer
