WCJB tin plated bolted copper lug for cable and wire terminal connector
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Characteristics:
Material: E-Cu
Surface treatment: Tin plated
Products property: It is fixed by bolts and used in the connections betweem the electrical equipment with cable and the indoor distribution equipment. It can bereused many times.

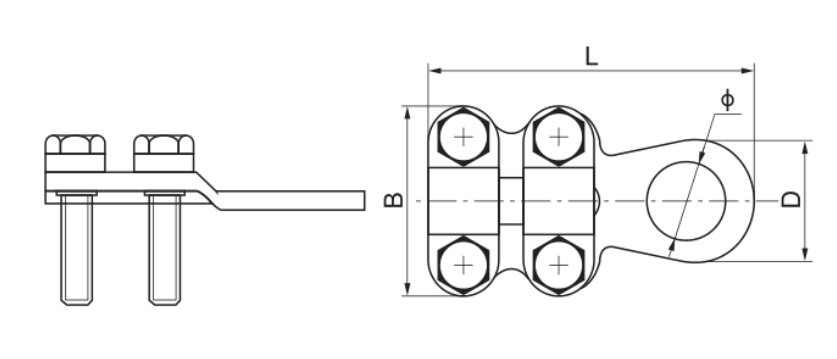

| Modle | Dimension(mm) | |||
| L | d | B | φ | |
| WCJB 6-10-6 | 31 | 15 | 18.5 | 6.5 |
| WCJB 16-25-8 | 46 | 18.5 | 24 | 8.5 |
| WCJB 25-35-10 | 53 | 21.5 | 24 | 10.5 |
| WCJB 50-70-10 | 63 | 23.5 | 31 | 10.5 |
| WCJB 70-95-12 | 69 | 24 | 34 | 13 |
| WCJB 120-150-12 | 76 | 30 | 42 | 13 |
| WCJB 120-150-16 | 76 | 30 | 42 | 17 |
| WCJB 185-240-16 | 85.5 | 34 | 48.5 | 17 |
| WCJB 185-240-20 | 88.5 | 36 | 48.5 | 21 |
| WCJB 240-300-20 | 87 | 34.5 | 50.5 | 21 |
