GTY-1 E-Cu tin-plated cable link power connector for connect copper conductor joint
- Model Number:
- GTY-1
- Conductor Range:
- 1.5-1000mm²
- Standard:
- DIN46267 IEC 61238-1
- Material:
- E-Cu
Description
GTY-1 E-Cu tin-plated cable link power connector for connect copper conductor joint
Description:
Material:E-Cu
Surface treatment:Tin-plated
Product property:It is used to connect copper conductor joint.
Application:
SMICO GTY-1 cable link is used to connect copper conductor joint.

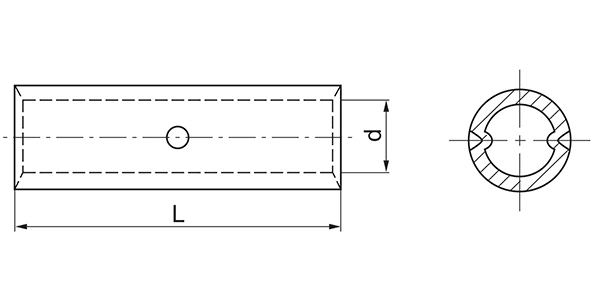

| Modle | Dimensions（mm） | |
| L | d | |
| GTY-1-1.5 | 20 | 1.9 |
| GTY-1-2.5 | 20 | 2.8 |
| GTY-1-4 | 20 | 3.2 |
| GTY-1-6 | 25 | 3.7 |
| GTY-1-10 | 30 | 4.5 |
| GTY-1-16 | 35 | 5.7 |
| GTY-1-25 | 40 | 7.2 |
| GTY-1-35 | 45 | 8.5 |
| GTY-1-50 | 50 | 9.8 |
| GTY-1-70 | 5.5 | 11.5 |
| GTY-1-95 | 60 | 13.7 |
| GTY-1-120 | 65 | 15 |
| GTY-1-150 | 70 | 16.7 |
| GTY-1-185 | 75 | 19.2 |
| GTY-1-240 | 80 | 21 |
| GTY-1-300 | 85 | 24 |
| GTY-1-400 | 90 | 27 |
| GTY-1-500 | 100 | 30 |
| GTY-1-630 | 110 | 35 |
| GTY-1-800 | 150 | 39 |
| GTY-1-1000 | 170 | 44 |
