GTD tin-plated mini 8 microns din joint for installation LV cables
- Model Number:
- GTD
- Conductor Range:
- 6-1000mm²
- Standard:
- DIN46267 IEC 61238-1
- Material:
- E-Cu
Description
Material:E-Cu
Surface treatment:Tin-plated mini 8 microns
Product property:It is in accordance with DIN46267 with markings for correct crimping.To be used for installation LV cables.And its type test is follow IEC 61238-1.
Specification

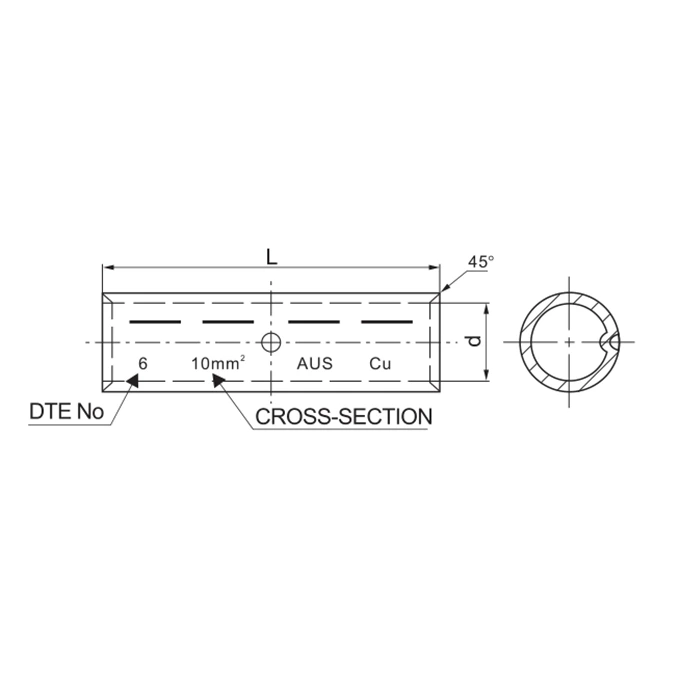

| Modle | Dimensions | |
| L | d | |
| GTD-6 | 30 | 3.8 |
| GTD-10 | 30 | 4.5 |
| GTD-16 | 50 | 5.5 |
| GTD-25 | 50 | 7 |
| GTD-35 | 50 | 8.2 |
| GTD-50 | 56 | 10 |
| GTD-70 | 56 | 11.5 |
| GTD-95 | 70 | 13.5 |
| GTD-120 | 70 | 15.5 |
| GTD-150 | 80 | 17 |
| GTD-185 | 85 | 19 |
| GTD-240 | 90 | 21.5 |
| GTD-300 | 100 | 24.5 |
| GTD-400 | 150 | 27.5 |
| GTD-500 | 160 | 31 |
| GTD-630 | 160 | 34.5 |
| GTD-800 | 200 | 40 |
| GTD-1000 | 200 | 44 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
Location
SMICO GTD din joint To be used for installation LV cables.And its type test is follow IEC 61238-1.
Packaging
Videos
Downloads
| GTD tin-plated mini 8 microns din joint for installation LV cables | Download |
