Tin-plate mini 8 microns E-Cu din cable lug connector AUS
- Model Number:
- AUS
- Material:
- E-Cu
Description
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Specification

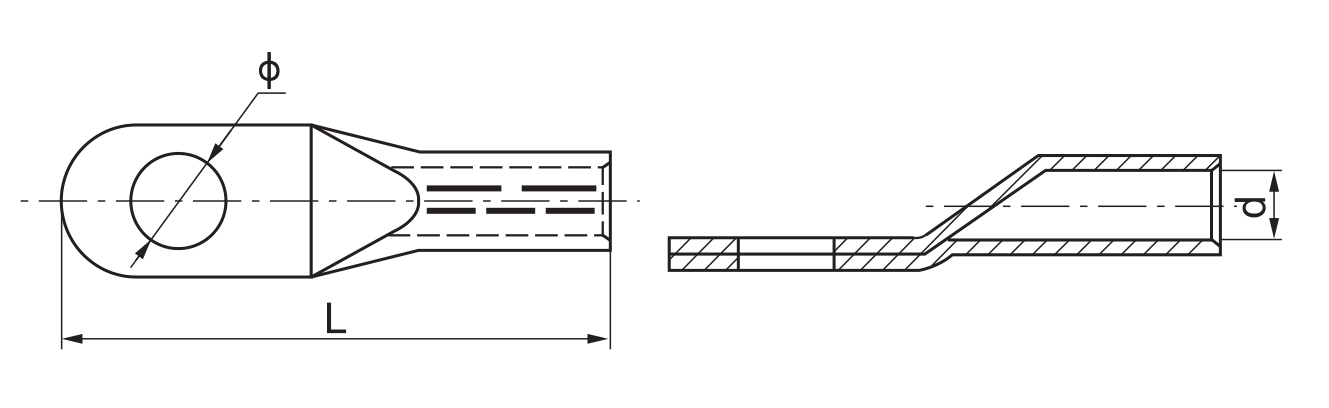

| Modle | Dimensions | ||
| L | d | φ | |
| AUS 6-5 | 30.5 | 30.5 | 5.3 |
| AUS 6-6 | 31.5 | 3.8 | 6.4 |
| AUS 6-8 | 34 | 3.8 | 8.4 |
| AUS 10-5 | 34 | 4.5 | 5.3 |
| AUS 10-6 | 34.5 | 4.5 | 6.4 |
| AUS 10-8 | 37 | 4.5 | 8.4 |
| AUS 16-6 | 43.5 | 5.5 | 6.4 |
| AUS 16-8 | 46 | 5.5 | 8.4 |
| AUS 16-10 | 48 | 5.5 | 10.5 |
| AUS 16-12 | 49 | 5.5 | 13 |
| AUS 25-6 | 45.5 | 7 | 64 |
| AUS 25-8 | 48 | 7 | 8.4 |
| AUS 25-10 | 50 | 7 | 10.5 |
| AUS 25-12 | 51 | 7 | 13 |
| AUS 35-6 | 49.5 | 8.4 | 6.4 |
| AUS 35-8 | 52 | 8.4 | 8.4 |
| AUS 35-10 | 54 | 8.4 | 10.5 |
| AUS 35-12 | 55 | 8.4 | 13 |
| AUS 35-14 | 56.5 | 8.2 | 15 |
| AUS 50-8 | 62 | 10 | 8.4 |
| AUS 50-10 | 64 | 10 | 10.5 |
| AUS 50-12 | 65 | 10 | 13 |
| AUS 50-14 | 66.5 | 10 | 15 |
| AUS 50-16 | 68 | 10 | 17 |
| AUS 70-8 | 65 | 11.5 | 8.4 |
| AUS 70-10 | 67 | 11.5 | 10.5 |
| AUS 70-12 | 68 | 11.5 | 13 |
| AUS 70-14 | 69.5 | 11.5 | 15 |
| AUS 70-16 | 71 | 11.5 | 17 |
| AUS 95-8 | 77 | 13.5 | 8.4 |
| AUS 95-10 | 77 | 13.5 | 10.5 |
| AUS 95-12 | 78 | 13.5 | 13 |
| AUS 95-14 | 79.5 | 13.5 | 15 |
| AUS 95-16 | 81 | 13.5 | 17 |
| AUS 120-10 | 85 | 15.5 | 10.5 |
| AUS 120-12 | 86 | 15.5 | 13 |
| AUS 120-16 | 89 | 15.5 | 17 |
| AUS 120-20 | 91 | 15.5 | 21 |
| AUS 150-10 | 93 | 17 | 10.5 |
| AUS 150-12 | 94 | 17 | 13 |
| AUS 150-14 | 97 | 17 | 15 |
| AUS 150-16 | 97 | 17 | 17 |
| AUS 150-20 | 99 | 17 | 21 |
| AUS 185-10 | 97 | 19 | 10.5 |
| AUS 185-12 | 98 | 19 | 13 |
| AUS 185-14 | 101 | 19 | 15 |
| AUS 185-16 | 101 | 19 | 17 |
| AUS 185-20 | 103 | 19 | 21 |
| AUS 240-12 | 108 | 21.5 | 13 |
| AUS 240-14 | 111 | 21.5 | 15 |
| AUS 240-16 | 111 | 21.5 | 17 |
| AUS 240-20 | 113 | 21.5 | 21 |
| AUS 300-14 | 119 | 24.5 | 15 |
| AUS 300-16 | 119 | 24.5 | 17 |
| AUS 300-20 | 122 | 24.5 | 21 |
| AUS 400-14 | 140 | 27.5 | 15 |
| AUS 400-16 | 140 | 27.5 | 17 |
| AUS 400-20 | 140 | 27.5 | 21 |
| AUS 500-16 | 150 | 31 | 17 |
| AUS 500-20 | 150 | 31 | 21 |
| AUS 630-16 | 160 | 34.5 | 17 |
| AUS 630-20 | 160 | 34.5 | 21 |
| AUS 800-16 | 195 | 40 | 17 |
| AUS 800-20 | 195 | 40 | 21 |
| AUS 1000-16 | 195 | 44 | 17 |
| AUS 1000-20 | 195 | 44 | 21 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
