E-Cu bright metal cable lug connectors(DT)
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.

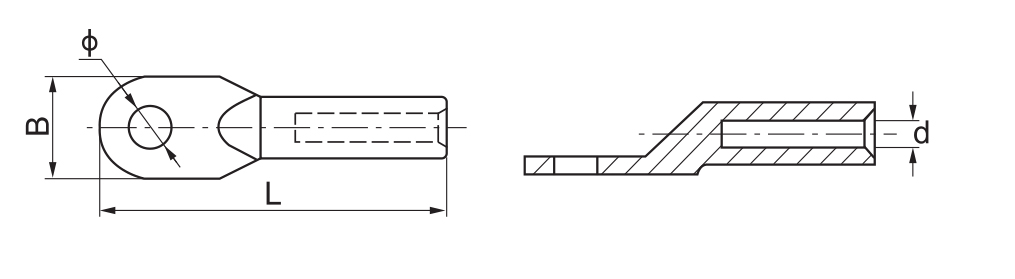

| Modle | Dimensions | |||
| L | d | B | φ | |
| DT 10-6 | 59 | 4.7 | 13.5 | 6.5 |
| DT 16-8 | 67 | 5.7 | 16 | 8.5 |
| DT 25-8 | 70 | 7.2 | 17.5 | 8.5 |
| DT 35-10 | 78 | 8.5 | 20 | 10.5 |
| DT 50-10 | 87 | 9.7 | 23 | 10.5 |
| DT 70-12 | 95 | 11.5 | 26 | 12.5 |
| DT 95-12 | 105 | 13.5 | 28 | 12.5 |
| DT 120-14 | 112 | 15 | 31 | 14.5 |
| DT 150-14 | 116 | 16.5 | 35 | 14.5 |
| DT 185-16 | 125 | 18.5 | 37.5 | 17 |
| DT 240-16 | 134 | 21 | 40 | 17 |
| DT 300-18 | 150 | 23.5 | 44.5 | 18.5 |
| DT 400-20 | 160 | 26.5 | 50 | 21 |
