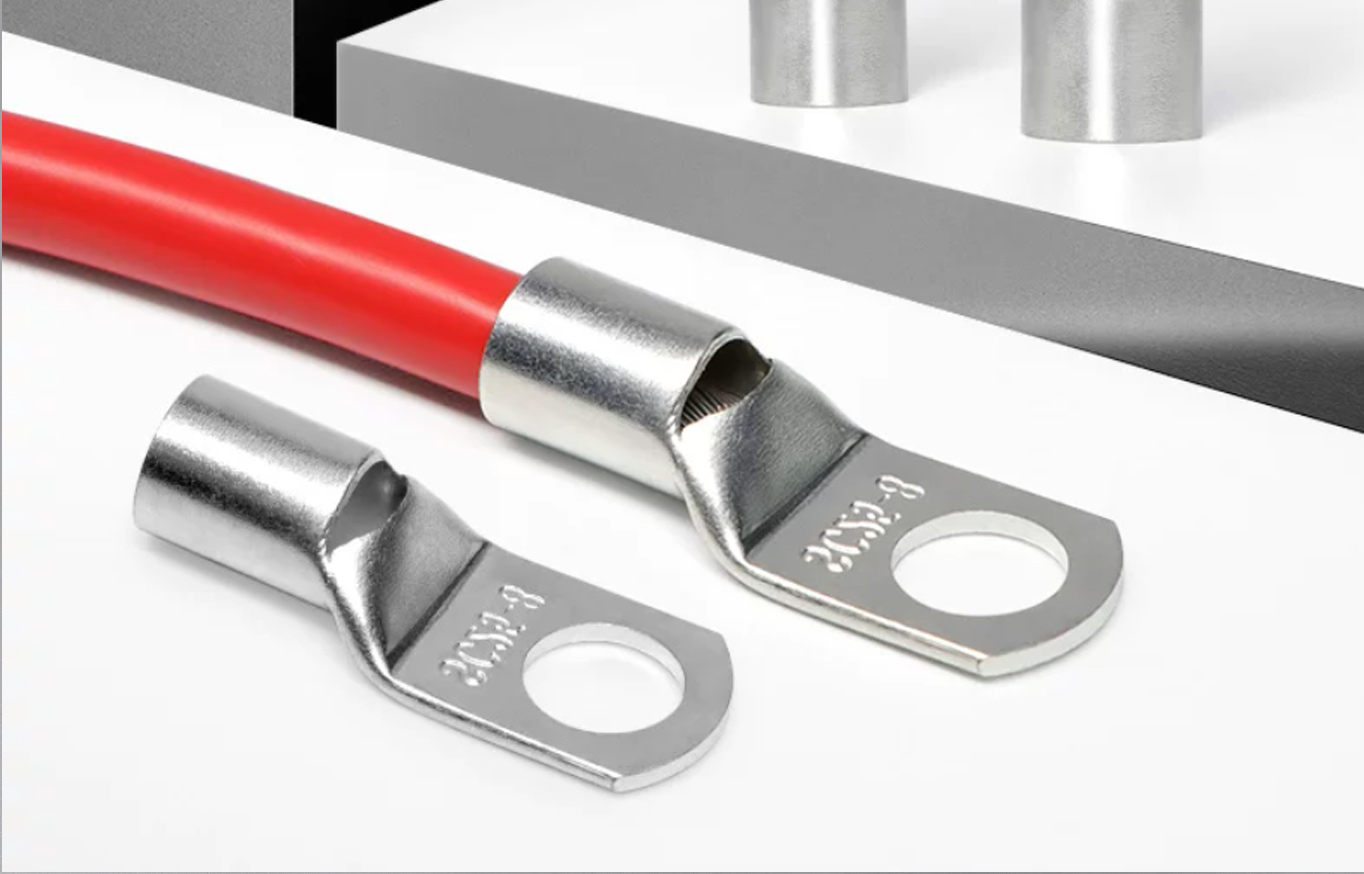

JM(JGA) E-Cu tin-plated cable lug for connect the copper conductor end
- Product Name:
- tin-plated cable lug
- Model Number:
- JM(JGA)
- Conductor Range:
- 6-1000
- Brand:
- SMICO
- Standard:
- IEC, ANSI, GB
- Supply Ability:
- 10000000
- Packaging Details:
- Export carton
- Material:
- E-Cu
- Surface:
- Tin-plated
Description
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Specification

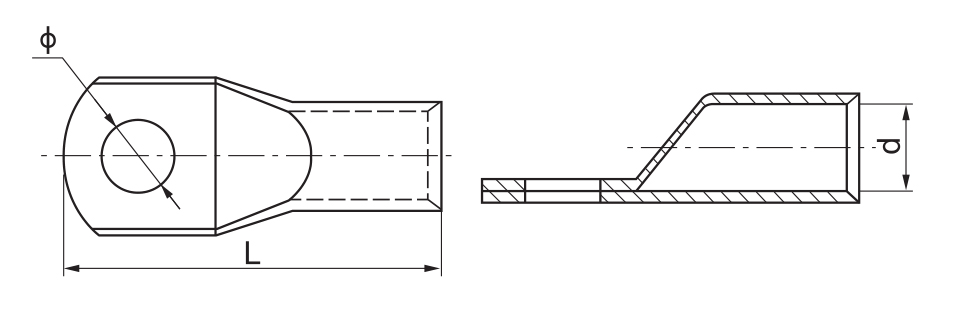

| Type | Dimensions(mm) | ||
| L | d | Φ | |
| JM(JGAY) 6-5 | 25 | 3.7 | 5.2 |
| JM(JGA) 6-6 | 25 | 3.7 | 6.5 |
| JM(JGA) 6-8 | 25 | 3.7 | 8.4 |
| JM(JGA) 10-5 | 26 | 4.5 | 5.3 |
| JM(JGA) 10-6 | 26 | 4.5 | 6.5 |
| JM(JGA) 10-8 | 26 | 4.5 | 8.4 |
| JM(JGA) 10-10 | 28 | 4.5 | 10.3 |
| JM(JGA) 16-6 | 28.5 | 5.7 | 6.5 |
| JM(JGA) 16-8 | 30.5 | 5.7 | 8.4 |
| JM(JGA) 16-10 | 31 | 5.7 | 10.5 |
| JM(JGA) 25-6 | 35 | 7.2 | 6.5 |
| JM(JGA) 25-8 | 35 | 7.2 | 8.4 |
| JM(JGA) 25-10 | 35 | 7.2 | 10.5 |
| JM(JGA) 35-6 | 37.5 | 8.5 | 6.5 |
| JM(JGA) 35-8 | 38 | 8.5 | 8.5 |
| JM(JGA) 35-10 | 39 | 8.5 | 10.5 |
| JM(JGA) 35-12 | 39 | 8.5 | 13 |
| JM(JGA) 50-6 | 43.5 | 9.8 | 6.5 |
| JM(JGA) 50-8 | 45 | 9.8 | 8.5 |
| JM(JGA) 50-10 | 45 | 9.8 | 10.5 |
| JM(JGA) 50-12 | 45 | 9.8 | 13 |
| JM(JGA) 70-8 | 50 | 11.5 | 8.5 |
| JM(JGA) 70-10 | 51.5 | 11.5 | 10.5 |
| JM(JGA) 70-12 | 51.5 | 11.5 | 13 |
| JM(JGA) 95-8 | 58.5 | 13.7 | 8.5 |
| JM(JGA) 95-10 | 58.5 | 13.7 | 10.5 |
| JM(JGA) 95-12 | 58.5 | 13.7 | 13 |
| JM(JGA) 95-14 | 59 | 13.7 | 15 |
| JM(JGA) 120-10 | 63.5 | 15 | 10.5 |
| JM(JGA) 120-12 | 65 | 15 | 13 |
| JM(JGA) 120-14 | 65 | 15 | 14.7 |
| JM(JGA) 120-16 | 66.5 | 15 | 17 |
| JM(JGA) 150-10 | 73 | 16.7 | 10.5 |
| JM(JGA) 150-12 | 73 | 16.7 | 13 |
| JM(JGA) 150-14 | 73 | 16.7 | 14.7 |
| JM(JGA) 150-16 | 73 | 16.7 | 17 |
| JM(JGA) 185-10 | 80 | 19.2 | 10.5 |
| JM(JGA) 185-12 | 80 | 19.2 | 13 |
| JM(JGA) 185-14 | 80 | 19.2 | 14.7 |
| JM(JGA) 185-16 | 80 | 19.2 | 17 |
| JM(JGA) 185-20 | 81.5 | 19.2 | 21 |
| JM(JGA) 240-12 | 92.5 | 21 | 13 |
| JM(JGA) 240-14 | 92.5 | 21 | 14.7 |
| JM(JGA) 240-16 | 92.5 | 21 | 17 |
| JM(JGA) 240-20 | 94.5 | 21 | 21 |
| JM(JGA) 300-12 | 102 | 24 | 13 |
| JM(JGA) 300-14 | 102 | 24 | 14.7 |
| JM(JGA) 300-16 | 102 | 24 | 17 |
| JM(JGA) 300-20 | 105 | 24 | 21 |
| JM(JGA) 400-16 | 114 | 27 | 17 |
| JM(JGA) 400-20 | 116 | 27 | 21 |
| JM(JGA) 500-16 | 127 | 30 | 17 |
| JM(JGA) 500-20 | 127 | 30 | 21 |
| JM(JGA) 630-16 | 140 | 35 | 17 |
| JM(JGA) 630-20 | 140 | 35 | 21 |
| JM(JGA) 630-22 | 140 | 35 | 23 |
| JM(JGA) 800-22 | 170 | 39 | 23 |
| JM(JGA) 1000-22 | 200 | 44 | 23 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
