JM(JGY) E-Cu tin-plated cable and wire terminal
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
|

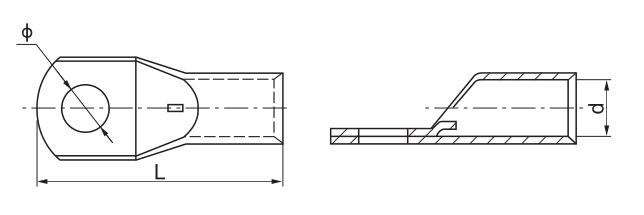

Type
|
Dimensions(mm)
|
|
L
|
d
|
Φ
|
|
JM(JGY) 6-5
|
25
|
3.7
|
5.2
|
| JM(JGY) 6-6 |
25 |
3.7 |
6.5
|
| JM(JGY) 6-8 |
25
|
3.7
|
8.4 |
| JM(JGY) 10-5 |
26
|
4.5 |
5.3
|
| JM(JGY) 10-6 |
26
|
4.5
|
6.5
|
| JM(JGY) 10-8 |
26
|
4.5
|
8.4
|
|
JM(JGY) 10-10
|
28
|
4.5
|
10.3
|
| JM(JGY) 16-6 |
28.5
|
5.7 |
6.5
|
| JM(JGY) 16-8 |
30.5
|
5.7
|
8.4
|
| JM(JGY) 16-10 |
31
|
5.7
|
10.5
|
| JM(JGY) 25-6 |
35
|
5.7
|
10.5
|
| JM(JGY) 25-8 |
35
|
7.2 |
8.4
|
| JM(JGY) 25-10 |
35
|
7.2
|
10.5
|
| JM(JGY) 35-6 |
37.5
|
8.5
|
6.5
|
| JM(JGY) 35-8 |
38
|
8.5
|
8.5 |
| JM(JGY) 35-10 |
39
|
8.5
|
10.5
|
| JM(JGY) 35-12 |
39
|
8.5
|
13
|
| JM(JGY) 50-6 |
43.5
|
9.8 |
6.5
|
| JM(JGY) 50-8 |
45
|
9.8
|
8.5
|
| JM(JGY) 50-10 |
45
|
9.8
|
10.5 |
| JM(JGY) 50-12 |
45
|
9.8
|
13
|
| JM(JGY) 50-14 |
45
|
9.8
|
14.5
|
| JM(JGY) 70-8 |
50
|
11.5
|
8.5
|
| JM(JGY) 70-10 |
51.5
|
11.5
|
10.5
|
| JM(JGY) 70-12 |
51.5 |
11.5
|
13
|
| JM(JGY) 95-8 |
58.5
|
13.7
|
8.5
|
| JM(JGY) 95-10 |
58.5
|
13.7
|
10.5
|
| JM(JGY) 95-12 |
58.5 |
13.7
|
13
|
| JM(JGY) 95-14 |
59
|
13.7 |
15
|
| JM(JGY) 120-10 |
63.5
|
15
|
10.5
|
| JM(JGY) 120-12 |
65
|
15
|
13
|
| JM(JGY) 120-14 |
65
|
15
|
14.7
|
| JM(JGY) 120-16 |
66.5
|
15
|
17
|
| JM(JGY) 150-10 |
73
|
16.7
|
10.5
|
| JM(JGY) 150-12 |
73 |
16.7 |
13
|
| JM(JGY) 150-14 |
73 |
16.7 |
14.7
|
| JM(JGY) 150-16 |
73 |
16.7 |
17
|
| JM(JGY) 185-10 |
80
|
19.2
|
10.5
|
| JM(JGY) 185-12 |
80 |
19.2 |
13
|
| JM(JGY) 185-14 |
80 |
19.2 |
14.7
|
| JM(JGY) 185-16 |
80 |
19.2 |
17
|
| JM(JGY) 240-12 |
92.5
|
21
|
13
|
| JM(JGY) 240-14 |
92.5 |
21 |
14.7
|
| JM(JGY) 240-16 |
92.5 |
21 |
17
|
| JM(JGY) 240-20 |
92.5 |
21 |
21
|
| JM(JGY) 300-12 |
102
|
24
|
13
|
| JM(JGY) 300-16 |
102
|
24
|
17
|
| JM(JGY) 300-20 |
102 |
24
|
21
|
| JM(JGY) 400-16 |
114
|
27 |
17
|
| JM(JGY) 400-20 |
116
|
27
|
21 |
| JM(JGY) 500*16 |
127
|
30
|
17
|
| JM(JGY) 500-20 |
127 |
30 |
21
|
| JM(JGY) 630-16 |
140
|
35
|
17
|
| JM(JGY) 630-20 |
140
|
35
|
21
|
| JM(JGY) 630-22 |
140
|
35
|
23
|
| JM(JGY) 800-22 |
170
|
39
|
23
|
| JM(JGY) 1000-22 |
200 |
44
|
23 |
|
