E-Cu AL bright bimetal lug cable and wire terminals connector（DTL)
- Model Number:
- DTL
- Material:
- E-Cu AI-99.6% Bright
Description
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Specification

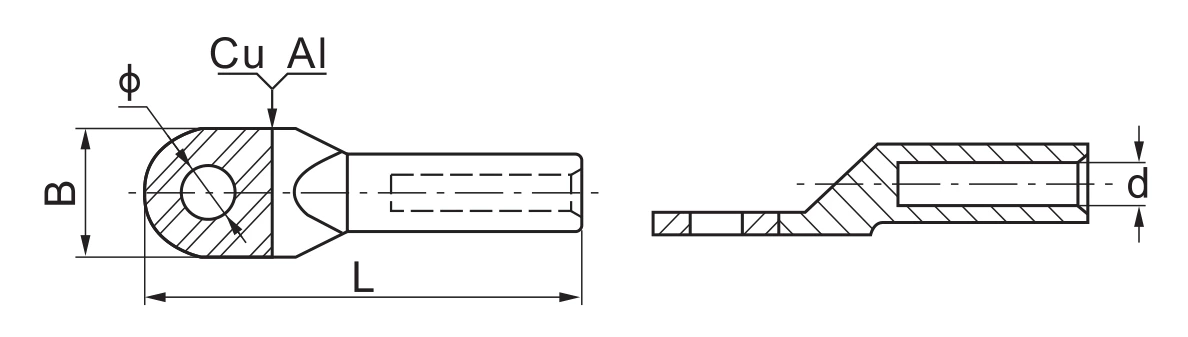

| Modle | Dimensions | |||
| L | d | B | φ | |
| DTL 10-6 | 62 | 4.8 | 13.5 | 6.5 |
| DTL 16-8 | 70 | 5.8 | 16 | 8.5 |
| DTL 25-8 | 75 | 7.2 | 17.5 | 8.5 |
| DTL 35-10 | 85 | 8.5 | 20 | 10.5 |
| DTL 50-10 | 90 | 9.7 | 23 | 10.5 |
| DTL 70-12 | 102 | 11.5 | 26 | 12.5 |
| DTL 95-12 | 112 | 13.5 | 28 | 12.5 |
| DTL 120-14 | 120 | 15 | 31 | 14.5 |
| DTL 150-14 | 125 | 16.5 | 35 | 14.5 |
| DTL 185-16 | 133 | 18.5 | 37.5 | 17 |
| DTL 240-16 | 140 | 21 | 40 | 17 |
| DTL 300-18 | 160 | 23.5 | 44.5 | 18.5 |
| DTL 400-20 | 170 | 27 | 50 | 21 |
| DTL 500-20 | 225 | 29 | 605 | 21 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
