Description
Material:A1-99.5%
Surface treatment:Bright
Product property:It is full-tension aluminium sleeve with marking for vorrect crimping the barrel capped os filled with joint compound to avoid oxidization it is used for AAC or AAAC conductors
Specification

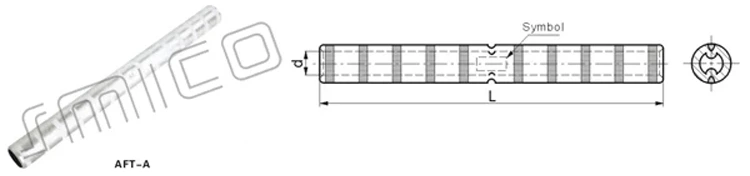

| Type | AAC conductor name | AAAC conductor name | Dimensions (mm) | ||
| L | d | ||||
| AFT36A | 7/2.25 | jupiter | boron | 165 | 7.90 |
| 7/2.50 | leo | chlorine | 165 | 7.90 | |
| AFT44A | 7/2.75 | leonids | chromium | 165 | 9.60 |
| 7/3.00 | libra | fluorine | 165 | 9.6 | |
| AFT50A | 7/3.75 | mars | helium | 205 | 12.60 |
| AFT58A | 7/4.50 | mercury | hydrogen | 205 | 14.60 |
| AFT61A | 7/4.75 | moon | lodine | 240 | 15.00 |
| AFT68A | 19/3.25 | neptune | kypton | 280 | 17.00 |
| AFT80A | 19/3.50 | orion | lutetium | 320 | 20.20 |
| 19/3.75 | pluto | neon | 320 | 20.20 | |
| AFT94A | 37/3.00 | staturn | nitrogen | 380 | 24.59 |
| 37/3.25 | sirius | --- | 380 | 24.59 | |
| 19/4.75 | taurns | oxygen | 380 | 24.59 | |
| AFT114A | 37/3.75 | triton | --- | 710 | 29.00 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
