Description
Material:E-Cu
Surface treatment:Tin-plated mini 5 microns
Product property:It is a barrier type.To be used in the connection between different diameter of copper conductors.
Specification

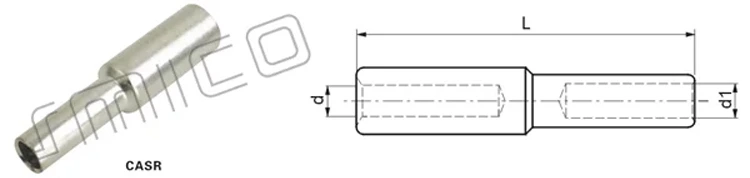

| Type | Dimensions(mm) | ||
| L | d | d1 | |
| CASR6/4 | 30 | 4 | 3 |
| CASR10/6 | 30 | 4.5 | 4 |
| CASR16/6 | 40 | 5.5 | 4 |
| CASR16/10 | 40 | 5.5 | 4.5 |
| CASR25/6 | 40 | 7.5 | 4 |
| CASR25/10 | 40 | 7.5 | 4.5 |
| CASR25/16 | 50 | 7.5 | 5.5 |
| CASR35/10 | 40 | 8.5 | 4.5 |
| CASR35/16 | 55 | 8.5 | 5.5 |
| CASR35/25 | 60 | 8.5 | 7.5 |
| CASR50/10 | 45 | 9.5 | 4.5 |
| CASR50/16 | 55 | 9.5 | 5.5 |
| CASR50/25 | 55 | 9.5 | 7.5 |
| CASR50/35 | 60 | 9.5 | 8.5 |
| CASR70/16 | 60 | 11.5 | 5.5 |
| CASR70/25 | 60 | 11.5 | 7.5 |
| CASR70/35 | 65 | 11.5 | 8.5 |
| CASR70/50 | 65 | 11.5 | 9.5 |
| CASR95/25 | 65 | 13.5 | 7.5 |
| CASR95/35 | 65 | 13.5 | 8.5 |
| CASR95/50 | 70 | 13.5 | 9.5 |
| CASR95/70 | 70 | 13.5 | 11.5 |
| CASR120/35 | 70 | 15.5 | 8.5 |
| CASR120/50 | 70 | 15.5 | 9.5 |
| CASR120/70 | 75 | 15.5 | 11.5 |
| CASR120/95 | 75 | 15.5 | 13.5 |
| CASR150/50 | 70 | 16.5 | 9.5 |
| CASR150/70 | 75 | 16.5 | 11.5 |
| CASR150/95 | 80 | 16.5 | 13.5 |
| CASR150/120 | 80 | 16.5 | 15.5 |
| CASR185/70 | 75 | 18.5 | 11.5 |
| CASR185/95 | 80 | 18.5 | 13.5 |
| CASR185/120 | 85 | 18.5 | 15.5 |
| CASR185/150 | 85 | 18.5 | 16.5 |
| CASR240/95 | 85 | 21.5 | 13.5 |
| CASR240/120 | 90 | 21.5 | 15.5 |
| CASR240/150 | 90 | 21.5 | 16.5 |
| CASR240/185 | 95 | 21.5 | 18.5 |
| CASR300/120 | 95 | 23.5 | 15.5 |
| CASR300/150 | 95 | 23.5 | 16.5 |
| CASR300/185 | 100 | 23.5 | 18.5 |
| CASR300/240 | 105 | 23.5 | 21.5 |
| CASR400/150 | 110 | 26.5 | 16.5 |
| CASR400/185 | 110 | 26.5 | 18.5 |
| CASR400/240 | 125 | 26.5 | 21.5 |
| CASR400/300 | 125 | 26.5 | 23.5 |
| CASR500/185 | 115 | 30 | 18.5 |
| CASR500/240 | 120 | 30 | 21.5 |
| CASR500/300 | 125 | 30 | 23.5 |
| CASR500/400 | 140 | 30 | 26.5 |
| CASR630/240 | 120 | 34 | 21.5 |
| CASR630/300 | 125 | 34 | 23.5 |
| CASR630/400 | 140 | 34 | 26.5 |
| CASR630/500 | 140 | 34 | 30 |
| CASR800/400 | 150 | 39.5 | 26.5 |
| CASR800/500 | 150 | 39.5 | 30 |
| CASR800/630 | 150 | 39.5 | 34 |
| CASR1000/500 | 150 | 44 | 30 |
| CASR1000/630 | 150 | 44 | 34 |
| CASR1000/800 | 165 | 44 | 39.5 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
