GTLZ Copper Aluminum and copper Bimetal Crimp Lug Terminal Connectors

GTLZ Copper Aluminum and copper Bimetal Crimp Lug Terminal Connectors

Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:It is used for non-tesion aluminium connection in copper clamp with marking for correct crimping friction welding well done the aluminium barrel capped is filled with joint compound to avoid oxidization.

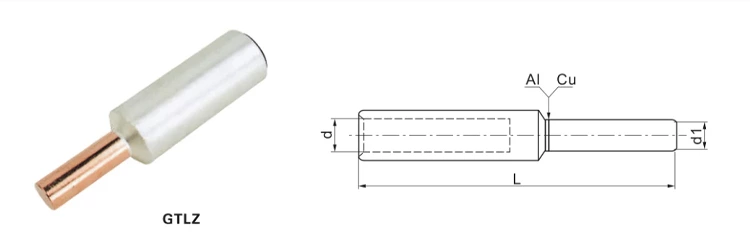

Type Dimensions(mm)
L d d1
GTLZ-25 58 6.8 6
GTLZ-35 71 8 7
GTLZ-50 74 10 8
GTLZ-70 87 11.5 10
GTLZ-95 91 13.2 12
GTLZ-120 97 15 12
GTLZ-150 108 16.5 12
GTLZ-185 116 18.5 14
GTLZ-240 128 21.5 16
GTLZ-300 131 23.3 18
