Description

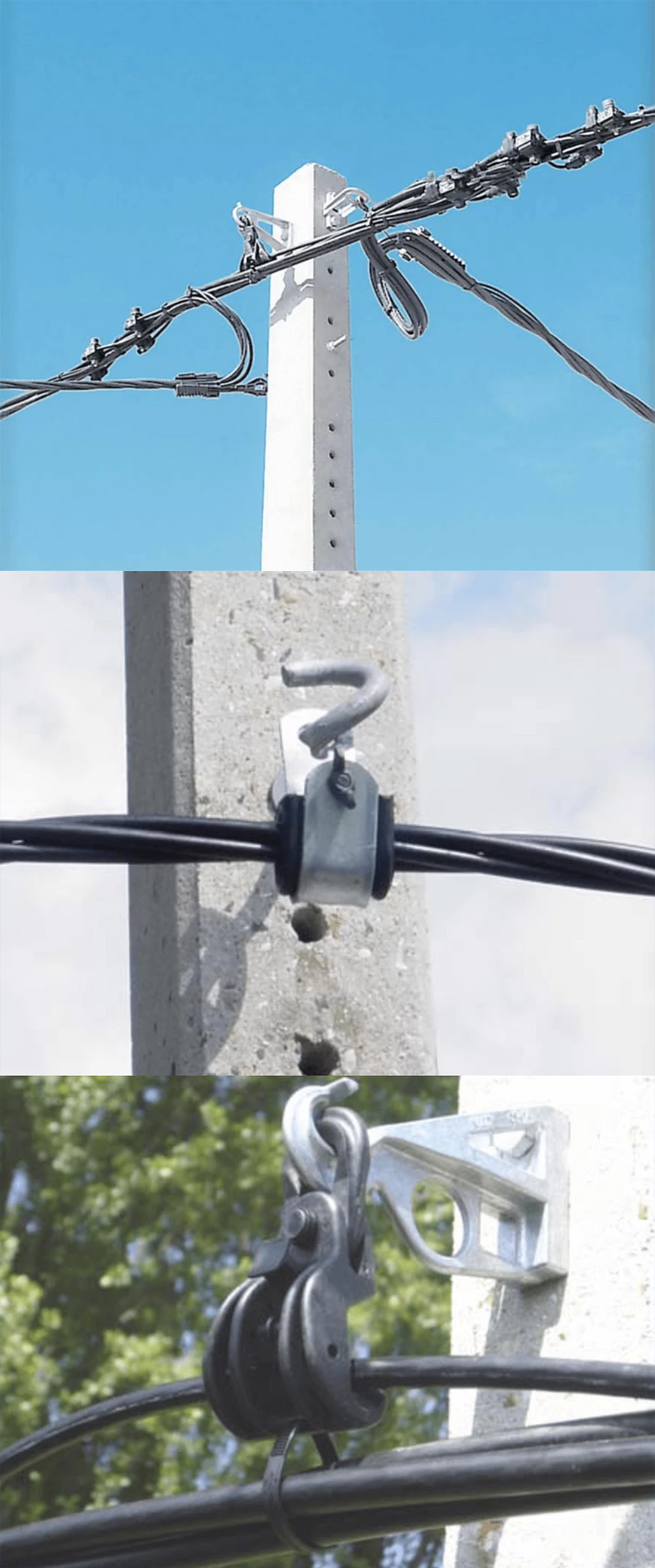

Suspension clamps for LV-ABC lines with insulated neutral messenger
The suspension clamp is designed for the installation and suspension of four core self-supporting
Specification
| Model | Conductor Range (mm2) |
| SM94 | 16-95 |
| SM95 | 16-95 |
| 1.1A | 16-95 |
| 1.1B | 16-95 |
| ES54-14 | 16-95 |
| PS1500 | 16-95 |
| SHC-1 | 4×(16-35) |
| SHC-2 | 4×(50-120) |
| SHC-3 | 4×(50-70) |
| SHC-4 | 4×(50-70) |
| SHC-5 | 4×(70-95) |
| SHC-6 | 4×(70-95) |
Advantage
Suspension clamp PS
-
Can be installed in straight direction and in line deviation angle up to 30°
-
Tool free installation, equipped with wing nut
-
Exceeds requirements according to ESI 43-14 and VDE 0211
-
Made of weather and UV-light resistant elastomer and hot dip galvanized steel
-
Fits to hooks and pigtails up to a diameter of 21 mm
-
Operating load 2.5 kN
Location
Packaging
Videos
Downloads
| Suspension clamps for self supporting LV-ABC lines | Download |
