Description

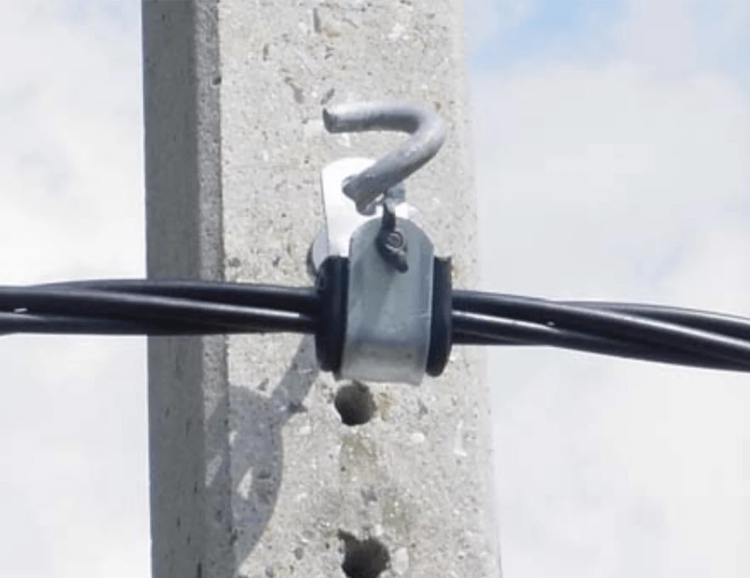

The suspension clamp is designed for the
installation and suspension of four core self-supporting
LV-ABC cables to poles or walls.
• The clamp is made of hot-dip galvanized steel and
weather resistant material
• Equipped with shear head bolt. The clamp can be easily
installed without damage to the cable insulation
• No loose parts
• Standard: EN 50483-2
Specification
| Model | Conductor Range (mm2) |
| SM94 | 16-95 |
| SM95 | 16-95 |
| 1.1A | 16-95 |
| 1.1B | 16-95 |
| ES54-14 | 16-95 |
| PS1500 | 16-95 |
| SHC-1 | 4×(16-35) |
| SHC-2 | 4×(50-120) |
| SHC-3 | 4×(50-70) |
| SHC-4 | 4×(50-70) |
| SHC-5 | 4×(70-95) |
| SHC-6 | 4×(70-95) |
| SHC-7 | 4x(10-25) |
Advantage
- Toolfree installation
- No loosable parts
- Suspension Clamp and link made of polymer giving an additional insulation between the cable and the pole.
- Exceeds requirements according to NF C 33 040, EN50483
- Suspension Clamp and movable link made of weather and UV resistant glass fibre reinforced polymer
- Universal fixing of bracket by 1 bolt M16 or stainless steel strap of 20x0,7 mm.
- Bracket made of corrosion resistant
Location
Packaging
Videos
Downloads
| SHC-7 ADSS suspension clamp | Download |
