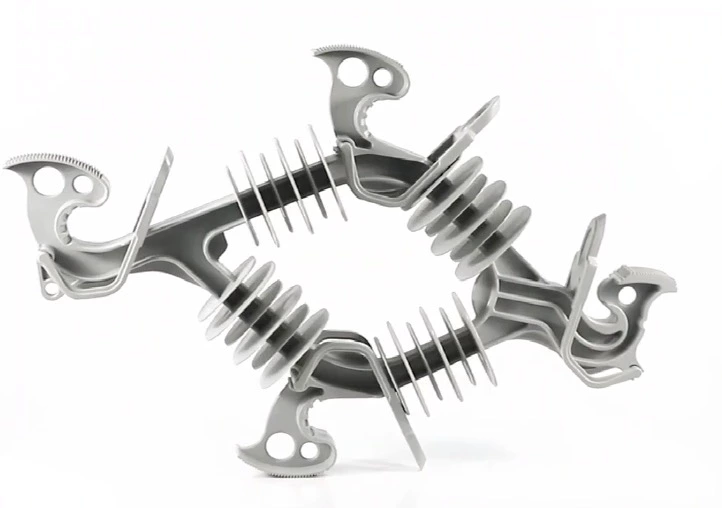

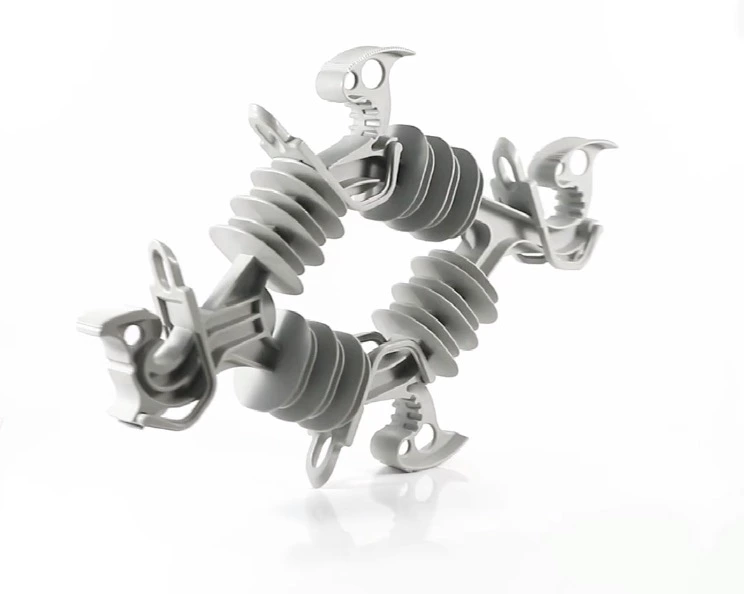

HDPE Polymer Cable Spacer
SMICO HDPE Cable Spacers are produced of a proprietary track-resistant high density polyethylene. They are designed for use on overhead electrical distribution system, both compacted and conventional aerial networks, from 15kV up to 35kV. Three-phase HDPE Cable Spacers support, separate and clamp the conductors in a triangular configuration.
...- Model Number:
- HDPE ECR-35KV
- Conductor Range:
- 11-42mm OD
- Standard:
- ANSI
- Material:
- HDPE
- Voltage:
- 35KV
HDPE Polymer Cable Spacer Systems for Overhead Power Distribution Applications:
The HDPE Polymer Cable Spacer shall be made of track-resistant high-density polyethylene which suitable for using in the tropical climatic area and have passed electrical and mechanical test according to ANSI C29 standards. Each cable spacer shall be furnished with snap ties or other ties for securing cables. The snap ties shall be made of UV resistant polyurethane material which suitable for using in the tropical climatic area and have passed properties test in accordance with ASTM standards.
HDPE Polymer Cable Spacer Features:
-
High Chemical Resistance.
-
Unbreakable and Light Weight.
-
Easiest Handling and Transportation.
-
Low Initial Cost.
-
Long Service Life.
-
Durable Metal Treads.
-
Water Repelling Surface.
-
High resistance to traction, flexion and impact.
Technical characteristics
Conductor Spacing Phase to Earth Minimum(mm) | 331.5 |
Conductor Spacing Phase to Phase Minimum(mm) | 335 |
Phase Conductor Diameter Range(mm) | 11-40 |
Messanger Cable Diamter Range(mm) | 6.35-19.05 |
Creepage Distance Minimum (mm) | 715 |
Basic Insulation Level (BIL) (KV) | 180 |
Wet Voltage Withstand (KV) | 70 |
Wet Flashover Voltaee (KV) | 80 |
