15kV Modified HDPE Polyethylene Cable Spacer

Model Number:
SO-HW-15CS
Voltage:
15kV
15kV Modified HDPE Polyethylene Cable Spacer

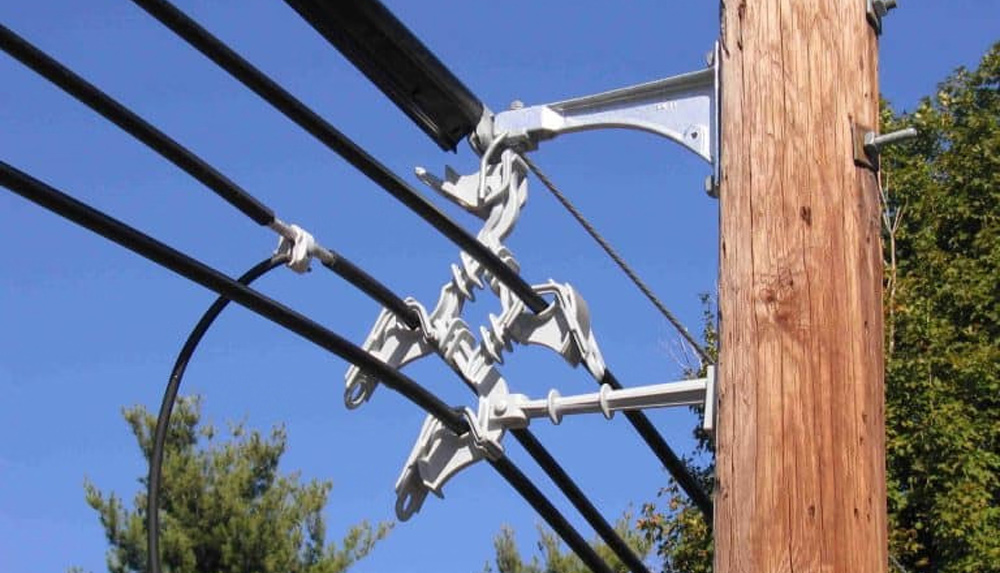

Modified polyethylene(HDPE) cable spacer is a new material for Distribution Line Cable. This will improve the system in terms of safety and reliability of the HV overhead distribution network in areas where power outages are common due to falling tree or branch contact, as well as in high fire risk areas and at river crossings.Its unique design allows its conductors to have a safe distance from each other without interacting with each other.

THE MODIFIED POLYETHYLENE(HDPE) CABLE SPACER HAS THE FOLLOWING CHARACTERISTICS:

1. Excellent track-resistant.

2. High chemical resistance, High Resistance to Shock, Impact.

3. Unbreakable and light weight.

4. Easy Installation, Transportation and Storage.

5. Low cost of operation and maintenance.

6. Long service life.

7. Water repelling surface.

8. Reduced Tree Trimmings.

9. Lighting Protection.

10. Less Damaged cause by animals.

15kv Voltage class 15kV
Low-Frequency flashover voitage:-Dry 60kV
Low-Frequencyflashover voltage:-Wet 48kV
Low-Frequency withstand voltage:-Dry 48kV
Low-Frequencywithstandvoltage:-Wet 38kV
Critical Impulse Flashover voltage(-Pos) 125kV
Critical Impulse Flashover voltage(-Neg) 145kV
Creepage Distance 295mm
Ultimate mechanical strength 4.5kN
