Description
Product material: 201 material, 304 material, 316 material
Applicable tools: C001, LQA, C075, J020, CT04, G402
Working temperature: white steel -80°C~538°C
length: 300 the above
Product features: the design of tooth-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt, and binds objects firmly
Specification
| width/mm | 6.4 | 10 | 12.7 | 16 | 19 | 25 | 32 |
| Baseband thickness/mm | 0.4 | 0.4 | 0.7-1.0 | 0.7-1.0 | 0.7-1.0 | 1 | 1 |
| Applicable tools | J020 CT04 | J020 C075 CT04 | LQA C075 C001 | LQA C075 C001 | LQA C075 C001 | G402 | G402 |
| Item No | width | length | thickness | Maximum bundle diameter | Minimum bundle diameter | Minimum pull | Recommended Installation tools | ||||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | IBS | ||||
| CX-6.4*500 | 6.4 | 0.25 | 500 | 19.69 | 0.4 0.5 0.6 |
0.02 | 143 | 5.63 | 12.7 | 0.50 | 2800 | 621 | J020 CT04 |
||
| CX-6.4*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-6.4*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-6.4*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-6.4*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-6.4*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-6.4*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-6.4*1500 | 1500 | 59.05 | 410 | 16.14 | |||||||||||
| CX-6.4*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-10*500 | 10 | 0.37 | 500 | 19.69 | 0.4 0.5 0.7 |
0.02 0.02 0.03 |
143 | 5.63 | 19.05 | 0.75 | 4400 | 976 | J020 CT04 C075 |
||
| CX-10*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-10*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-10*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-10*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-10*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-10*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-10*1500 | 1500 | 59.05 | 410 | 16.14 | |||||||||||
| CX-10*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-12.7*500 | 12.7 | 0.49 | 500 | 19.69 | 0.7 0.76 1.0 |
0.03 0.03 0.04 |
143 | 5.63 | 25.4 | 1.00 | 8100 | 1798 | LQA C075 CT04 |
||
| CX-12.7*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-12.7*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-12.7*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-12.7*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-12.7*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-12.7*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-12.7*1500 | 1500 | 59.05 | 410 | 16.14 | |||||||||||
| CX-12.7*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-16*500 | 16 | 0.63 | 500 | 19.69 | 0.7 0.76 1.0 |
0.03 0.03 0.04 |
143 | 5.63 | 25.4 | 1.00 | 9200 | 2042 | LQA C075 C001 |
||
| CX-16*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-16*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-16*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-16*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-16*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-16*1200 | 1200 | 42.24 | 330 | 12.999 | |||||||||||
| CX-16*1500 | 1500 | 59.05 | 410 | 16.14 | |||||||||||
| CX-16*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-19*500 | 19 | 0.74 | 500 | 19.69 | 0.7 0.76 1.0 |
0.03 0.03 0.04 |
143 | 5.63 | 25.4 | 1.00 | 10694 | 2374 | LQA C075 C001 |
||
| CX-19*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-19*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-19*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-19*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-19*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-19*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-19*1500 | 1500 | 59.05 | 410 | 16.1 | |||||||||||
| CX-19*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-19*2500 | 2500 | 98.4 | 730 | 28.74 | |||||||||||
| CX-25*500 | 25 | 0.98 | 500 | 19.69 | 0.7 0.76 1.0 |
0.03 0.03 0.04 |
143 | 5.63 | 25.4 | 1.00 | G402 | ||||
| CX-25*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-25*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-25*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-25*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-25*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-25*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-25*1500 | 1500 | 59.05 | 410 | 16.1 | |||||||||||
| CX-25*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-25*2500 | 2500 | 98.4 | 730 | 28.74 | |||||||||||
| CX-32*500 | 32 | 1.26 | 500 | 19.69 | 0.7 0.76 1.0 1.1 |
0.03 0.03 0.04 0.04 |
143 | 5.63 | 25.4 | 1.00 | G402 | ||||
| CX-32*600 | 600 | 23.62 | 175 | 6.89 | |||||||||||
| CX-32*700 | 700 | 27.56 | 207 | 8.15 | |||||||||||
| CX-32*800 | 800 | 31.5 | 238 | 9.37 | |||||||||||
| CX-32*1000 | 1000 | 39.37 | 270 | 10.63 | |||||||||||
| CX-32*1100 | 1100 | 43.3 | 300 | 11.81 | |||||||||||
| CX-32*1200 | 1200 | 42.24 | 330 | 12.99 | |||||||||||
| CX-32*1500 | 1500 | 59.05 | 410 | 16.1 | |||||||||||
| CX-32*2000 | 2000 | 78.74 | 570 | 22.44 | |||||||||||
| CX-32*2500 | 2500 | 98.4 | 730 | 28.74 | |||||||||||
Advantage
The design of the tooth-shaped buckle increases the endurance of the pulling force of the buckle on the steel belt, and binds objects firmly.
Location

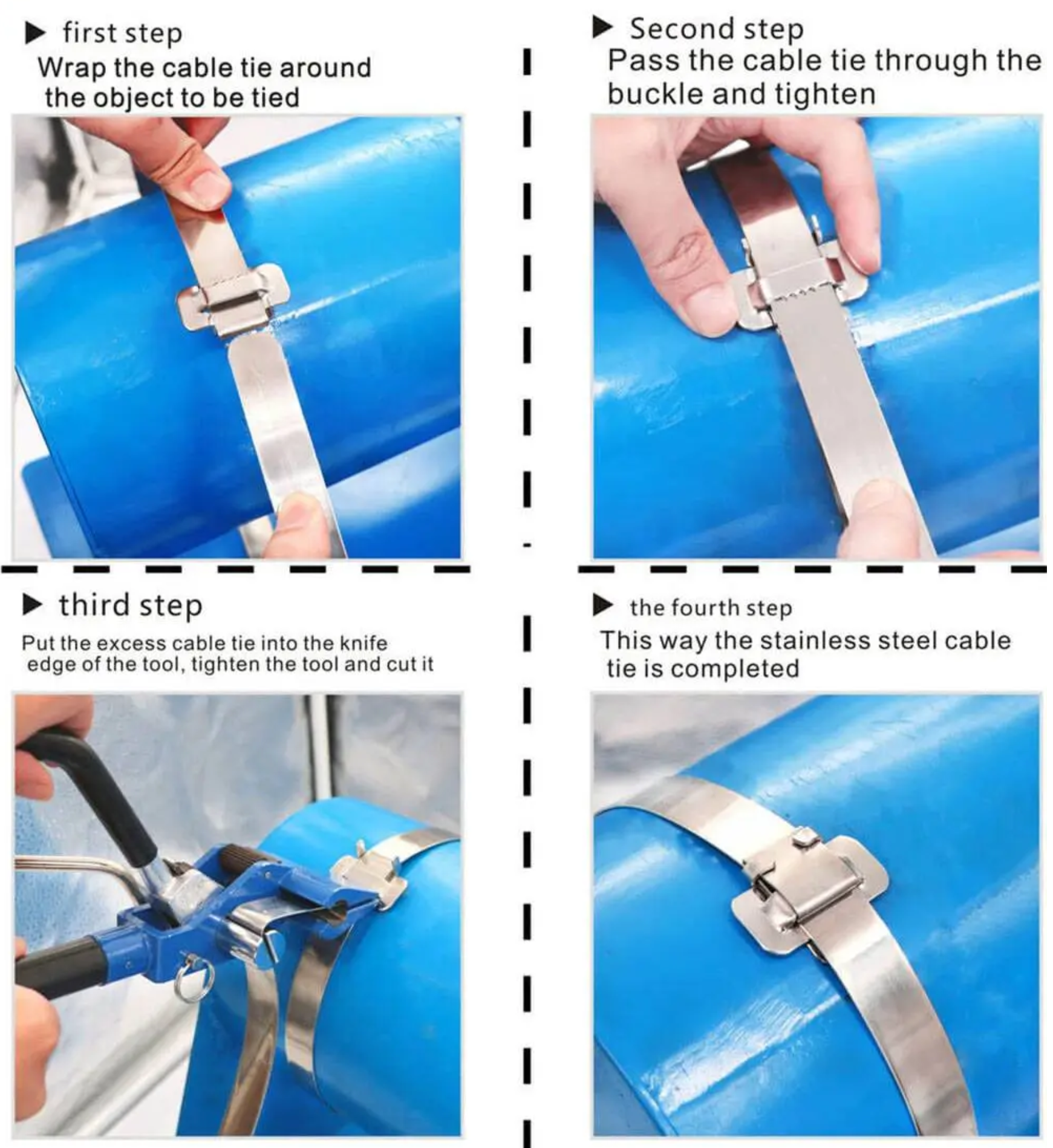

As we mentioned above,the Sainless Steel Banding need the tools for installation,can’t installation by hand. stainless steel banding isn’t always the easiest thing to work with. However, if you have the right tools for the job, it doesn’t have to be so much of a challenge.
Cutting Tools: These are obviously the tools you need to cut steel banding. The exact kind you need will depend on the type of banding you’re using. Heavy-duty steel is going to need equally heavy-duty cutting tools. You’ll need to cut your banding once when you get enough of it for the job and then probably once more after you’ve applied closure if you find there is excess banding hanging off.
