Stainless Steel & Fixing Nail

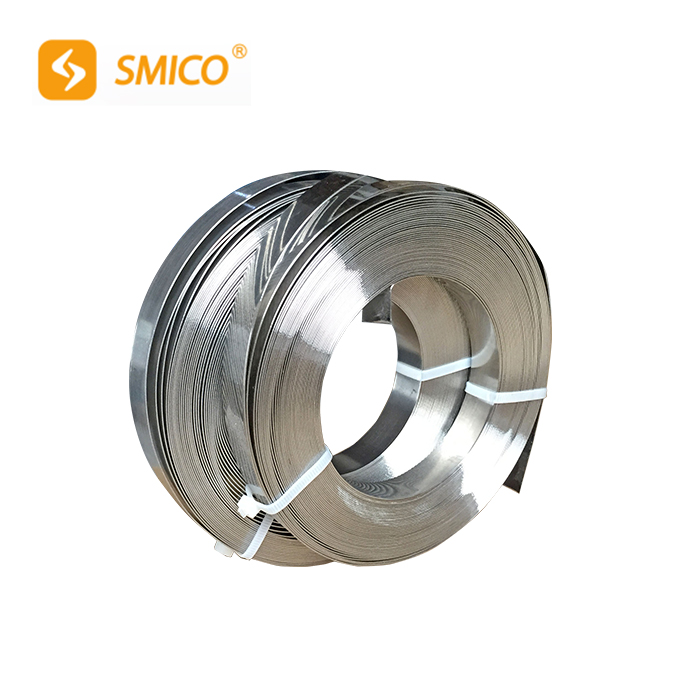

Excellent corrosioin resistance type 304 stainless steel band

Model Number:
SMB1450
Standard:
NFC 33-042, EN 50-483

                                         Excellent corrosioin resistance type 304 stainless steel band

Description:

1 .Band and buckle can be quickly formed to suit virtually any diameter .
2 .Applications include hose clamps ,pipes ,signs ,cables ,especially where superior strength is required .

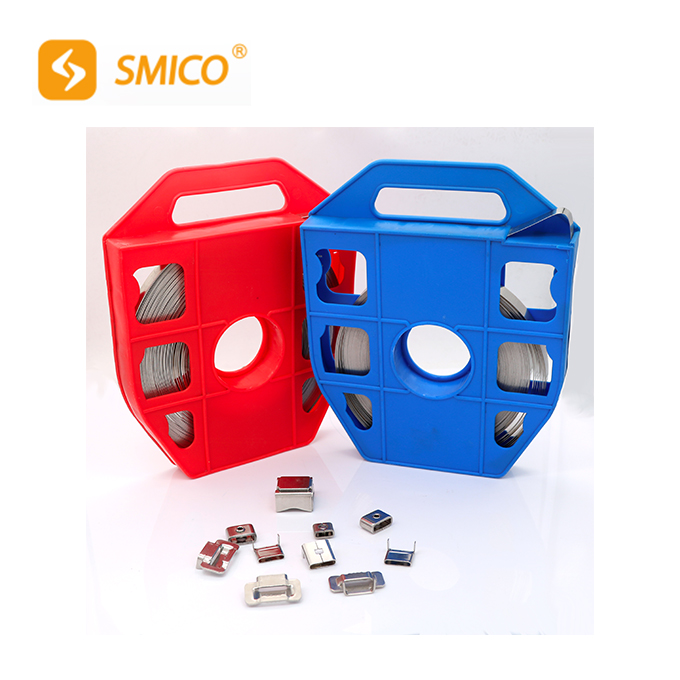

3 .Dispensers-Handy plastic dispensers available with certre turn facility and pocket for buckles .
4 .Excellent corrosioin resistance .

Type 304 Stainless Steel

Modle Width Thickness Weight
Im . mm Im . mm Ibs kg
SMB1450 1/4 6.35 0.020 0.50 1.76 0.80
SMB3850 3/8 9.53 0.020 0.50 2.64 1.20
SMB1276 1/2 12.70 0.030 0.76 5.50 2.50
SMB5876 5/8 15.88 0.030 0.76 7.04 3.20
SMB3476 3/4 19.05 0.030 0.76 8.27 3.76

Availble in mill coil lengths .All size in standard cardboard packing



Type 304 Stainless Steel

Model Width Thickness Weight
Im . mm Im . mm Ibs kg
SMB3850 3/8 9.53 0.020 0.50 3.08 1.40
SMB1276 1/2 12.70 0.030 0.76 5.94 2.70
SMB5876 5/8 15.88 0.030 0.76 7.48 3.40
SMB3476 3/4 19.05 0.030 0.76 8.71 3.96

Customers can assign different colors for different sizes .



Tooth type

Model For band width Thickness
Inch mm mm
SMBT14 1/4 6.35 0.8
SMBT38 3/8 9.53 1.0
SMBT12 1/2 12.70 1.2
SMBT58 5/8 15.88 1.2
SMBT34 3/4 19.05 1.5
SMBT1 1 25.40 1.8
SMBT114 1 1/4 32.50 2.0

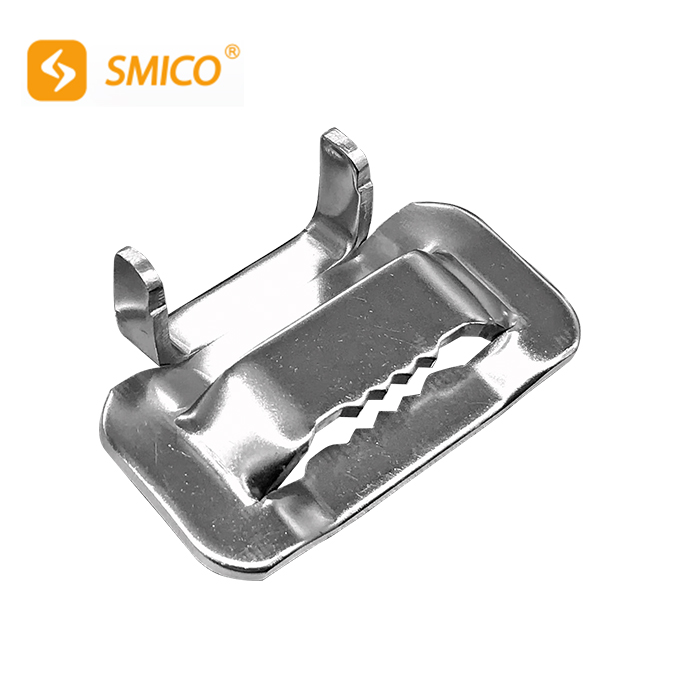

L type

Model For band width Thickness
Inch mm mm
SMBL14 1/4 6.35 0.6
SMBL38 3/8 9.53 0.7
SMBL12 1/2 12.70 0.7
SMBL58 5/8 15.88 0.8
SMBL34 3/4 19.05 1.0

Excellent corrosioin resistance type 304 stainless steel bandExcellent corrosioin resistance type 304 stainless steel band

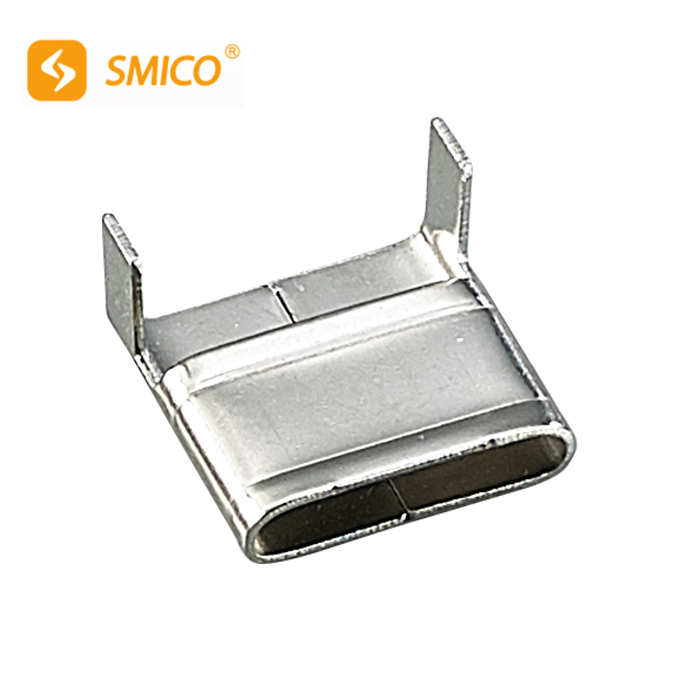

LX type

Model For band width Thickness
Inch mm mm
SMBLX14 1/4 6.35 0.6
SMBLX38 3/8 9.53 0.7
SMBLX12 1/2 12.70 0.7
SMBLX58 5/8 15.88 0.8
SMBLX34 3/4 19.05 1.0



Screw type

Model For band width Thickness
Inch mm mm
SMBS14 1/4 6.35 1.5
SMBS38 3/8 9.53 1.8
SMBS12 1/2 12.70 2.0
SMBS58 5/8 15.88 2.5
SMBS34 3/4 19.05 2.5



Application Tools

Excellent corrosioin resistance type 304 stainless steel band

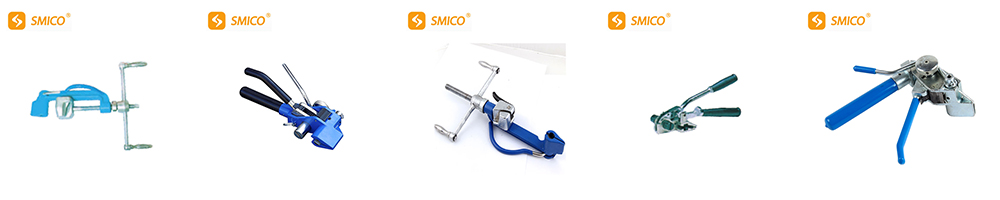

SMBT001 band clamp tool        SMBT002 batchet tension tool       SMBT003 heavy duty tool      SMBT004 ratchet tensioner     SMBT005 bantam tool

Model Description Weight
SMBT001 Band clamp tool for use with bands up to 3/4"(19.05mm)wide 2.0kg
SMBT002 Ratchet tension tool for use with bands up to 3/4"(19.05mm)wide ,and also for all coated bands . 1.8kg
SMBT003 Heavy duty tool 2.3kg
SMBT004 Another type of ratchet tensioner for use with bands up to 3/4"(19.05)wide and also for all coated bands . 1.8kg
SMBT005 It can be used with one handle .For using with bands up to 3/4"(19.05mm)wide 1.5kg

Excellent corrosioin resistance type 304 stainless steel band

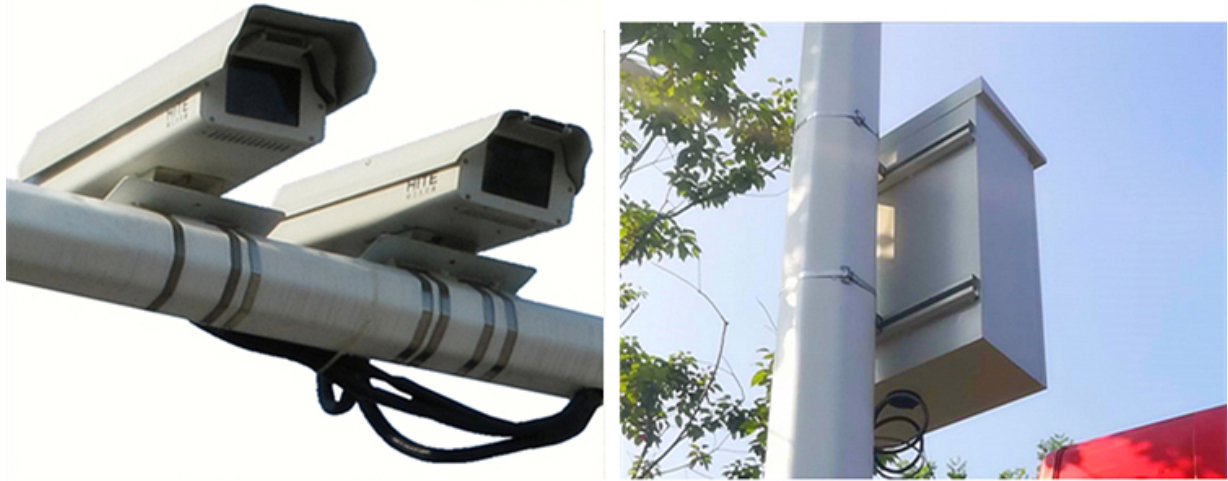

                                            Camera Installation                                                                                              Electric Box Installation

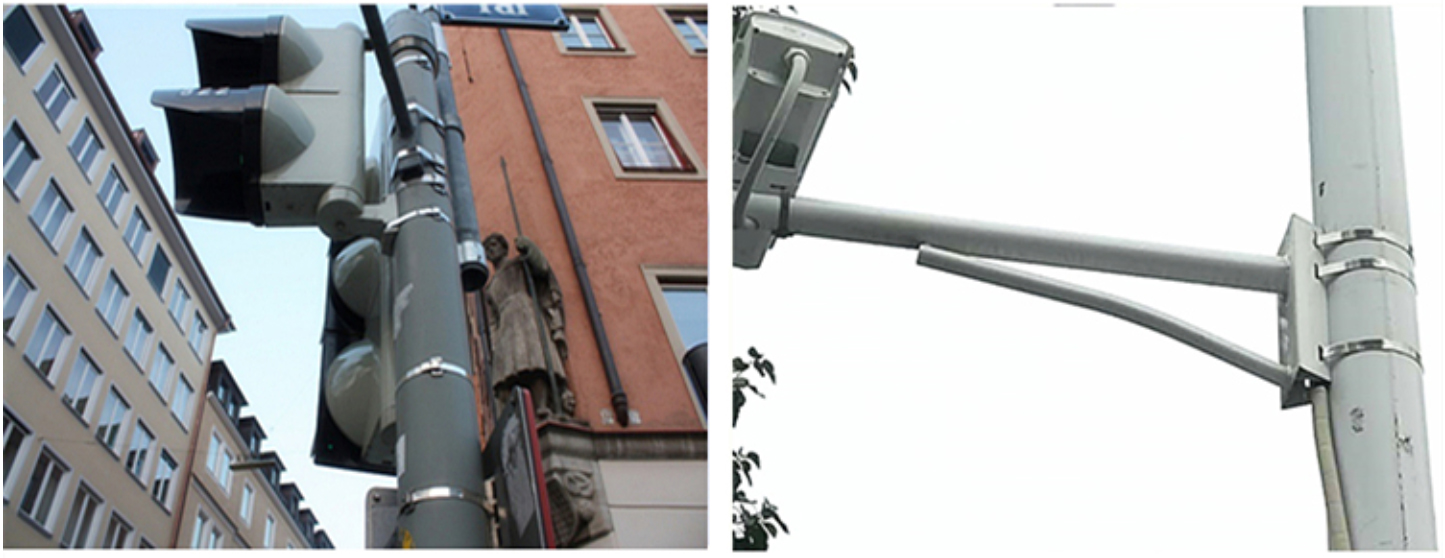

Excellent corrosioin resistance type 304 stainless steel bandTraffic Light Installation
