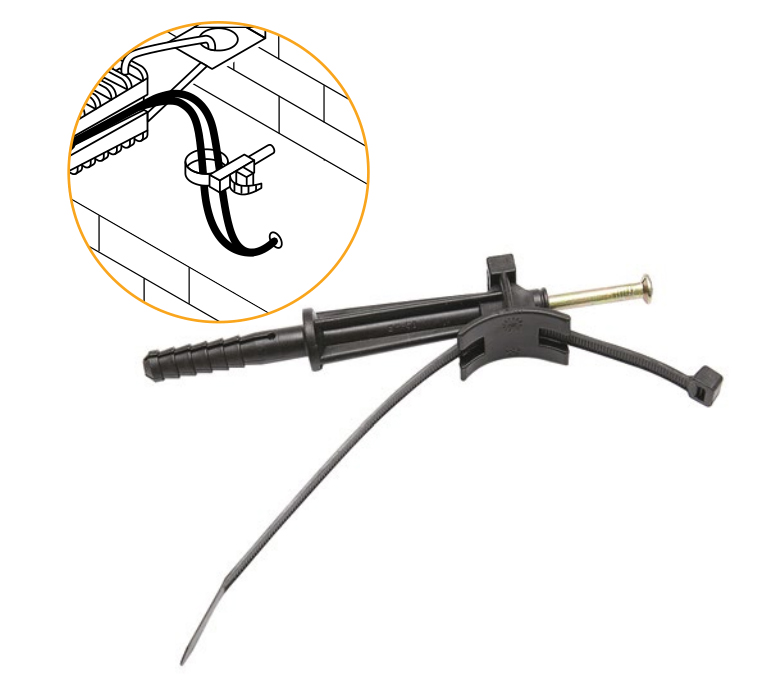

Stainless steel & fixing nail in accordance with NFC 33-040
Stainless steel & fixing nail in accordance with NFC 33-040
Description:
The wall mounted saddles are designed to install LV-ABC lines ( self-supporting or insulated neutral messenger type along...
- Model Number:
- SMZD-1
- Conductor Range:
- 15-47mm²
- Standard:
- NFC 33-042, EN 50-483
- Supply Ability:
- 500000/month
Stainless steel & fixing nail in accordance with NFC 33-040
Description:
- Three types of cable saddles are available:
• BrpF: cable saddle to be fixed on façades by a nail (12mm Ø hole).
• BrpV: cable saddle to be fixed on façades by a screw and dowel pin (12mm Ø hole).
• BrtV: cable saddle to be fixed on façades by a reinforced screw and dowel pin assembly (16mm Ø hole).
- The body and cable tie are made of UV resistant synthetic material.
- The opening under the saddle allows the use of an extra tie (not provided) to install a second conductor.
- The cable tie has outside teeth for:
• Excellent protection of conductor insulation,
• Excellent fixing of service and network conductors.
This cable saddle meets the criteria of the NF C 33-040 and EN 50-483 standards
| Modle | Conductor Range（mm） |
| SMZD-1 | 15-47 |
| SMZD-2 | 12-47 |
| SMZD-3 | 15-47 |
| SMZD-4 | 15-30 |
