JGK Cable Lug Crimping Lugs
- Product Name:
- Cable Lug Crimping Lugs
- Model Number:
- JGK
- Conductor Range:
- 1.5-1000
- Brand:
- SMICO
- Standard:
- IEC
- Supply Ability:
- 10000000
- Packaging Details:
- Export carton
- Material:
- E-Cu
- Surface:
- Tin-plated
Description
Material:E-Cu
Surface treatment:Tin-plated
Product Property:It is used to connect the copper conductor end.
It has a viewing window to check the conductor location

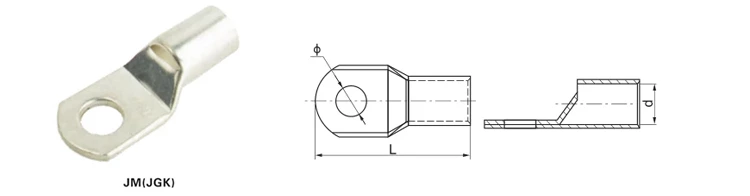

Specification
| Type | Dimensions(mm) | ||
| L | d | Φ | |
| JM(JGK)1.5-4 | 18 | 1.9 | 4.2 |
| JM(JGK)1.5-5 | 18 | 1.9 | 5.2 |
| JM(JGK)1.5-6 | 18 | 1.9 | 6.5 |
| JM(JGK)2.5-4 | 19 | 2.8 | 4.3 |
| JM(JGK)2.5-5 | 20 | 2.8 | 5.2 |
| JM(JGK)2.5-6 | 20 | 2.6 | 6.5 |
| JM(JGK)4-4 | 19.5 | 3.2 | 4.3 |
| JM(JGK)4-5 | 20.5 | 3.2 | 5.2 |
| JM(JGK)4-6 | 22 | 3.2 | 6.5 |
| JM(JGK)6-5 | 22 | 3.7 | 5.2 |
| JM(JGK)6-6 | 23 | 3.7 | 6.5 |
| JM(JGK)6-8 | 24 | 3.7 | 8.4 |
| JM(JGK)6-10 | 24 | 3.7 | 10.3 |
| JM(JGK)10-6 | 24 | 4.5 | 6.5 |
| JM(JGK)10-8 | 25 | 4.5 | 8.4 |
| JM(JGK)10-10 | 26.5 | 4.5 | 10.3 |
| JM(JGK)16-6 | 27.5 | 5.7 | 6.5 |
| JM(JGK)16-8 | 29.5 | 5.7 | 8.4 |
| JM(JGK)16-10 | 30 | 5.7 | 10.5 |
| JM(JGK)25-6 | 32.5 | 7.2 | 6.5 |
| JM(JGK)25-8 | 33 | 7.2 | 8.4 |
| JM(JGK)25-10 | 34 | 7.2 | 10.5 |
| JM(JGK)25-12 | 37 | 7.2 | 13 |
| JM(JGK)35-6 | 36 | 8.5 | 6.5 |
| JM(JGK)35-8 | 37 | 8.5 | 8.5 |
| JM(JGK)35-10 | 38 | 8.5 | 10.5 |
| JM(JGK)35-12 | 38 | 8.5 | 13 |
| JM(JGK)50-6 | 41 | 9.8 | 6.5 |
| JM(JGK)50-8 | 42.5 | 9.8 | 8.5 |
| JM(JGK)50-10 | 44 | 9.8 | 10.5 |
| JM(JGK)50-12 | 44 | 9.8 | 13 |
| JM(JGK)50-14 | 44 | 9.8 | 14.7 |
| JM(JGK)70-8 | 48.5 | 11.5 | 8.5 |
| JM(JGK)70-10 | 50 | 11.5 | 10.5 |
| JM(JGK)70-12 | 50 | 11.5 | 13 |
| JM(JGK)95-8 | 57 | 13.7 | 8.5 |
| JM(JGK)95-10 | 57 | 13.7 | 10.5 |
| JM(JGK)95-12 | 57 | 13.7 | 13 |
| JM(JGK)95-14 | 57 | 13.7 | 15 |
| JM(JGK)95-16 | 57 | 13.7 | 17 |
| JM(JGK)120-10 | 61.5 | 15 | 10.5 |
| JM(JGK)120-12 | 63 | 15 | 13 |
| JM(JGK)120-14 | 63 | 15 | 14.7 |
| JM(JGK)120-16 | 63.5 | 15 | 17 |
| JM(JGK)120-20 | 67.5 | 15 | 21 |
| JM(JGK)150-10 | 71 | 16.7 | 10.5 |
| JM(JGK)150-12 | 71 | 16.7 | 13 |
| JM(JGK)150-14 | 71 | 16.7 | 14.7 |
| JM(JGK)150-16 | 71 | 16.7 | 17 |
| JM(JGK)185-10 | 77 | 19.2 | 10.5 |
| JM(JGK)185-12 | 77 | 19.2 | 13 |
| JM(JGK)185-14 | 77.5 | 19.2 | 14.7 |
| JM(JGK)185-16 | 79 | 19.2 | 17 |
| JM(JGK)185-18 | 79 | 19.2 | 18.7 |
| JM(JGK)185-20 | 79 | 19.2 | 21 |
| JM(JGK)240-10 | 89.5 | 21 | 10.5 |
| JM(JGK)240-12 | 89.5 | 21 | 13 |
| JM(JGK)240-14 | 90 | 21 | 14.7 |
| JM(JGK)240-16 | 91 | 21 | 17 |
| JM(JGK)240-20 | 92 | 21 | 21 |
| JM(JGK)300-10 | 100 | 24 | 10.5 |
| JM(JGK)300-12 | 100 | 24 | 13 |
| JM(JGK)300-16 | 100 | 24 | 17 |
| JM(JGK)300-20 | 102 | 24 | 21 |
| JM(JGK)400-12 | 111 | 27 | 13 |
| JM(JGK)400-16 | 111 | 27 | 17 |
| JM(JGK)400-18 | 113 | 27 | 18.5 |
| JM(JGK)400-20 | 113 | 27 | 21 |
| JM(JGK)500-16 | 123 | 30 | 17 |
| JM(JGK)500-20 | 123 | 30 | 21 |
| JM(JGK)630-16 | 135 | 35 | 17 |
| JM(JGK)630-20 | 135 | 35 | 21 |
| JM(JGK)630-22 | 135 | 35 | 23 |
| JM(JGK)630-8/4 | 135 | 35 | 8.5 |
| JM(JGK)630-10/4 | 135 | 35 | 10.5 |
| JM(JGK)800-20 | 170 | 39 | 21 |
| JM(JGK)800-22 | 170 | 39 | 23 |
| JM(JGK)1000-20 | 200 | 44 | 21 |
| JM(JGK)1000-22 | 200 | 44 | 23 |
Advantage
- will not happen corrosion,compare to aluminium connector.
- use for termination.
- the friction welding is well done.
- its barrel capped is fulled with joint compound to avoid oxidization.
- the type test is follow IEC61238-1
- Material:E-Cu,Al-99.6% Surface treatment:Bright
