CPTH type 1 or 2 holes connector press type H aerial electrical fittings
- Model Number:
- CPTH type
- Conductor Range:
- 16-300mm²
- Supply Ability:
- 200000/Month
Description
●Tap grooves function independently of each other.
Use of one tap is required. Balance may be used or left empty.
●Provides matched system for fast and easy installation.
Die index embossed on connector after completion of crimp.
●Permanent inspectability of installed connectors to insure
consistently reliable and dependable connection.
●Constrains conductors while installer completes crimp.
●Simplifies installation, reducing installed cost.

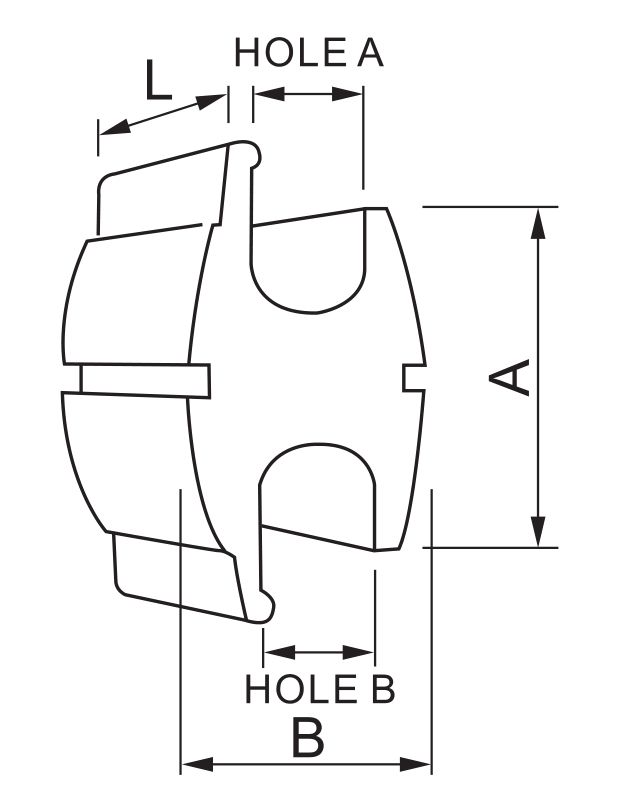

Specification
| Modle | Hole 1 mm² |
Hole 2 mm² |
Dimensions（mm） | ||
| A | B | L | |||
| CPTH 35-35 | 16-35 | 16-35 | 17.5 | 23.8 | 38 |
| CPTH 35-70 | 16-35 | 35-70 | 17.8 | 26 | 46 |
| CPTH 70-70 | 35-70 | 35-70 | 20.6 | 30.5 | 47 |
| CPTH 120-120 | 70-120 | 70-120 | 22.7 | 36.5 | 52 |
| CPTH 70-150 | 35-150 | 70-15023 | 23 | 34.5 | 70 |
| CPTH 150-150 | 70-150 | 70-150 | 25.4 | 39.5 | 70 |
| CPTH 70-240 | 35-70 | 120-240 | 28 | 42 | 90 |
| CPTH 150-247 | 70-150 | 120-240 | 32 | 46 | 90 |
| CPTH 240-240 | 120-240 | 120-240 | 32 | 52 | 90 |
| CPTH 300-300 | 150-300 | 150-300 | 32 | 52 | 100 |
Advantage
●Tap grooves function independently of each other.
Use of one tap is required. Balance may be used or left empty.
●Provides matched system for fast and easy installation.
Die index embossed on connector after completion of crimp.
●Permanent inspectability of installed connectors to insure
consistently reliable and dependable connection.
●Constrains conductors while installer completes crimp.
●Simplifies installation, reducing installed cost.
Location
Packaging
Videos
Downloads
| CPTH type 1 or 2 holes connector press type H aerial electrical fittings | Download |
