Parallel groove clamps for bare neutral messenger and grounding
- Product Name:
- Parallel groove clamps
- Model Number:
- APG
- Conductor Range:
- 16-240
- Brand:
- SMICO
- Bolt:
- 1/2/3
- Packaging Details:
- Export carton
- Material:
- Aluminium
Parallel groove clamps for bare neutral messenger and grounding

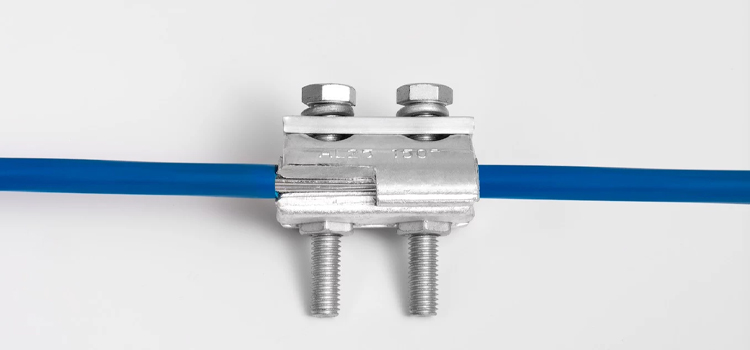

Description:APG Aluminum Parallel Groove Clamp is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.
-
Exceed requirements according to VDE 0210 and VDE 0212
-
Pressure pad ensuring uniform pressure along the clamp
-
Cross-grooved clamp channels of universal clamp type improve mechanical pullout strength and electrical contact
-
Connector bodies made of corrosion resistant, high strength aluminium alloy AlMgSi1F32
-
Bolts and nuts made of hot dip galvanized steel 8.8
| Model | Conductor Cross-section (mm2) | Bolts |
| APG-A1 | Al 16-70 | 1×M8×40 |
| APG-A2 | Al 25-150 | 1×M8×45 |
| APG-B1 | Al 16-35 | 2×M6×35 |
| APG-B2 | Al 16-70 | 2×M8×45 |
| APG-B3 | Al 16-150 | 2×M8×50 |
| APG-B4 | Al 25-185 | 2×M10×60 |
| APG-C1 | Al 16-70 | 3×M8×45 |
| APG-C2 | Al 16-150 | 3×M8×50 |
| APG-C3 | Al 25-240 | 3×M10×60 |
| APG-C4 | Al 35-300 | 3×M10×70 |
Product Advantages
- 1. Parallel groove clamps play a crucial role in electrical transmission and distribution systems. Here’s a simplified overview of their key features and benefits:
- 2. Corrosion Resistance: Made from materials like aluminum alloys and stainless steel, these clamps resist corrosion, ensuring long-lasting performance with minimal maintenance.
- 3. Strength and Resilience: Hot-forged aluminum alloy construction provides high mechanical strength and a smooth finish, enhancing both durability and resistance to the elements.
- 4. Galvanized Protection: Nuts and washer supporters are hot-dip galvanized, offering extra protection against rust and corrosion, especially in outdoor conditions.
- 5. Compatibility with Copper Conductors: Designed to work well with copper-based conductors, these clamps secure connections, reduce electrical losses, and improve system efficiency.
