Description

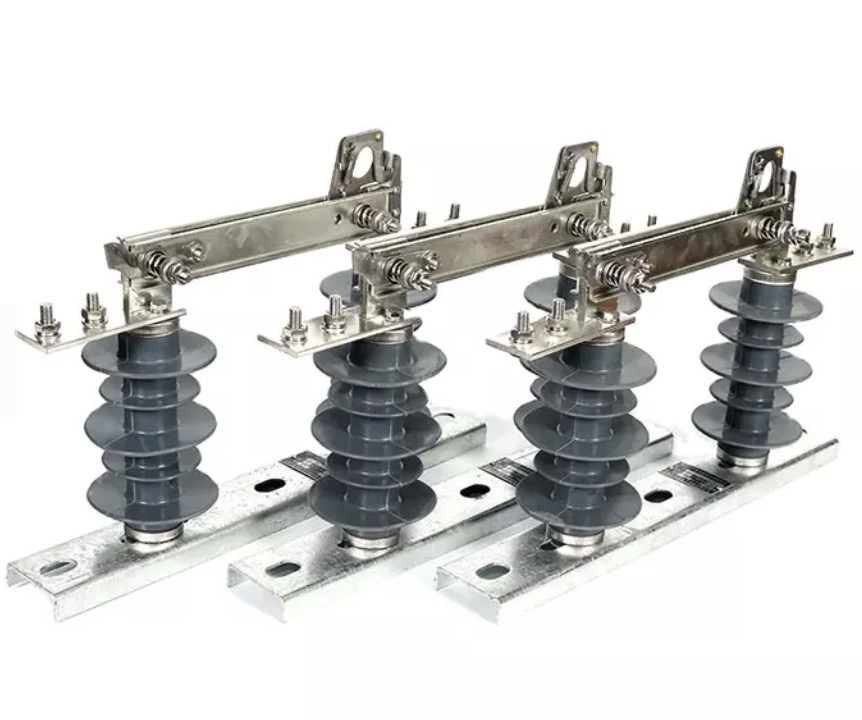

HV Load Break Switch Isolator Disconnector
1.The altitude does not exceed 1000m,
2.The ambient air temperature: Maximum+ 40'C ;Minimum:General Area -30'C, Paramos -40 C;
3.The earthquake intensity does not exceed 8 degrees;
4.Installation Location: No fire, explosion danger, pollution, chemical corrosion and frequent violent vibration of the place
Specification
| products specification | |||||||
| Product code | Rated voltage (KV) | Rated currentA | The electrical performance tolerance value of the product. | The insulator creepage distance (not less than)(cm/KV) | |||
| 1.2 / 50μs full wave impulse withstand (not less than)(KV) | 1.2 / 50μs full wave withstand the impact fracture (not less than)(KV) | Dry Power frequency withstand voltage (KV) | Wet Power frequency withstand voltage (KV) | ||||
| HGW9-10/400 | 10 | 400 | 120(90) | 140(90) | 80(42) | 45(34) | 3.2 |
| HGW9-10/630 | 10 | 630 | 120(75) | 140(90) | 80(42) | 45(34) | 3.2 |
| HGW9-10/800 | 10 | 800 | 120(75) | 140(90) | 80(42) | 45(34) | 3.2 |
| HGW-0.5/600 | 0.38 | 600 | 60(3) | 45(2.5) | 10 | ||
Advantage
• No maintenance required.
• Easy pole top mounting.
• Line works can be carried in safe conditions thanks to the visible opening and high level
of insulation.
• A manual control mechanism is available with a rod assembly and padlockable lever.
• Whip breaking system.
• The IACM switch control mechanisms are equipped with a tumbler spring system which
directly operates the mobile shaft.
The operating speed is not dependant on the operator.
• Height of the pole from 9 to 11 m.

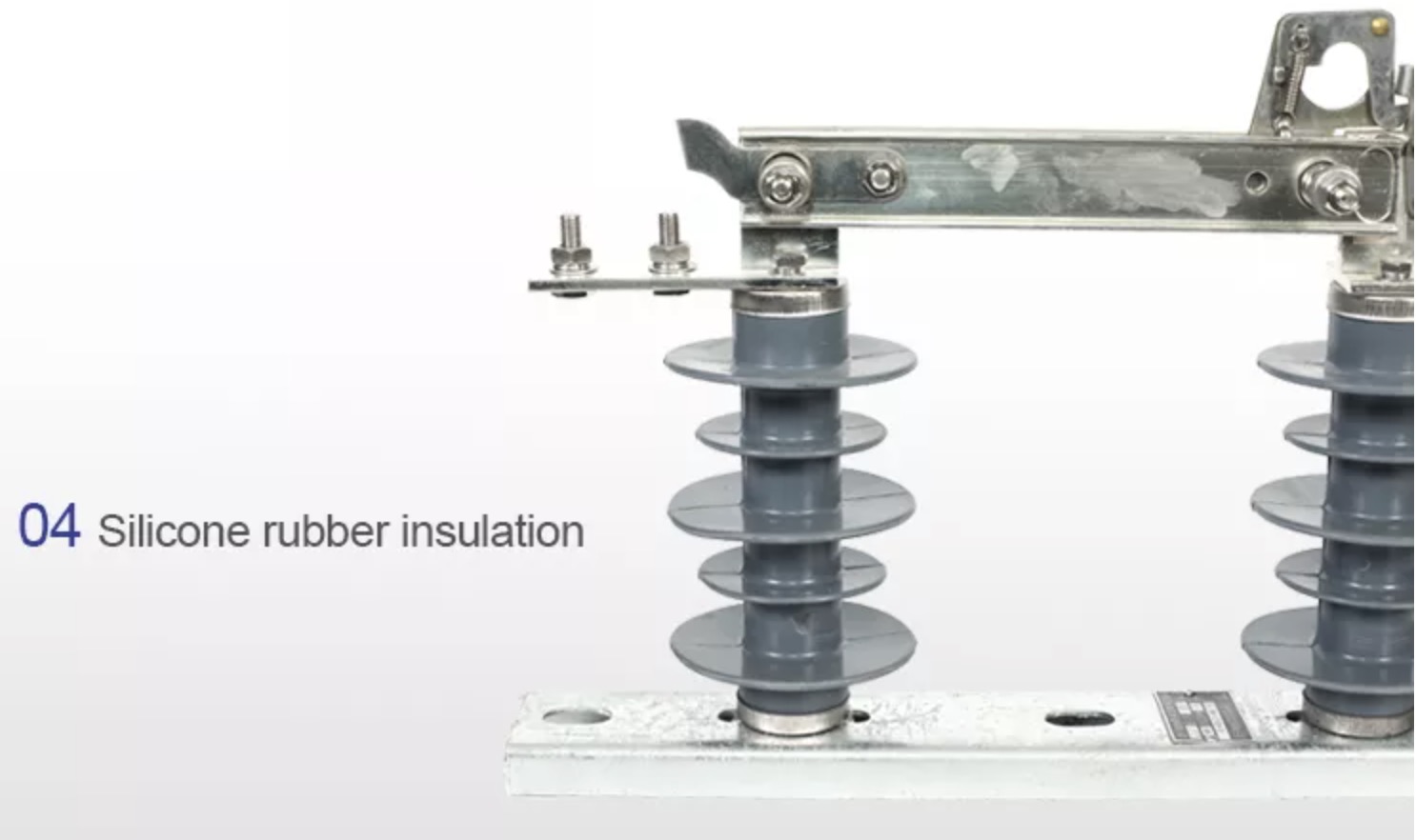

• Synthetic Insulators designed with a central part in epoxy resin. The flexible skirts in over
molded silicone provide an important creepage distance and a good protection against
vandalism.
