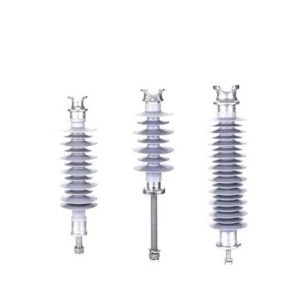

High Voltage Polymer Pin Insulator

Composite pin insulator is applicable for high-voltage line facilities. The insulator has good water-repellent, anti-aging and anti-leakage properties. And it is also featured by high resistance to bending and high mechanical strength. It is easy for installation and its installation dimensions of top and bottom parts are the same with those of corresponding porcelain pin type so that they are interchangeable.

1. Excellent electric corrosion-proof property.

2. High mechanical intension.

3. Light weight and easy installation.

Composite Post Insulators are ideal for various high voltage installations, including:

• Transmission lines
• Distribution networks
• Substations
• Railway electrification systems
• Industrial power systems

01.What is a Composite Post Insulator?

A Composite Post Insulator, also known as a Non-Ceramic Insulator (NCI) or polymer insulator, is a high-performance insulator made from advanced materials such as silicone rubber, ethylene propylene rubber (EPR), or polytetrafluoroethylene (PTFE). They are used in power transmission and distribution systems to provide superior mechanical and electrical performance.

02.What are the main advantages of Composite Post Insulators?

The main advantages of Composite Post Insulators include:

Lightweight Design: They are lighter than traditional ceramic or glass insulators, making them easier to transport and install.

Excellent Hydrophobicity: Synthetic materials like silicone rubber are highly water-repellent, which helps prevent dirt accumulation and reduces leakage current losses.

Strong Environmental Resistance: They are resistant to UV radiation, moisture, and pollution, ensuring long-term stable operation even in harsh conditions.

High Mechanical Strength: The combination of a fiberglass core rod and highly insulating polymer materials provides excellent mechanical strength and electrical performance.

03.What are the applications of Composite Post Insulators?

Composite Post Insulators are widely used in various high voltage power systems, including:

High voltage transmission lines

Distribution networks

Substations

Railway electrification systems

Industrial power systems

04.How do I choose the right Composite Post Insulator?

When selecting a Composite Post Insulator, consider the following factors:

The system’s rated voltage and maximum continuous operating voltage (Uc)

Mechanical strength requirements (e.g., tensile strength and bending strength)

Environmental conditions (e.g., temperature, humidity, and pollution levels)

The size and installation requirements of the insulator

05.Do Composite Post Insulators require maintenance?

While Composite Post Insulators are designed to be maintenance-free, it is advisable to periodically inspect their physical condition to ensure there are no signs of damage or aging. For insulators installed in harsh environments, regular electrical testing may also be necessary to ensure they maintain their protective performance.

06.What is the typical lifespan of a Composite Post Insulator?

The lifespan of a Composite Post Insulator depends on various factors, including environmental conditions and the frequency of overvoltage events. Typically, composite insulators can last between 20 to 30 years, but this depends on usage and the quality of the insulator.

07.Can Composite Post Insulators be used in high pollution environments?

Yes, Composite Post Insulators have excellent pollution resistance. Insulators made with materials like silicone rubber have hydrophobic properties that help prevent pollution buildup, making them suitable for use in high pollution environments.
