Stay Porcelain Ceramic Insulator for Overhead Line

 Stay Insulator

Stay insulator is a type of low voltage insulator designed to fasten and counterweight the dead end pole by connecting with a stay wire or guy grip, it is also called stay type insulator or egg insulator.

To avoid the dead end pole or terminal pole fall down, it should select the suitable types of stay insulators and pole line fittings. QUAN PHAM stay insulators have the function to avoid the electric conduction on the stay wire by accident.

How does a stay insulator function?

There are two holes in the stay insulator body. The 2 pieces guy grips go through the hole in the opposite direction. The guy grip will wrap the stay wire to furnish the connection.

The connection way isn’t confirmed. For different markets, there are different ways to connect. As an insulator manufacturer and supplier, we also can design the insulator fittings based on the customers’ designs and drawings

There are different types of insulators for overhead powerlines. All of them are used for different but related functions. As you know, the basic function of an insulator is to prevent the flow of electric current areas to areas that it is not supposed to go. In short, insulators prevent the unwanted flow of electric current.

In a typical transmission line, the overhead conductors are supported by poles and towers. Insulators are positioned between the poles to prevent the current from flowing to the earth.

The main types of insulators used on overhead powerlines are:

-Pin insulator

-Stay insulator

-Suspension insulator

-Strain insulator

-Shackle insulator

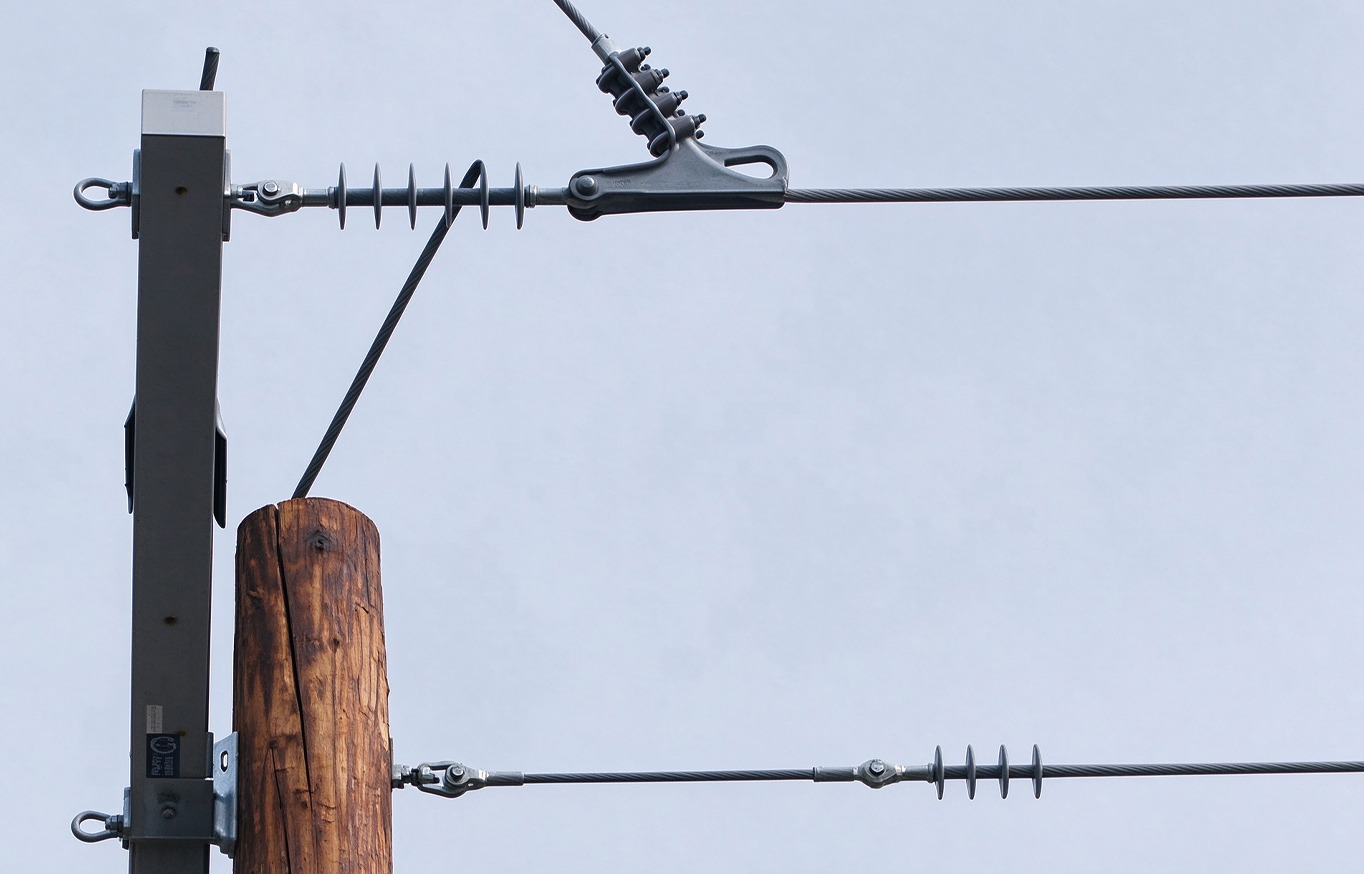

Types of insulators play different roles on an overhead powerline system

Small size, easy to maintain;
Light weight, easy to install;
High mechanical strength, not easy to break;
Excellent seismic performance and good stain resistance;
Fast production cycle and high quality stability.

Composite Post Insulators are ideal for various high voltage installations, including:

• Transmission lines
• Distribution networks
• Substations
• Railway electrification systems
• Industrial power systems

01.What is a Composite Post Insulator?

A Composite Post Insulator, also known as a Non-Ceramic Insulator (NCI) or polymer insulator, is a high-performance insulator made from advanced materials such as silicone rubber, ethylene propylene rubber (EPR), or polytetrafluoroethylene (PTFE). They are used in power transmission and distribution systems to provide superior mechanical and electrical performance.

02.What are the main advantages of Composite Post Insulators?

The main advantages of Composite Post Insulators include:

Lightweight Design: They are lighter than traditional ceramic or glass insulators, making them easier to transport and install.

Excellent Hydrophobicity: Synthetic materials like silicone rubber are highly water-repellent, which helps prevent dirt accumulation and reduces leakage current losses.

Strong Environmental Resistance: They are resistant to UV radiation, moisture, and pollution, ensuring long-term stable operation even in harsh conditions.

High Mechanical Strength: The combination of a fiberglass core rod and highly insulating polymer materials provides excellent mechanical strength and electrical performance.

03.What are the applications of Composite Post Insulators?

Composite Post Insulators are widely used in various high voltage power systems, including:

High voltage transmission lines

Distribution networks

Substations

Railway electrification systems

Industrial power systems

04.How do I choose the right Composite Post Insulator?

When selecting a Composite Post Insulator, consider the following factors:

The system’s rated voltage and maximum continuous operating voltage (Uc)

Mechanical strength requirements (e.g., tensile strength and bending strength)

Environmental conditions (e.g., temperature, humidity, and pollution levels)

The size and installation requirements of the insulator

05.Do Composite Post Insulators require maintenance?

While Composite Post Insulators are designed to be maintenance-free, it is advisable to periodically inspect their physical condition to ensure there are no signs of damage or aging. For insulators installed in harsh environments, regular electrical testing may also be necessary to ensure they maintain their protective performance.

06.What is the typical lifespan of a Composite Post Insulator?

The lifespan of a Composite Post Insulator depends on various factors, including environmental conditions and the frequency of overvoltage events. Typically, composite insulators can last between 20 to 30 years, but this depends on usage and the quality of the insulator.

07.Can Composite Post Insulators be used in high pollution environments?

Yes, Composite Post Insulators have excellent pollution resistance. Insulators made with materials like silicone rubber have hydrophobic properties that help prevent pollution buildup, making them suitable for use in high pollution environments.
