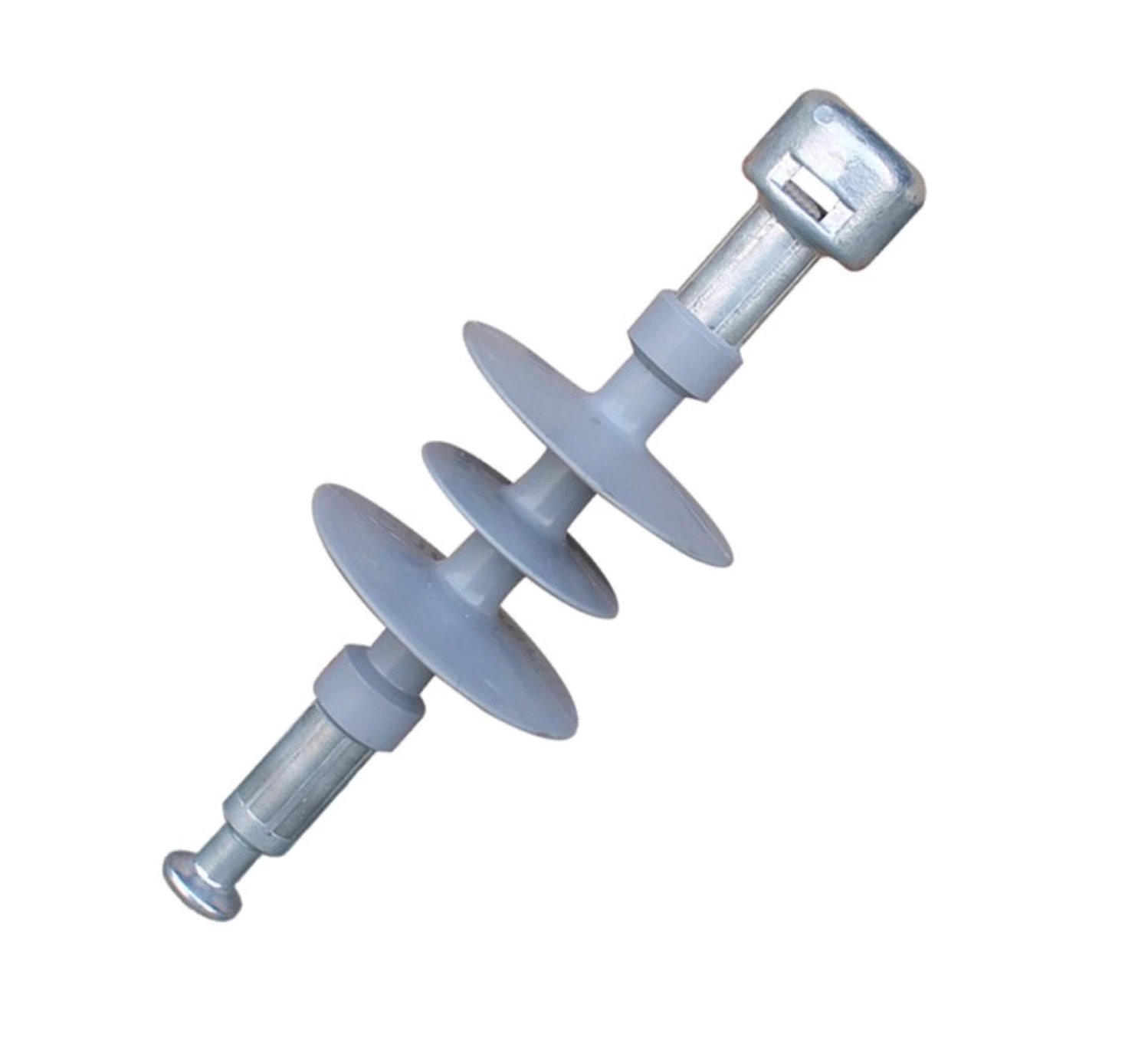

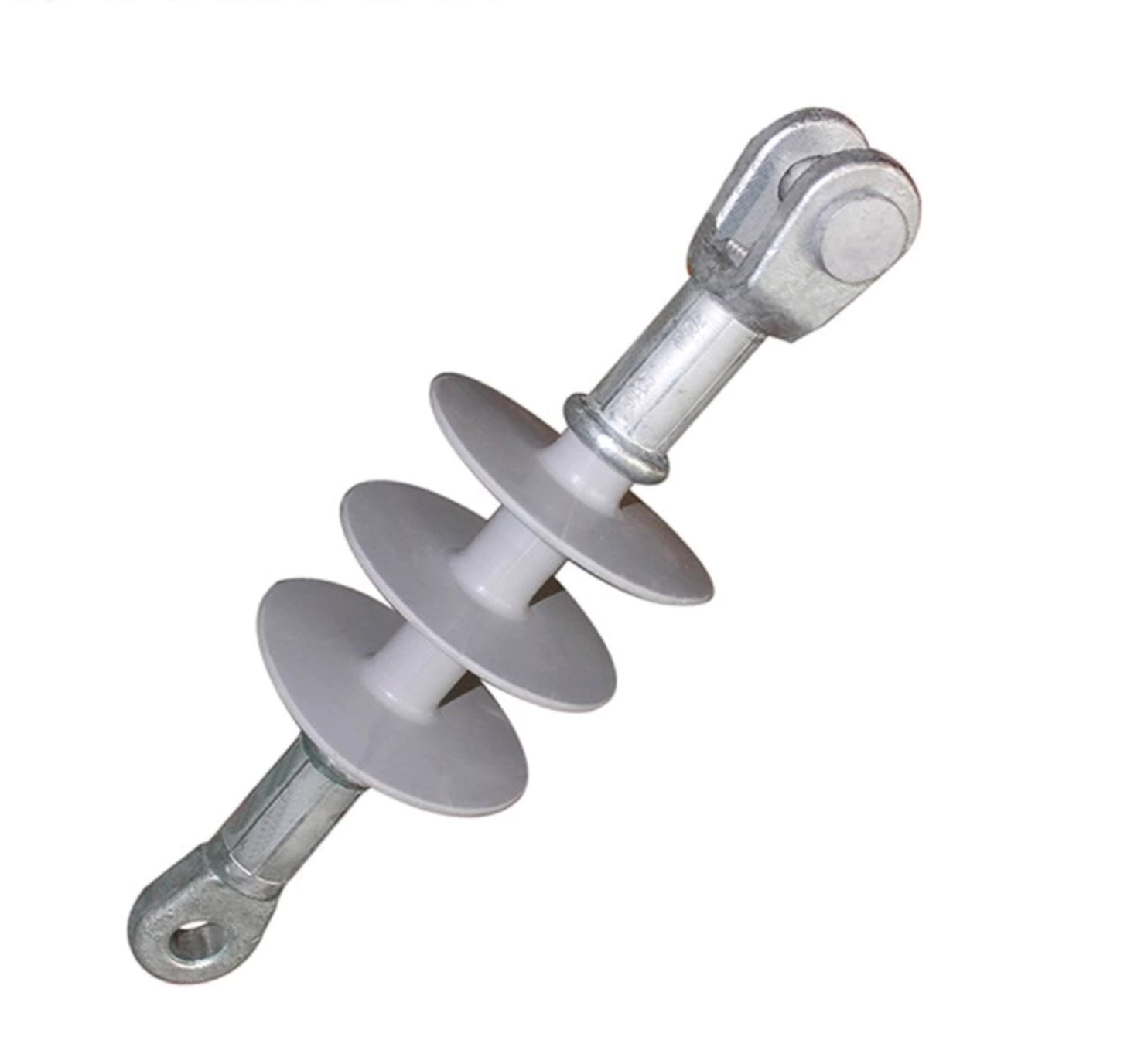

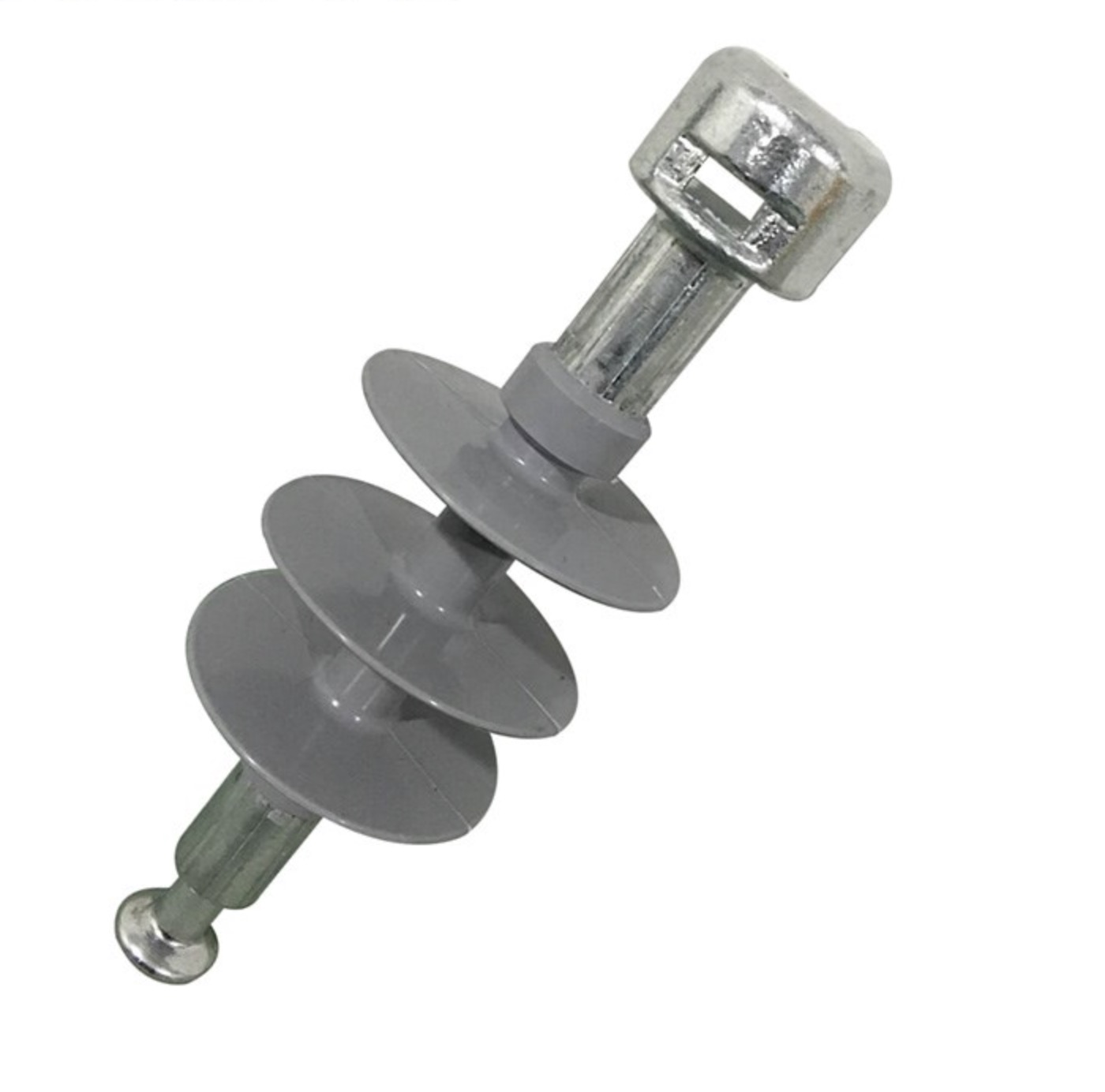

Composite Polymer Insulator
The Polymer Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings. The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem – interface electric spark puncture, which would affect the reliability of composite insulator.
...
Description:

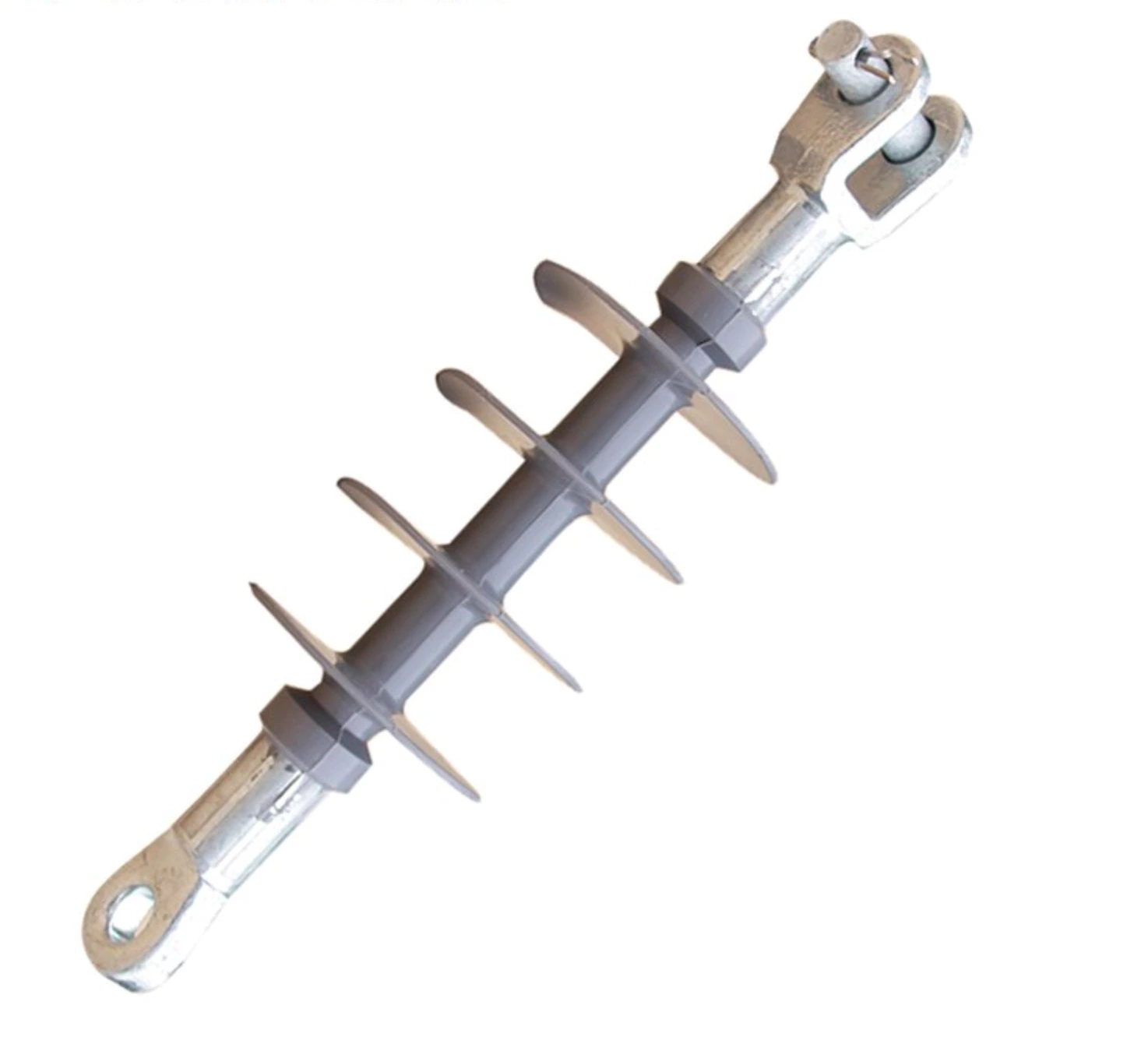

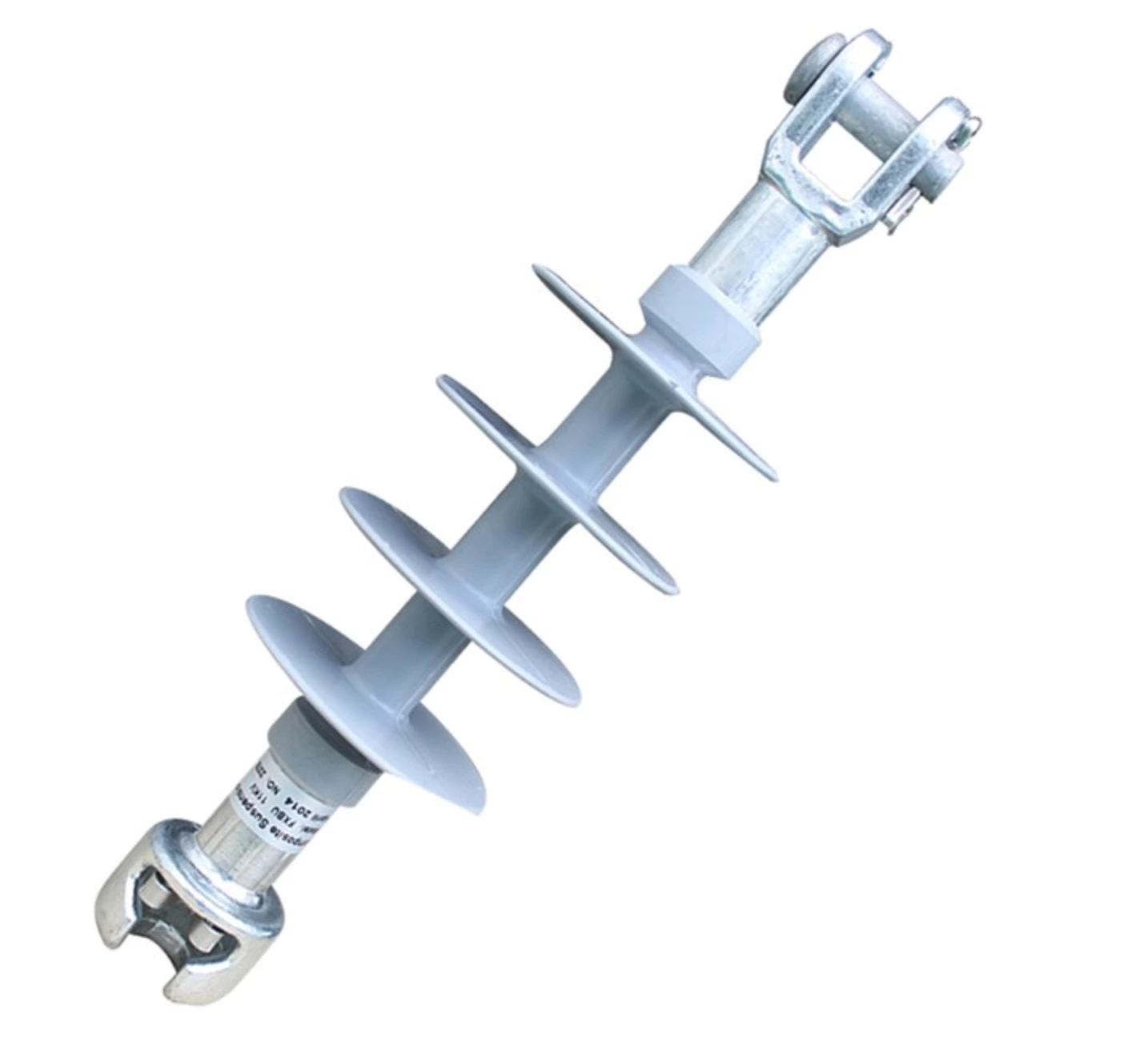

The Polymer Insulator are made of glass fiber epoxy core rod, silicone rubber shed and metal fittings.
The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key probleminterface electric spark puncture, which would affect the reliability of composite insulator.Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level, and have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
Technical Data:
| Code | Rated Voltage (kV) | Breaking Load (kN) | Length | Insulation Height | Creepage Distance | Unbrella Diameter | 1min power frequency wet withstand voltage | Full wave lightning impluse withstand voltage |
| (kV) | (kN) | (mm) | (kV) | |||||
| FPQ-24/4 | 24 | 4 | 335 | 273 | 655 | 146/112 | 60 | 125 |
| FPQ-24/6 | 24 | 6 | 310 | 210 | 535 | 120 | 60 | 125 |
| FPQ-36/5 | 36 | 5 | 450 | 340 | 950 | 145/115 | 95 | 230 |
| FXBW2-12/70UD | 12 | 70 | 350 | 180 | 360 | 98/88 | 95 | 105 |
| FXB2-15/70UD | 15 | 70 | 275 | 200 | 470 | 98/88 | 42 | 105 |
| FXB2-24/70UD | 24 | 70 | 430 | 290 | 680 | 98 | 42 | 150 |
| FXB2-28/70UD | 28 | 70 | 430 | 290 | 680 | 98 | 95 | 230 |
| FXB2-33/70UD | 33 | 70 | 550 | 360 | 720 | 98 | 95 | 230 |
| FXB2-35/70UD | 36 | 70 | 570 | 400 | 1000 | 76 | 95 | 230 |
| FXBO2-36/70 | 36 | 70 | 650 | 450 | 720 | 98 | 95 | 230 |

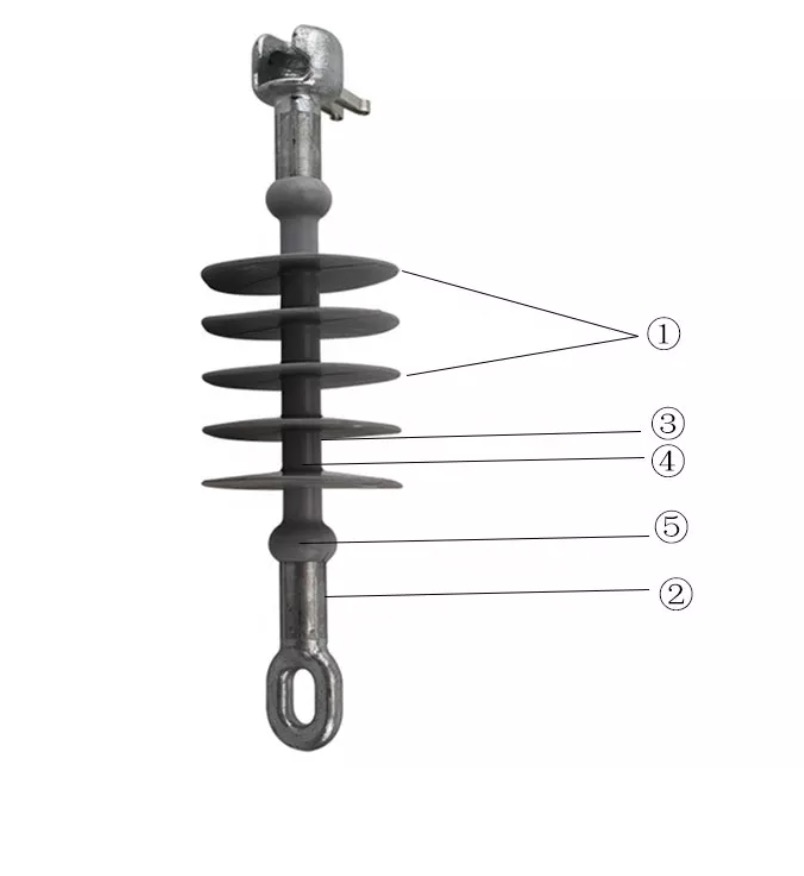

① Shed connected with core by integral forming

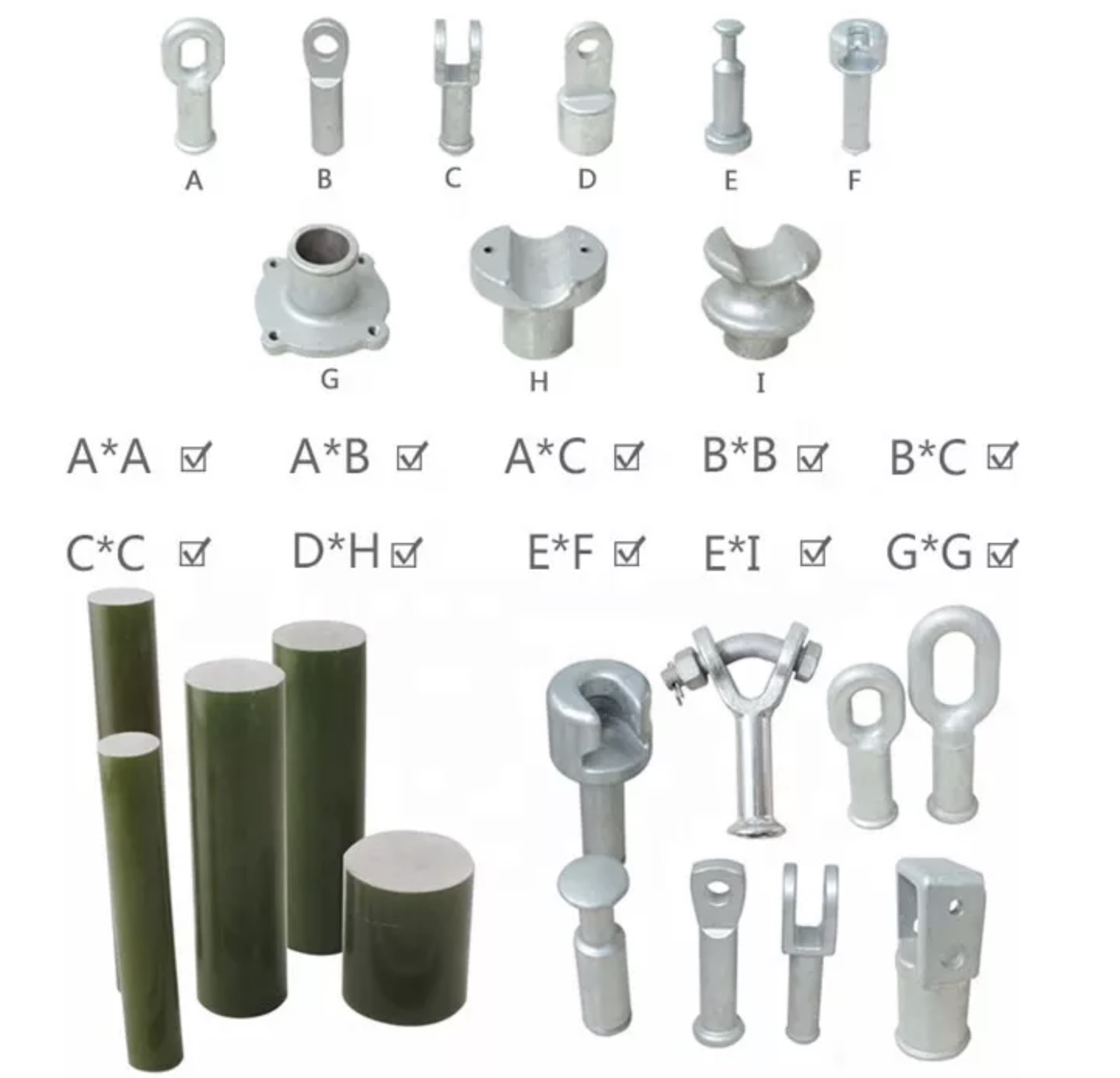

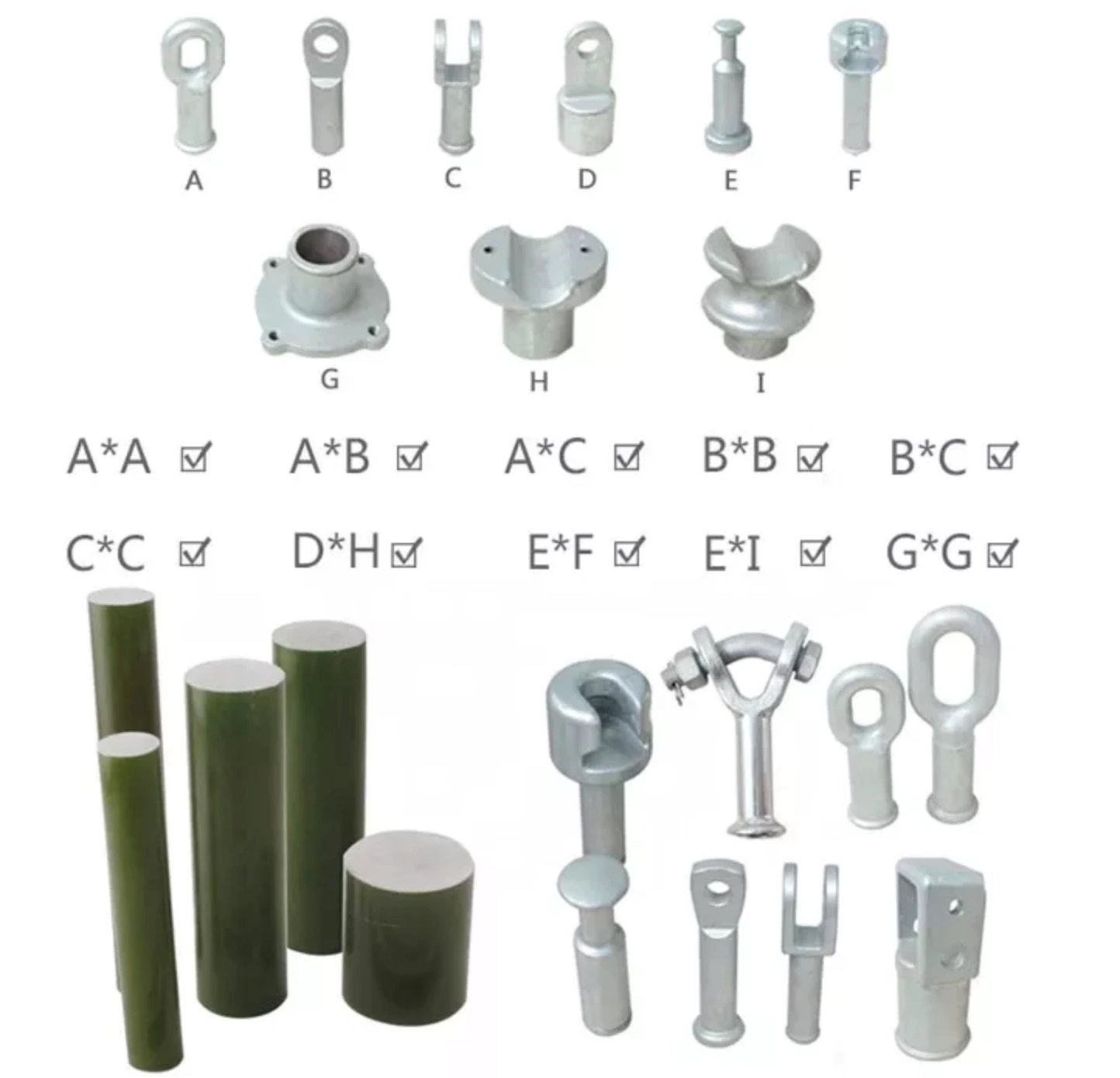

② Metal end fittings, core and sheds connected by new crimping process
③ The thickness of housing > 3mm, uniform thickness, confirm to IEC Standard
④ Acid resistant, high temperature resistant of epoxy fiberglass core
⑤ The material of metal end fittings is used with hot galvanization and technology of rare earth aluminum coating to avoid coating shedding when crimping, prolonging the service life of the product.
