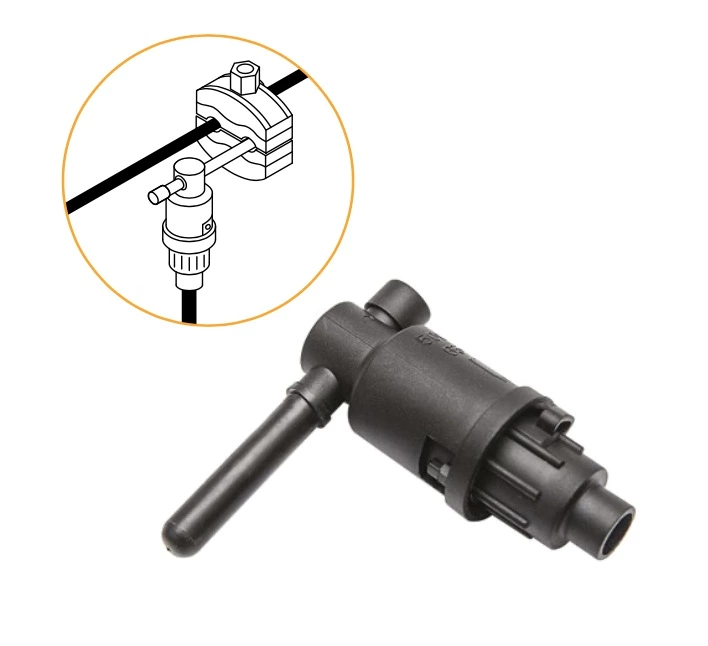

Single DCPAE Connectors with built-in adjustable Fuse holder

Single DCPAE Connectors with built-in adjustable Fuse holder

The DCPAE models with quick connection connections,were planned to make the connection of customers to the lines of low voltage distribution.
They allow the execution of derivations from 4 to 16 mm2 (AWG 12 to 5). its system is adjusted by stainless steel spring and its contacts
Flat, tinned copper, guarantee a safe and durable connection.
The set is ideal to be used in all customer services, installed with the IFC connection element, in addition to its functionas a connecting element, can be used as a cutting elementreplacing the IFC element (connection) by the IFF element (insulator) thus being able to cut off the supply to the user in an accessible point for the Electric Power Distribution Company anddifficult to access for it, includes sealing eyelet to avoid or
detect opening maneuvers.
When combined, DCPAE drop-in quick connect connectorswith NEOZED fuses by replacing the IFC connection elements or IFN cut-off, an additional point of protection is achieved on the line that results in the protection of the connection to the client, a point very prone to theft of electrical energy.
DCPAE drop-in quick connect connectors allow through a firm and secure connection make connections and disconnections to clients without altering the qualities of the connection to the main line, thus being able to reuse the set indefinitely without damaging the main line. Supplied for simple connections.
