LV ABC cable accessories H1 for insulation piercing connector original china factory

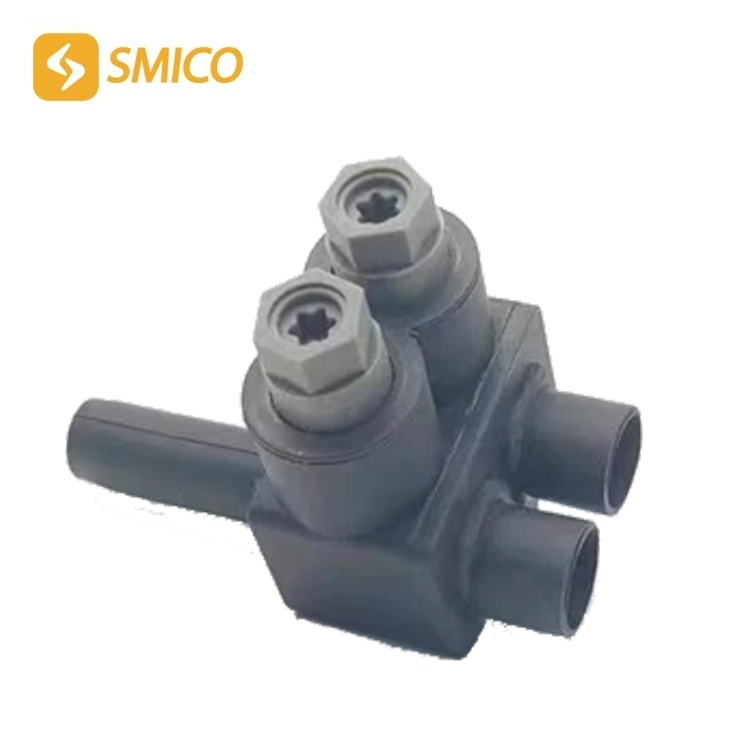

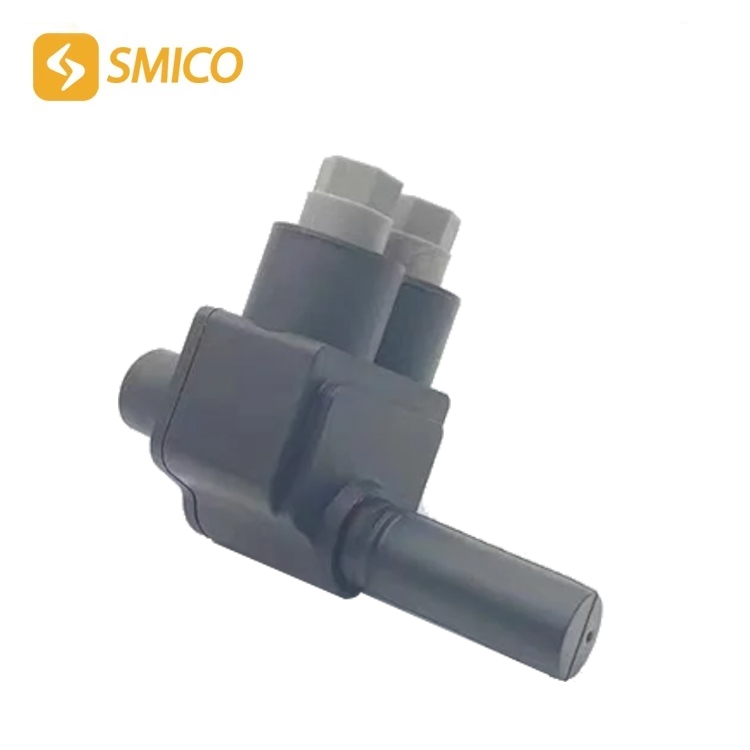

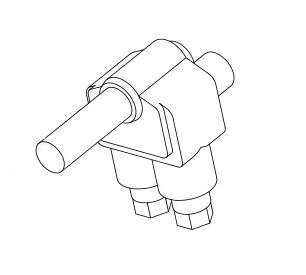

LV ABC cable accessories H1 for insulation piercing connector

• These LV ABC cable accessories H1 for insulation piercing connector withstand the tests described in the French standard
• NFC 33 020 and British standard EATS 43-14.
• Resistant to 6 kV 1 minute after 30 minutes immersion in water.
• All components are secured.
• The metallic shear head is fixed and allows a reliable installation process thanks to its design.
• The flexible end cap permits to check the correct insertion of the conductors.

A broad Usage in the low voltage insuation line, leading the branch connection to the main conductor.

T-connection of low voltage insulation wire service and cable branch connection for building distrubtion system. The material for the inside body is high strenghth aluminum alloy, and the insulation cover is used Anti UV black PVC. The connectors with specially desinged contact teeth, are suitable for the connection of aluminum .

Put the main conductor and branch conductr parallel into the teeth grooves of the clamp, tighten the bolts, pierce the insulation of two conductors to make the conductors connect.

01.What is a mechanical cable lug?

A mechanical lug is a heavy-duty electrical connector that uses screws or bolts to secure a conductor, rather than requiring specialized crimping tools. They are designed for easy installation in the field and are often used for larger cables in electrical and construction applications.

02.Is the clamp easy to install in the field?

Yes, the clamp is designed for easy installation, which can save time and reduce the need for specialized tools or extensive training.

03.Can the clamp accommodate different cable sizes?

Yes, it is designed to accommodate cable sizes ranging from 15 to 95mm², offering versatility for various cable specifications.

04.What materials are used in the construction of the High Electric Power ABC Accessories Tension Clamp?

The clamp is made from high-quality materials such as PA66 (a type of nylon) and aluminum alloy, which provide a combination of strength, durability, and resistance to weather and aging.

05.How to select cable lug size?

Selecting the correct lug size depends entirely on matching its rated conductor range to the precise cross-sectional area of the copper cable.

06.How does a mechanical lug work?

Lugs are crimped or bolted to the end of a wire, creating a secure connection to a terminal or bus bar. They often feature a mechanical set screw or compression mechanism for a reliable and durable attachment. Splices are connectors designed to join two or more wires together, ensuring electrical continuity.

07.Are SMICO Dead End Clamps reusable?

No. They are designed for single use to ensure consistent clamping force, insulation protection, and long-term reliability under mechanical and environmental stress.

08.What are the key features of SMICO Dead End Clamps?

• Corrosion-resistant aluminum alloy body

• Pre-assembled, ready-to-install design

• Operating temperature range: -20°C to 90°C

• Applicable Conductor Cross-Section: 16 mm² – 150 mm²

09.Do SMICO Dead End Clamps come with third-party test reports?

Yes. All SMICO Dead End Clamps are supported by independent third-party test reports, verifying compliance with relevant performance, safety, and durability standards.

10. What standards do SMICO Dead End Clamps comply with?

SMICO Dead End Clamps are manufactured in compliance with the international standard NFC33-042,EN50483-3, ensuring safety and operational performance.
