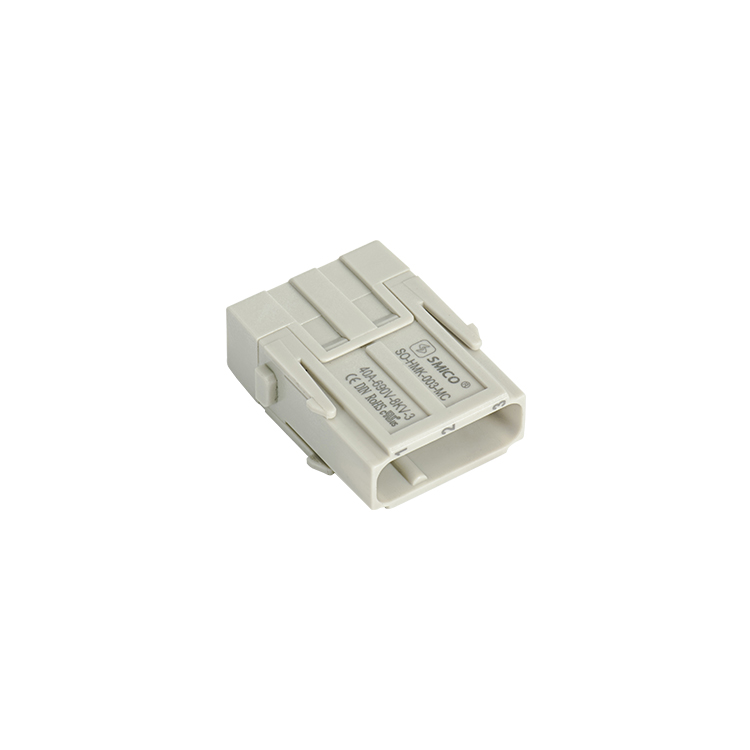

HMK-003-MC SMICO Modular Heavy Duty Connector 40A crimping type 09140033001
- Part:
- SO-HMK-003-MC
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09140033001
| Inserts | |||||||||||
| Number of contacts | 3 | ||||||||||
| Electrical dataacc. to EN 61 984 | |||||||||||
| ---Rated current | 40A | ||||||||||
| ---Rated voltage | 690V | ||||||||||
| ---Rated impulse voltage | 8KV | ||||||||||
| －Pollution degree | 3 | ||||||||||
| Rated voltage acc. to UL | 600V | ||||||||||
| Insulation resistance | ≥10^10Ω | ||||||||||
| Material | polycarbonate | ||||||||||
| Limiting temperatures | -40℃...+125℃ | ||||||||||
| Flammability acc. to UL 94 | V0 | ||||||||||
| Mechanical working life -mating cycles | ≥500 | ||||||||||
| Contacts | |||||||||||
| Material | copper alloy | ||||||||||
| Surface | hard-silver plated | ||||||||||
| Contact resistance | 0.5mΩ | ||||||||||
| Screw terminal | |||||||||||
| ---Wire gauge | 2.5-10mm2 | ||||||||||
| ---AWG | 14-8 | ||||||||||
| ---Hexagonal driver | SW 2 | ||||||||||
| ---Stripping length |
|
||||||||||
| ---Tightening tourque |
|
||||||||||
