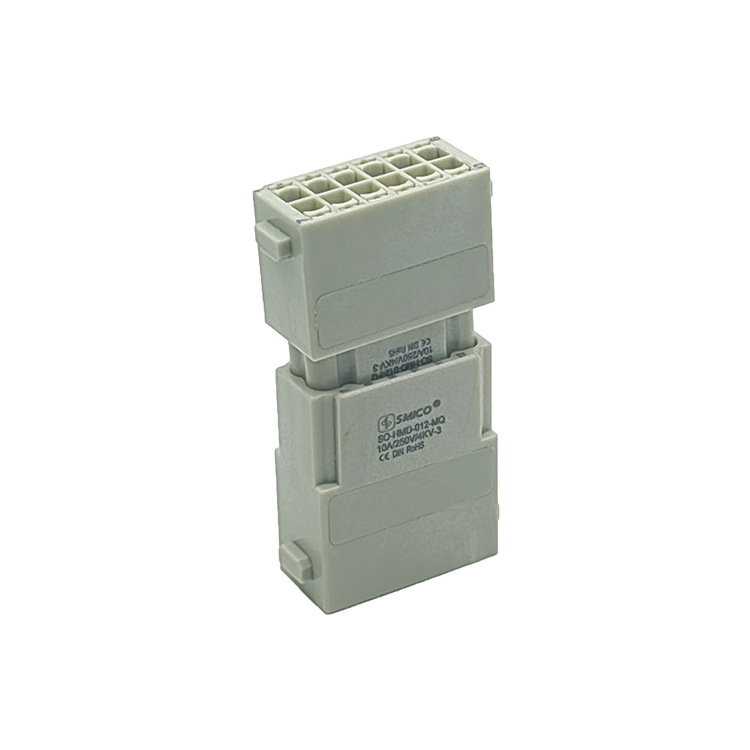

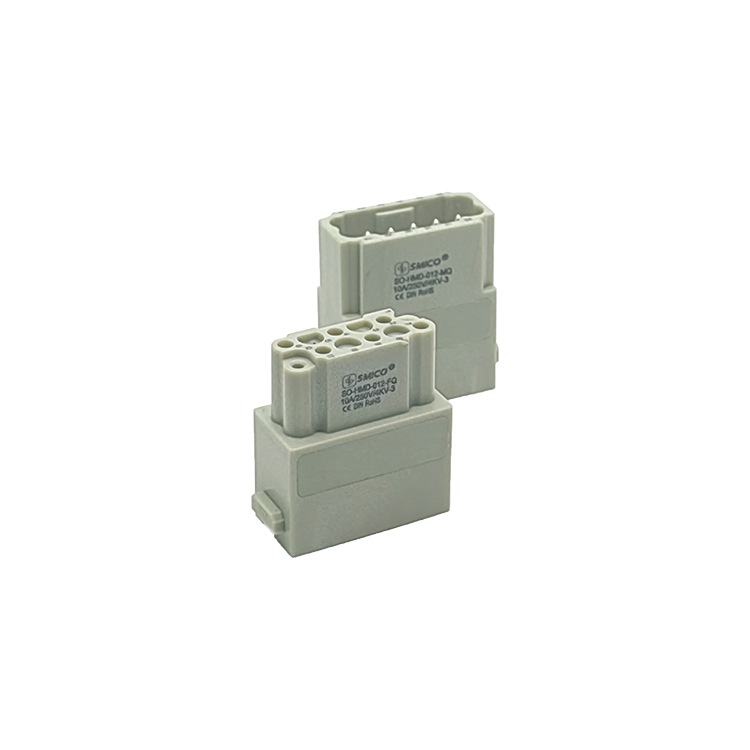

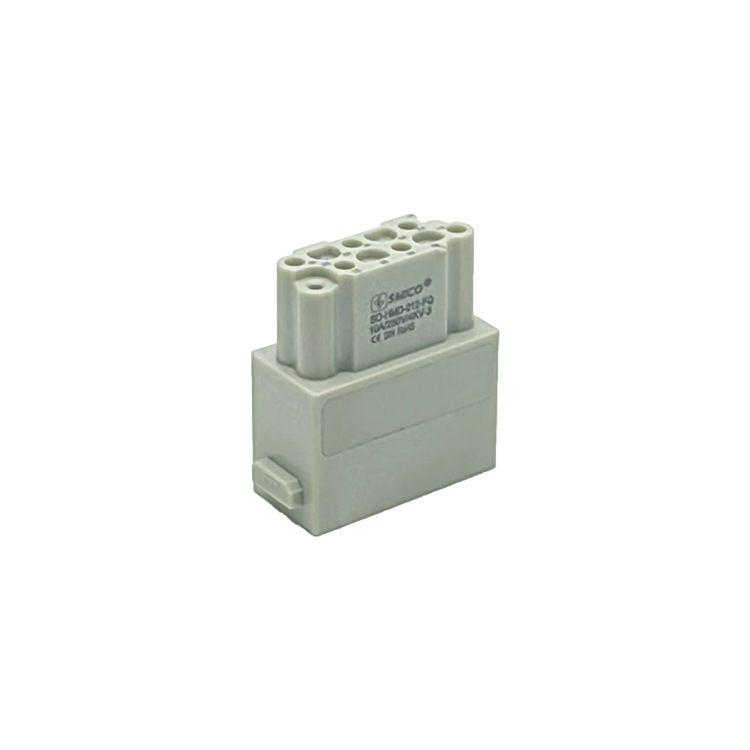

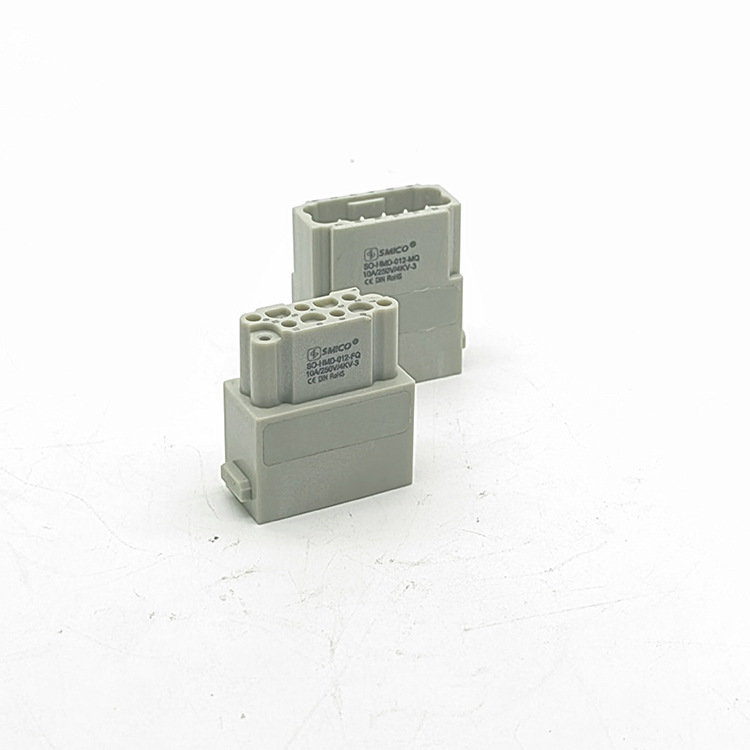

09140122732 HMD-012-FQ female Quick Lock module heavy duty connector
- Number of contacts:
- 12
- Rated current:
- 10A
- Part:
- SO-HMD-012-FQ
- Packaging Details:
- EXPORT CARTON
- Delivery Time:
- WITHIN 7 DAYS
- Payment Terms:
- T/T
- Supply Ability:
- 10000pcs/Month
- Rated voltage conductor:
- 250V
- Order No.:
- 09140122732
| Inserts | |
| Number of contacts | 12 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 10A |
| ---Rated voltage | 250V |
| ---Rated impulse voltage | 4kV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≤ 3 mΩ |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | ≤1mΩ |
| Crimp terminal | |
| ---mm2 | 0.25-1.5mm2 |
