H3A RJ45 H3A-TE-2B-M20-RJ45 Ethernet-Switch module heavy duty connector
- Number of contacts:
- 8
- Rated current:
- 1A
- Part:
- SO-H3A-TK-2B-M20-RJ45/M
- Packaging Details:
- EXPORT CARTON
- Delivery Time:
- WITHIN 7 DAYS
- Payment Terms:
- T/T
- Supply Ability:
- 100000PCS/MONTH
- Rated voltage conductor:
- 50V
Heavy duty connector Ethernet-Switch module - H3A RJ45 H3A-TE-2B-M20-RJ45 Ethernet-Switch module heavy duty connector - China Smico Electrical

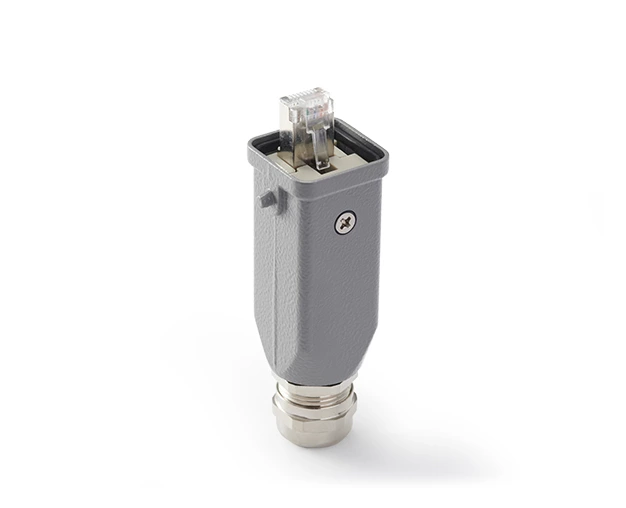

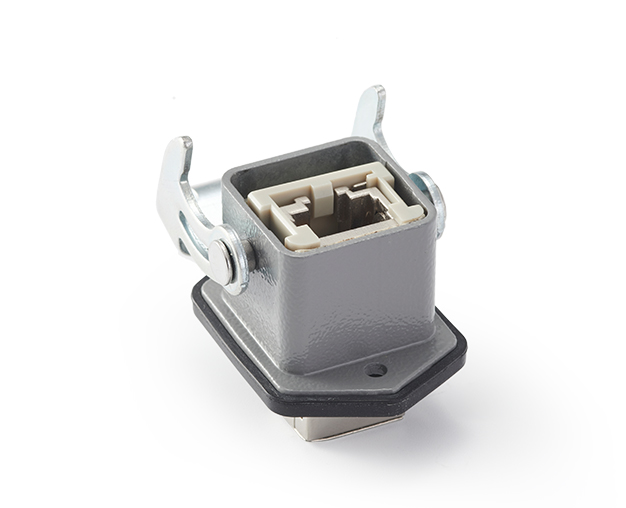

RJ45 Ethernet-Switch module heavy duty connector
RJ45 series heavy duty connector Locking lever protection for RJ45 connector latch,Very short plug design in combination with robust ,bend protection
| Number of contacts | 8 |
| Electrical dataacc. to EN 61 984 | |
| Transmission features | Category 6 /Class E up to 500 MHz; acc. to ISO/IEC 11 801:2002 and EN 50 173-1 |
| Transmission rate | 10/100/1000 Mbit/s |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+85℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
SMICO Heavy duty connectors Applications :
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
