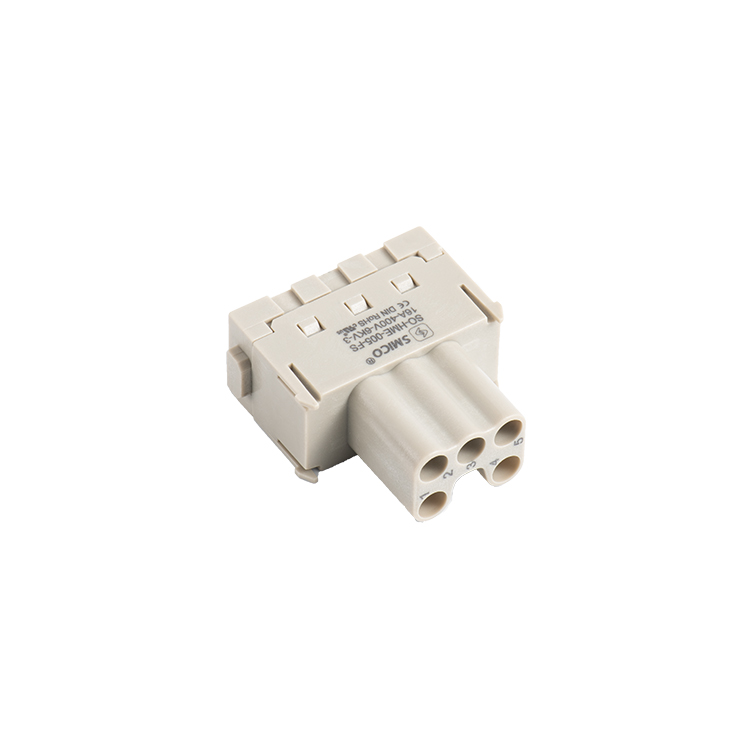

09140052716 HME-005-FS 16A female rectangular Inserts for heavy duty connector
- Number of contacts:
- 5
- Rated current:
- 16A
- Part:
- SO-HME-005-FS
- Packaging Details:
- Export carton
- Delivery Time:
- with 7 days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 400V
- Product Certification:
- CE ROHS DMT
- Order No.:
- 09140052616
09140052716 HME-005-FS 16A female rectangular Inserts for heavy duty connector
| Inserts | |
| Number of contacts | 5 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6KV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | 0.5mΩ |
| Screw terminal | |
| ---Wire gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
