09140052716 HME-005-FQ 5 Pins Female Quick Lock New Type Modular Heavy Duty Connector Insert
- Number of contacts:
- 5
- Rated current:
- 16A
- Part:
- SO-HME-005-FQ
- Packaging Details:
- Export carton
- Delivery Time:
- with 7 days
- Payment Terms:
- T/T
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 400V
- Product Certification:
- CE ROHS DMT
- Order No.:
- 09140052716
Description
Specification

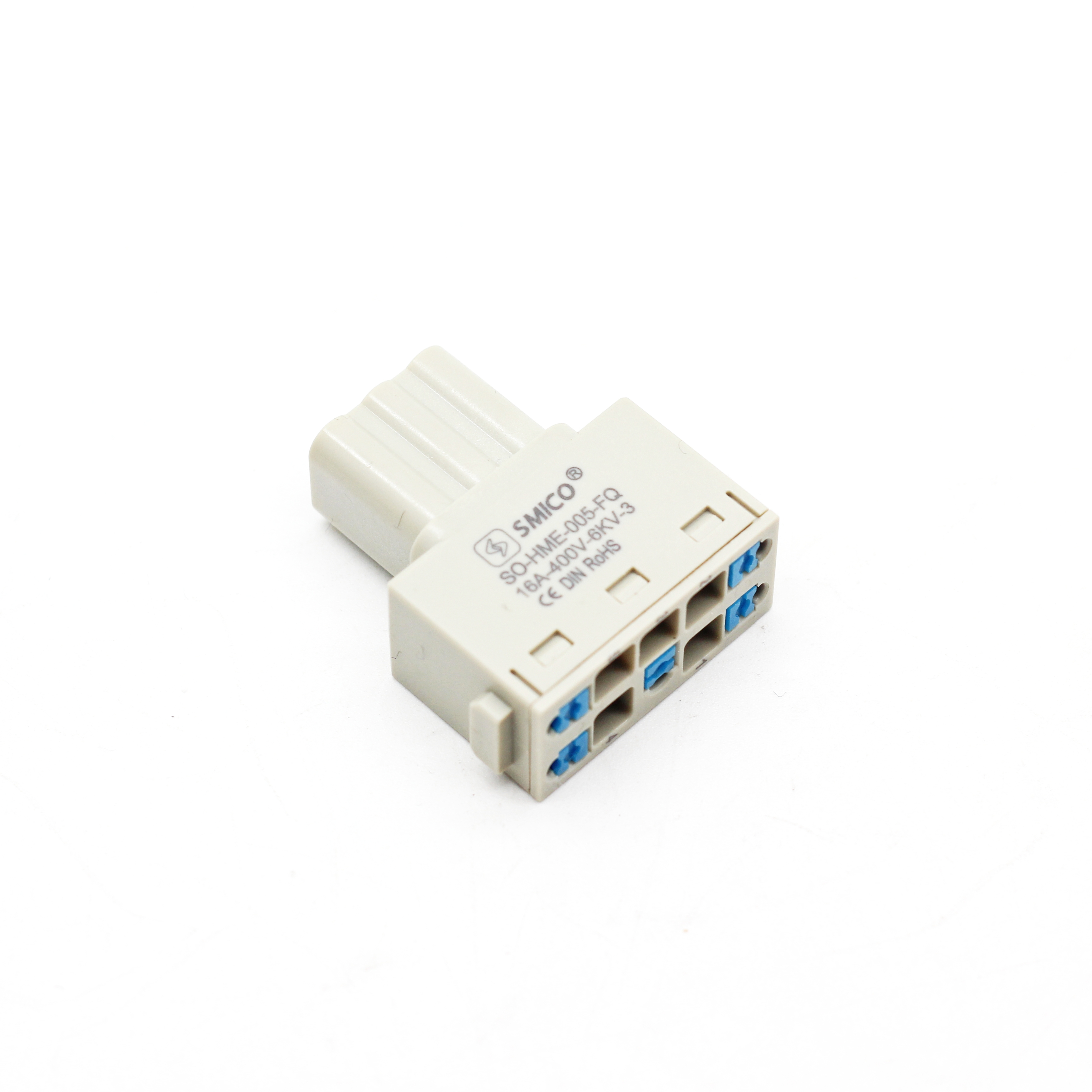

09140052716 HME-005-FQ 5 pins female quick lock new type modular heavy duty connector insert
| Inserts | |
| Number of contacts | 5 |
| Electrical dataacc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage | 400V |
| ---Rated impulse voltage | 6KV |
| －Pollution degree | 3 |
| Rated voltage acc. to UL | 600V |
| Insulation resistance | ≥10^10Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life -mating cycles | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-silver plated |
| Contact resistance | 0.5mΩ |
| Screw terminal | |
| ---Wire gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
Advantage

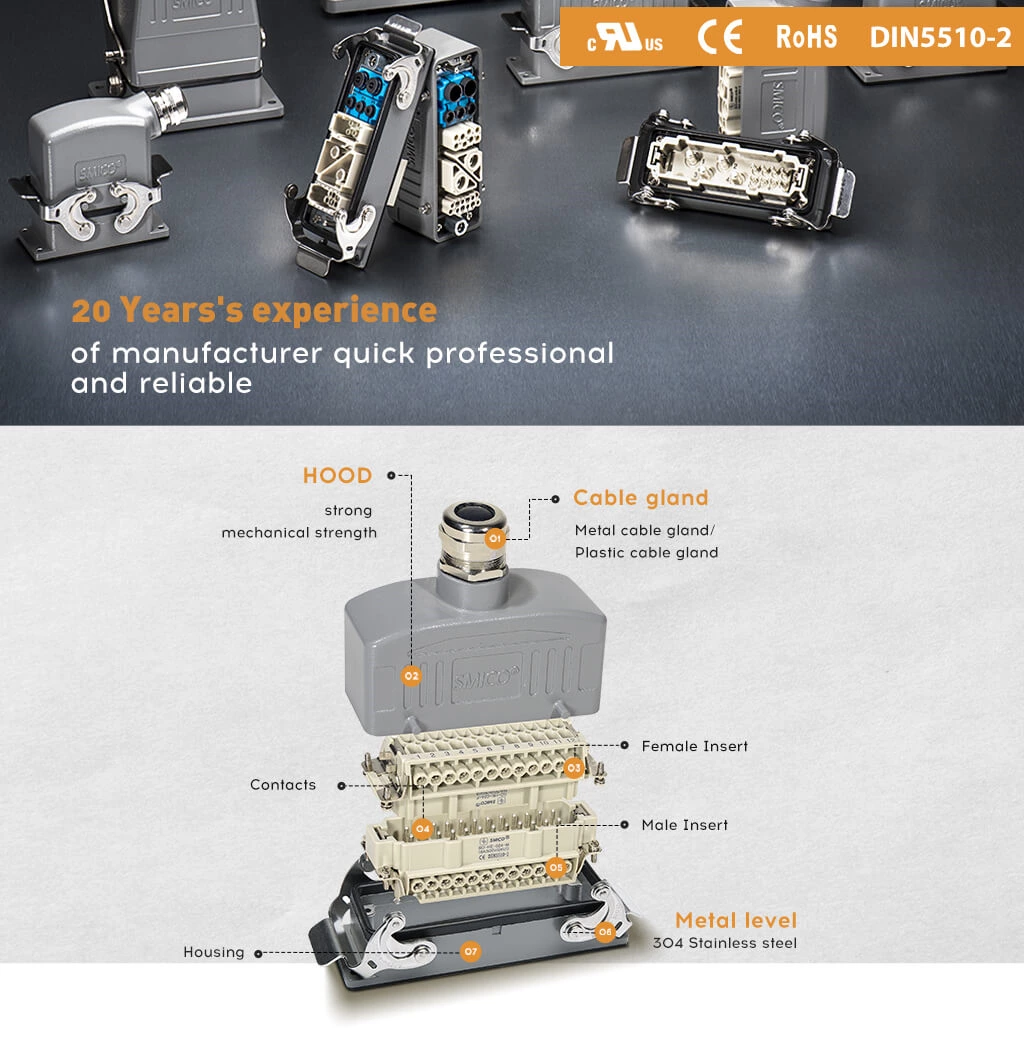

SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| 09140052716 HME-005-FQ 5 Pins Female Quick Lock New Type Modular Heavy Duty Connector Insert | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
