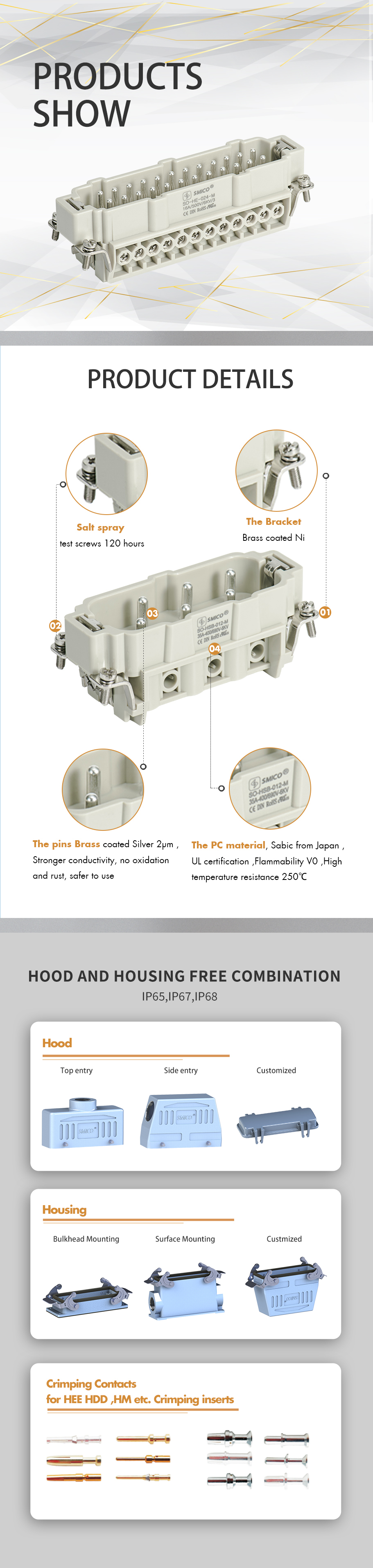

HE-048-M Automotive Electrical connectors 48 pin Male Inserts IP65 use for robort 09330242611
- Number of contacts:
- 48 PIN
- Rated current:
- 16A
- Part:
- SO-HE-048-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09330242611
Description
Specification
| Inserts | Suitable Shell:48BHood/Housing |
| Number of contacts | 48 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H48B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HE-024-M(1-24) SO-HE-048-M(25-48) | SO-HE-024-F(1-24) SO-HE-048-F(25-48) |
| H | 09330242601 09330242611 | 09330242701 09330242711 |
| ILME | CNEM 24 T CNEM 24 TN | CNEF 24 T CNEF 24 TN |
| TE | ||
| LAPP EPIC | 10.1960 10.2040 | 10.1970 10.2050 |
| PHOENIX | 1648296 1584949 | 1648306 1584949 |
| MOLEX | ||
| WEIDMULLER | HDC HE 24 MS HDC HE 24 MS 25-48 | HDC HE 24 FS HDC HE 24 FS 25-48 |
| WIELAND | 70.310.2402.0 70.310.4840.0 | 70.300.2402.0 70.300.4840.0 |
| AMPHENOL |

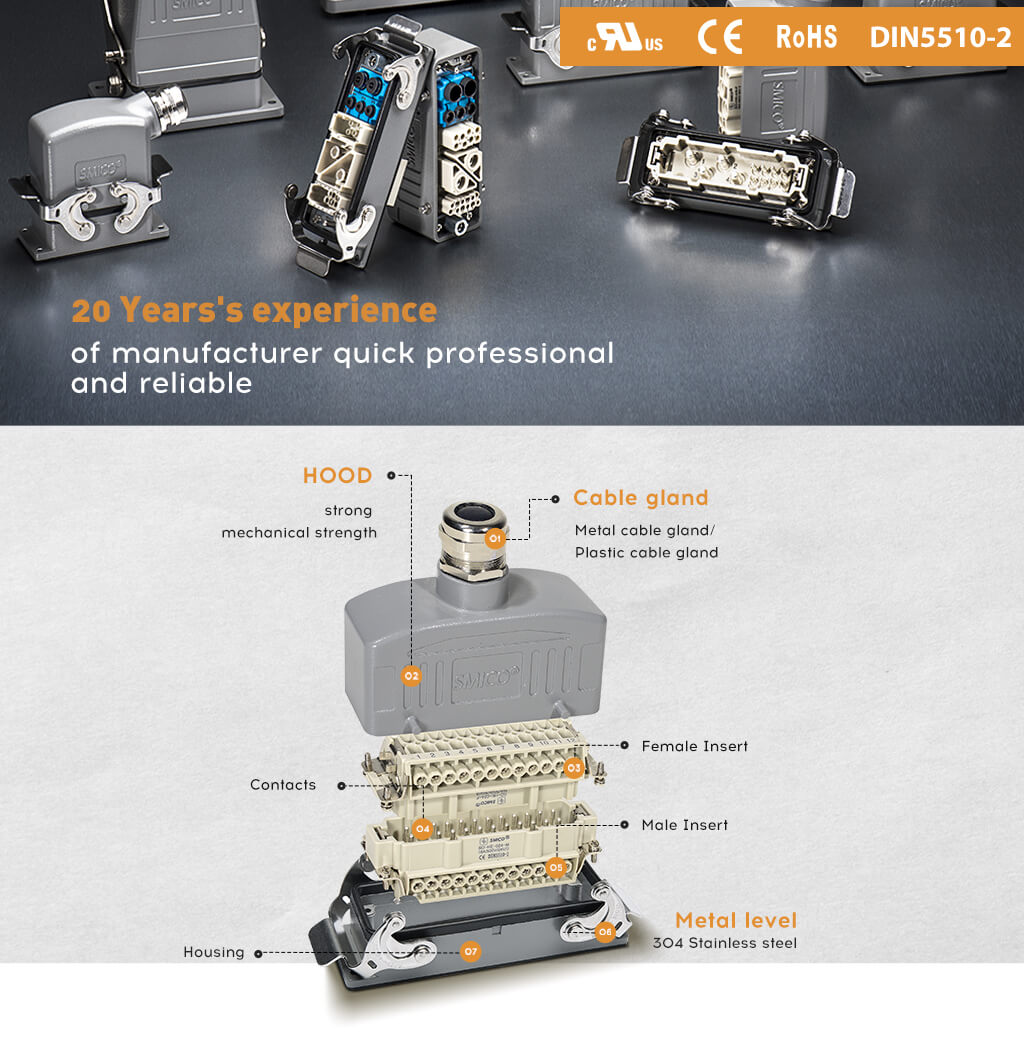

Heavy Duty Connectors (HDC) are rectangular industrial connectors designed to transmit power, data and signal in the toughest of conditions. In environments with vibrations, risk of dust, temperature challenges and mechanical impact, our HDC connectors provide a reliable solution with rock fall safe aluminum enclosures with protection degree from IP65 up to IP69k. Approved according to EN/IEC 61984 standard, our HDC connectors range from 10A to 650A, and are available with up to 216 contacts.
The HDC portfolio consists of:
- Hoods, housings and bases: available in different protection degrees IP65, IP67, IP68 and IP69k
- Contact systems: ranging from 5A to 650A in screw, crimp and cage clamp termination
- Inserts: available in up to 216 pins in one connector for crimp, screw termination or cage clamp
Advantage
SMICO heavy duty connector
-
Compatible with other brands
-
accept OEM /ODM
-
accept customized colour : like blue ,black
-
The popular parts in stock , delivery time fast
-
Export Packing : Packing for each items respectively or packing for full one set
Location
- Machinery
- Automation
- Robotics
- Rail
- Energy Distribution
- Renewable Energy
- Construction Machinery
- Professional Light and Sound
Packaging
Videos
Downloads
| HE-048-M Automotive Electrical connectors 48 pin Male Inserts IP65 use for robort 09330242611 | Download |
FAQs
01.How many employees are there in your factory?
We have more than 130 employees, including the entire production chain.
02.Whether to provide technical documents?
Sure. If there is anything unclear about the product, we will provide you with as detailed technical documents as possible.
03.Does this insert can fit with my frame?
Our module insert can fit with Harting,ILME,Weidmuller,TE and other brand.
04.How to order?
Please email us your purchase order and we will send you a quotation and a proforma invoice.
