32 pin HE series Heavy duty cable connectors SIBASS
- Number of contacts:
- 32 pin
- Rated current:
- 16A
- Part:
- SO-HE-032-M
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Rated voltage conductor:
- 500V
- Product Certification:
- UL CUL CE ROHS DMT
- Order No.:
- 09330162611
Heavy duty connector SIBASS - 32 pin HE series Heavy duty cable connectors SIBASS - China Smico Electrical

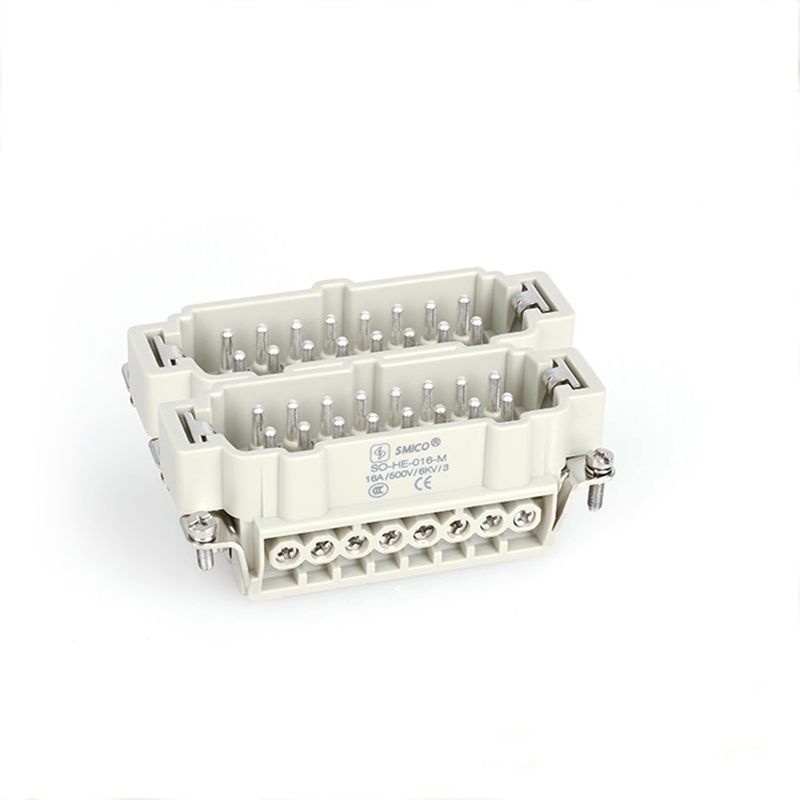

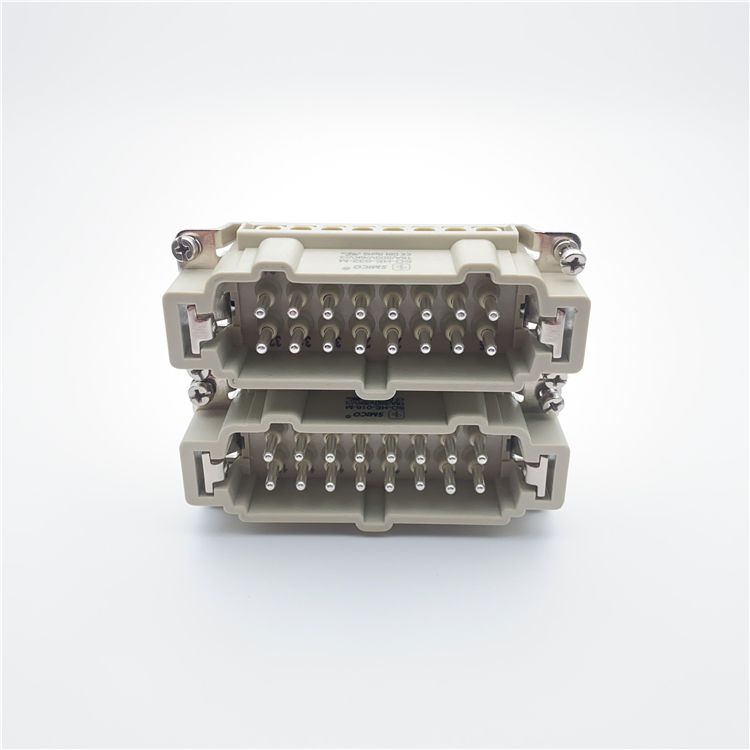

32 pin HE series Heavy duty cable connectors SIBASS
SMICO heavy duty connectors HE series is popular type , this from 6pin to 48pin , 32pin is 2x16pin connectors , this is screw type ,we also have crimping ,cage type .
32Poles+PE,16A,screw Male insert
| Inserts | Suitable Shell:32BHood/Housing |
| Number of contacts | 32 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H32B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HE-016-M SO-HE-032-M | SO-HE-016-F SO-HE-032-F |
| H | 09330162601 | 09330162701 |
| ILME | CNEM 16 T CNEM 16 TN | CNEF 16 T CNEF 16 TN |
| TE | ||
| LAPP EPIC | 10.1940 10.2020 | 10.1950 10.2030 |
| PHOENIX | 1648238 1584871 | 1648241 1584884 |
| MOLEX | ||
| WEIDMULLER | HDC HE 16 MS HDC HE 16 MS 17-32 | HDC HE 16 FS HDC HE 16 FC 17-32 |
| WIELAND | 70.310.1602.0 70.310.3202.0 | 70.300.1602.0 70.300.3202.0 |
| AMPHENOL |
