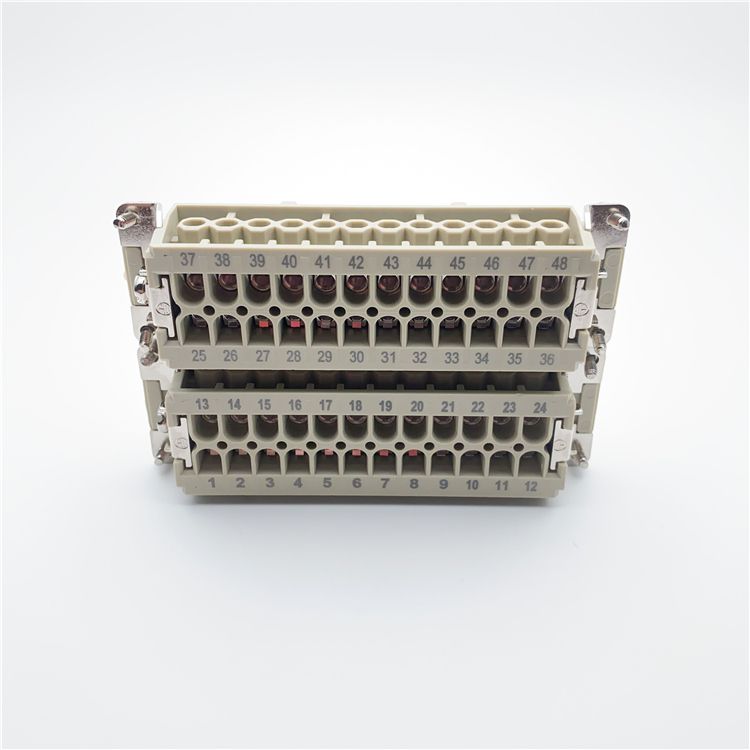

HE-048 Automotive Electrical connectors 48 pin Female Inserts IP65 use for robort
- Part:
- SO-HE-048-F
- Packaging Details:
- Standard Export Cartons
- Delivery Time:
- Within 7 Days
- Payment Terms:
- L/C, T/T, Western Union, Paypal
- Supply Ability:
- 100000 pcs per month
- Product Certification:
- UL CUL CE ROHS DMT IEC-61984
- Order No.:
- 09330242711
| Inserts | Suitable Shell:48BHood/Housing |
| Number of contacts | 48 |
| Electrical data acc. to EN 61 984 | |
| ---Rated current | 16A |
| ---Rated voltage conductor | 500V |
| ---Rated impulse voltage | 6kV |
| ---Pollution degree | 3 |
| ---Pollution degree 2 also | 16A 400/690V 6kV 2 |
| Rated voltage acc. to UL/CSA | 600V |
| Insulation resistance | ≥1010Ω |
| Material | polycarbonate |
| Limiting temperatures | -40℃...+125℃ |
| Flammability acc. to UL 94 | V0 |
| Mechanical working life(mating cycles) | ≥500 |
| Contacts | |
| Material | copper alloy |
| Surface | hard-gold plated |
| hard-silver plated | |
| Contact resistance | ≤1mΩ |
| Screw terminal | |
| ---Wrie gauge | 0.14-2.5mm2 |
| ---AWG | 26-14 |
| ---Tightening/Test torque | 0.5N·m |
| ---Stripping length | 7.0mm |
SMICO heavy duty connector can match the following interchangeable.
The hood and housing for H48B .
| Suppier | Plug insert | Socket insert |
| SMICO | SO-HE-024-M(1-24) SO-HE-048-M(25-48) | SO-HE-024-F(1-24) SO-HE-048-F(25-48) |
| H | 09330242601 09330242611 | 09330242701 09330242711 |
| ILME | CNEM 24 T CNEM 24 TN | CNEF 24 T CNEF 24 TN |
| TE | ||
| LAPP EPIC | 10.1960 10.2040 | 10.1970 10.2050 |
| PHOENIX | 1648296 1584949 | 1648306 1584949 |
| MOLEX | ||
| WEIDMULLER | HDC HE 24 MS HDC HE 24 MS 25-48 | HDC HE 24 FS HDC HE 24 FS 25-48 |
| WIELAND | 70.310.2402.0 70.310.4840.0 | 70.300.2402.0 70.300.4840.0 |
| AMPHENOL |
