Copper Terminal block

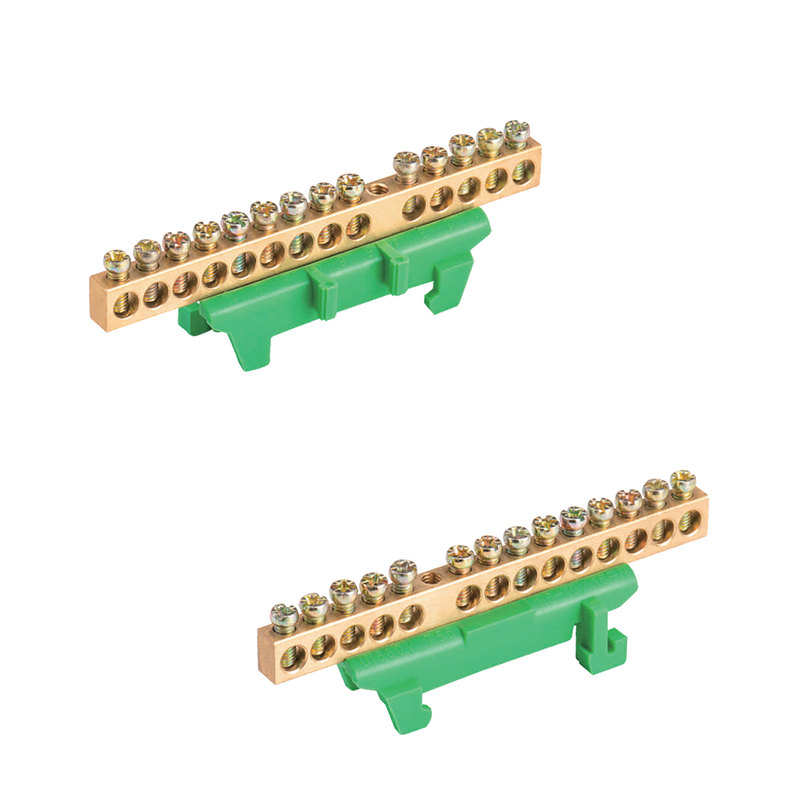

Copper Terminal Blocks T007 Series M4 distribution block

Terminal block Material PA66 Grade of flame retardant VO Metal Meterial Brass nickel plated Features Screw Barrier Terminal Block. Each of terminals is insulated from the next, prevent circuit in diso

...
Model Number:
Terminal block T007
Conductor Range:
60.5mm-210mm
Standard:
IEC 60947-7-1
Material:
Brass Nickel Plated
Bolt:
Zinc Coated Steel
Voltage:
500V
Tightening Torque:
2-3NM
Operating Temperature:
-40~+85℃
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
CE

Terminal block

Material PA66
Grade of flame retardant VO
Metal Meterial Brass nickel plated



Features

Screw Barrier Terminal Block.

Each of terminals is insulated from the next, prevent circuit in disorder.

The set screws secure wires reliable contact and help prevent accidental contact with the terminals.

Used for wires connecting of home appliances, electronic circuits, machines, etc.

With Blue Neutral and Green PE type



Catalog Number

T007

Copper Terminal Blocks T007 Series M4 distribution block

Certifications

        Copper Terminal Blocks T007 Series M4 distribution block

Material

Ways 6/7/8/10/12/14/16
Spec 6X9
Screws M4
Diameter 5.0
Housing PA66/V-0
Cover PC
Conductor Tin-Coated Brass

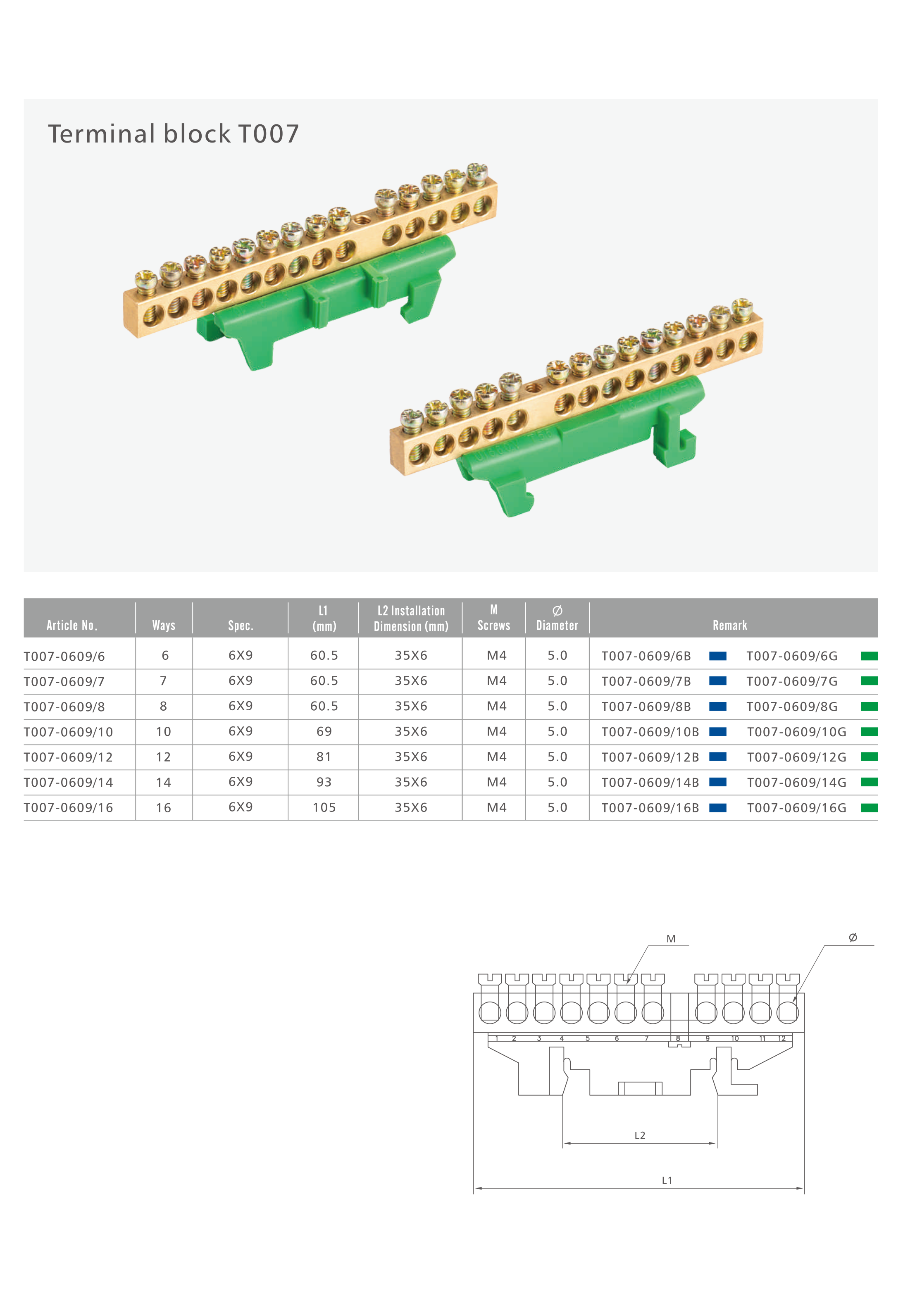

Ways Conductor  L1(mm) L2(mm) spec Screws Diameter
6 0609/7 60.5 35X6 6X9 M4 5.0
7 0609/7 60.5 35X6 6X9 M4 5.0
8 0609/8    60.5 35X6 6X9 M4 5.0
10 0609/10   69 35X6 6X9 M4 5.0
12 0609/12   81 35X6 6X9 M4 5.0
14 0609/14   93 35X6 6X9 M4 5.0
16 0609/16   105 35X6 6X9 M4 5.0







Electrical Date

Standards IEC 60947-7-1
Voltage(V) 500
Current(A) 125
Icw(KA) 4.5
Ipk(KA) 20





Diagrams

Copper Terminal Blocks T007 Series M4 distribution block
