Copper Terminal Blocks T005 Series Distribution Block
- Conductor Range:
- 86mm-131mm
- Standard:
- IEC 60947-7-1
- Bolt:
- Zinc Coated Steel
- Voltage:
- 500V
- Tightening Torque:
- 2-3NM
- Operating Temperature:
- -40～+85℃
- Color:
- Gray-Blue
- Packaging Details:
- Carton
- Certification:
- CE

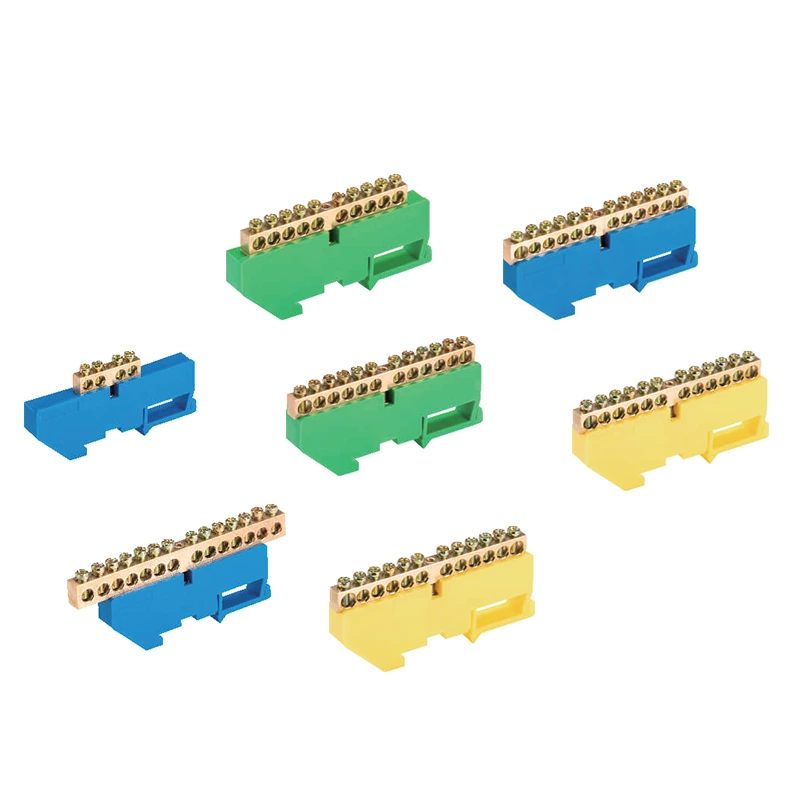

Description
Terminal block
| Material | PA66 |
| Grade of flame retardant | VO |
| Metal Meterial | Brass nickel plated |
Catalog Number
T005
Certifications
Specification
Material
| Ways | 4/6/8/10/12/14/16 |
| Spec | 6X9/8X12 |
| Screws | M4 M5 |
| Diameter | 5.2/6.0 |
| Housing | PA66/V-0 |
| Cover | PC |
| Conductor | Tin-Coated Brass |
| Ways | Conductor T005 | L1(mm) | L2(mm) | spec | Screws | Diameter |
| 4 | 0609/4 0812/4 | 86/86 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 6 | 0609/6 0812/6 | 86/86 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 8 | 0609/8 0812/8 | 86/86 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 10 | 0609/10 0812/10 | 86/86 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 12 | 0609/12 0812/12 | 87.5/101 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 14 | 0609/14 0812/14 | 98/116 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
| 16 | 0609/16 0812/16 | 111/131 | 35X6 | 6X9/8X12 | M4/M5 | 5.2/6.0 |
Electrical Date
| Standards | IEC 60947-7-1 |
| Voltage(V) | 500 |
| Current(A) | 125 |
| Icw(KA) | 4.5 |
| Ipk(KA) | 20 |

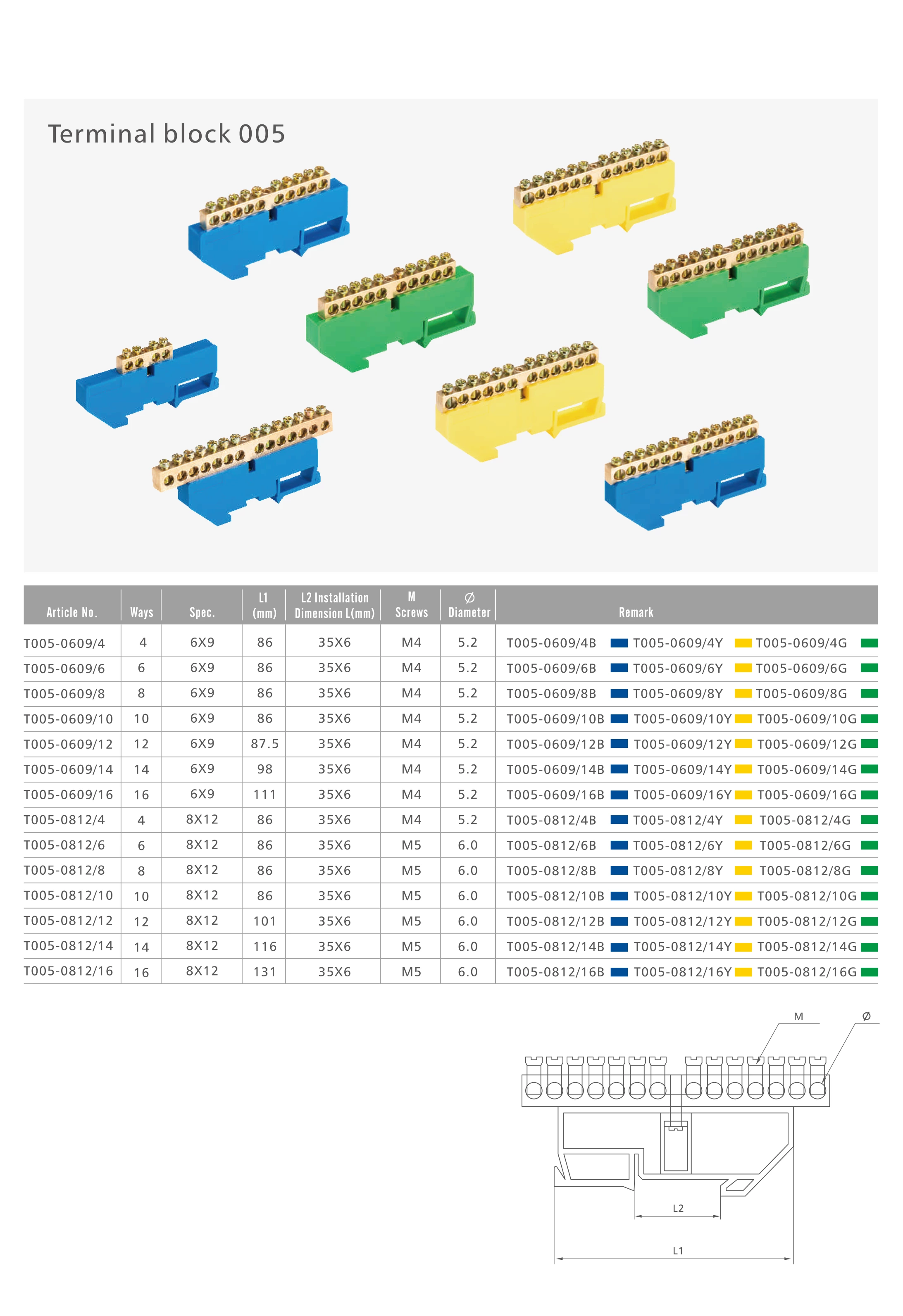

Diagrams
Advantage
Screw Barrier Terminal Block.
Each of terminals is insulated from the next, prevent circuit in disorder.
The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
Used for wires connecting of home appliances, electronic circuits, machines, etc.
With Blue Neutral and Green PE type

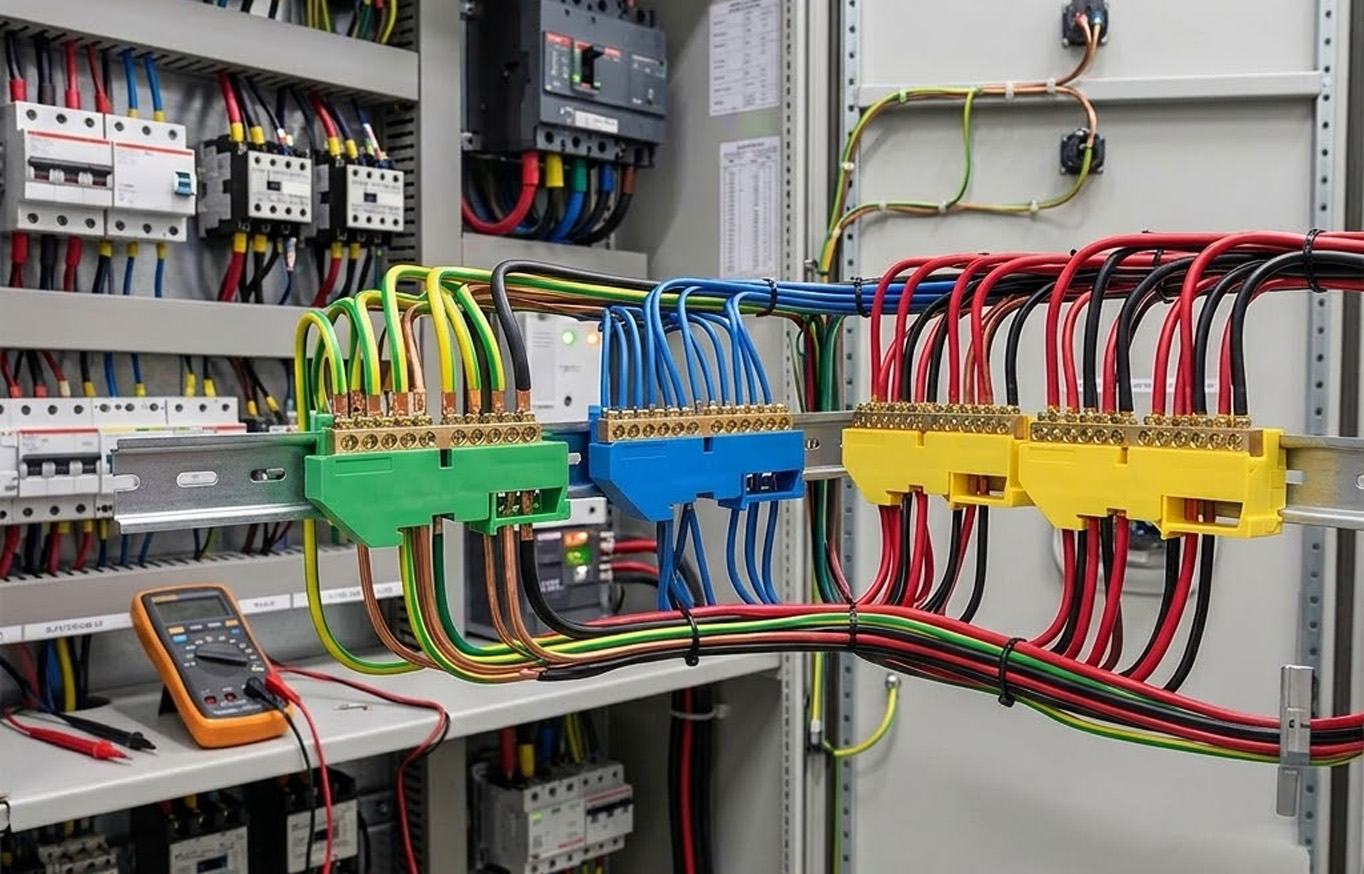

Location
Packaging
FAQs
01. Manufacturer Offering Competitive Pricing and High Quality.
We are a direct-sales manufacturer offering both competitive pricing and high-quality products, helping you gain a foothold in the market—specifically in Wenzhou, Zhejiang Province, China. You are warmly invited to visit our company.
02. OEM/ODM Services.
We are a manufacturer backed by an exceptional and highly collaborative team.
03. Standard Payment Terms.
We accept various payment methods, including Telegraphic Transfer (TT) in advance, Letters of Credit (L/C), Western Union, and others. Please feel free to contact us if you have any questions!
04. Warranty Period.
1.5 years. Any quality issues will be resolved through free replacements included with your next order.
05. Free Samples.
Yes, we provide samples of smaller products for your quality assessment; you are only required to cover the courier fees.
