Copper Terminal block

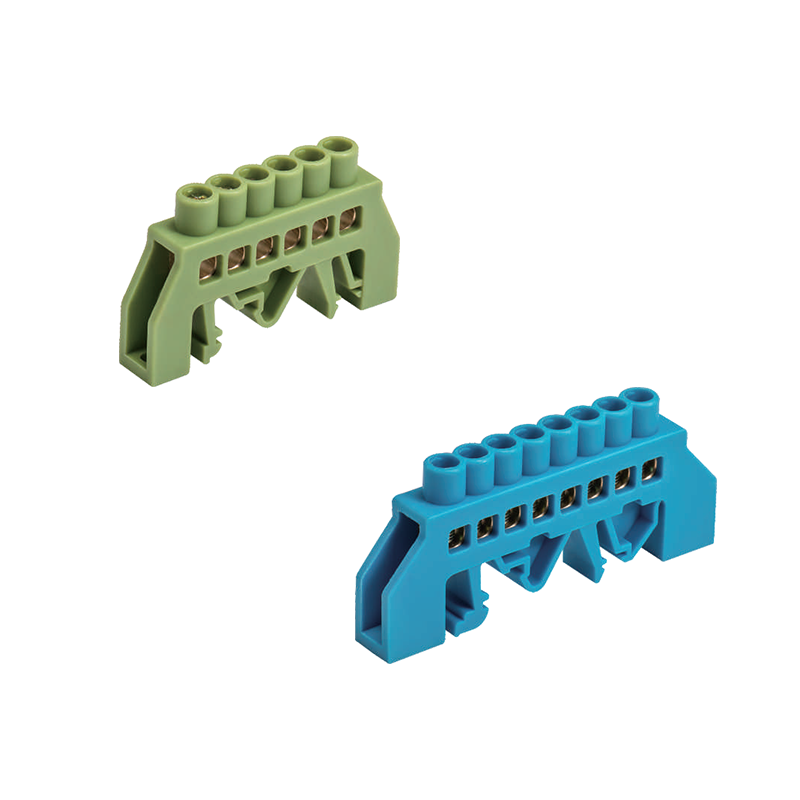

M4/M5 Copper Terminal Blocks T009 Series distribution block

Model Number:
Terminal block T005
Conductor Range:
57.5mm-163mm
Standard:
IEC 60947-7-1
Bolt:
Zinc Coated Steel
Voltage:
500V
Tightening Torque:
2-3NM
Operating Temperature:
-40~+85℃
Color:
Gray-Blue
Packaging Details:
Carton
Certification:
CE

Terminal block

Material PA66
Grade of flame retardant VO
Metal Meterial Brass nickel plated



Features

Screw Barrier Terminal Block.

Each of terminals is insulated from the next, prevent circuit in disorder.

The set screws secure wires reliable contact and help prevent accidental contact with the terminals.

Used for wires connecting of home appliances, electronic circuits, machines, etc.

With Blue Neutral and Green PE type



Catalog Number

T009

M4/M5 Copper Terminal Blocks T009 Series distribution block

Certifications

        M4/M5 Copper Terminal Blocks T009 Series distribution block

Material

Ways 6/8/10/12/14/16
Spec 6X9/8X12
Screws M4 M5
Diameter 5.0/7.0
Housing PA66/V-0
Cover PC
Conductor Tin-Coated Brass







Electrical Date

Standards IEC 60947-7-1
Voltage(V) 500
Current(A) 125
Icw(KA) 4.5
Ipk(KA) 20

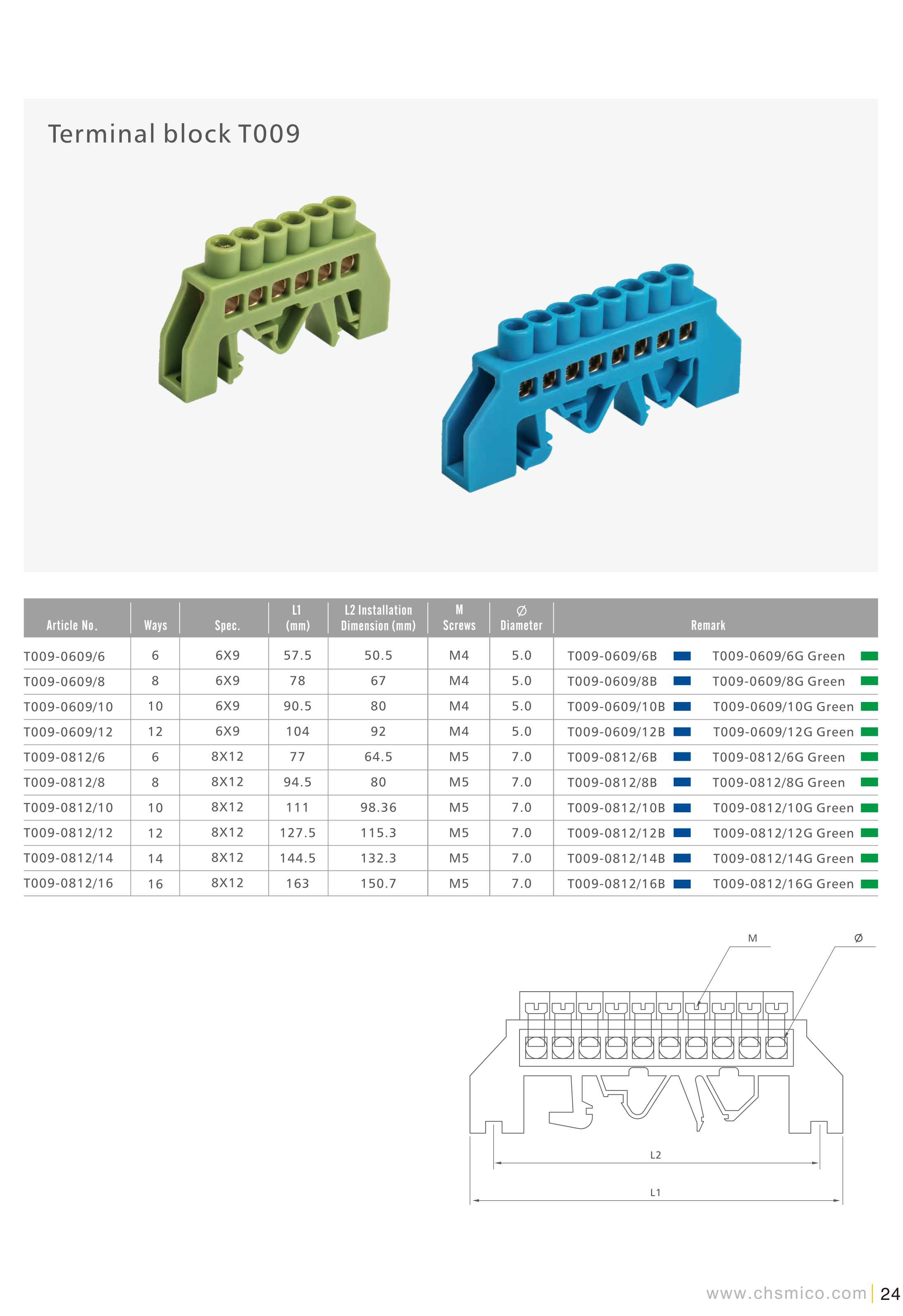

Diagrams

M4/M5 Copper Terminal Blocks T009 Series distribution block
