Cable Lugs

Shear bolt Cable Lug Step less Shear Bolt Connectors

Model Number:
Shear bolt Cable Lug Step less Shear Bolt Connectors
Conductor Range:
25-500mm²
Standard:
IEC1238-1
Supply Ability:
100000/Month
Bolt:
1-6

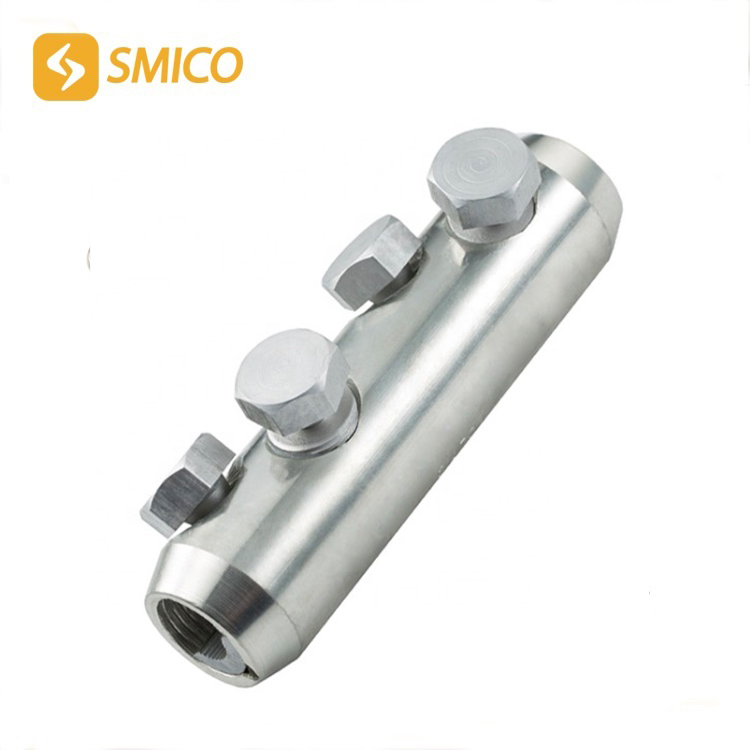

Shear bolt Cable Lug Step less Shear Bolt Connectors

Mechanical Connector 42Kv With 2 Hexagon Socket Screws Or 2 Shear-off-head Bolts And Oil Stop

Mechanical Connector up t0 42 kV with shear-off-head bolts and transfers grooving

Connector Body: high strength aluminium alloy

Bolts: tin - plated, aluminium alloy

Surface:

Connector Body: tin-plated

Center rings: center rings are enclosed for centric conductor positioningShear bolt Cable Lug Step less Shear Bolt Connectors

1.Provide quality guarantee

2.Provide customers with special customized services

3.Buy terminal to send hydraulic tools

4.Fast delivery

5.Free sample

6.Cost-effective
