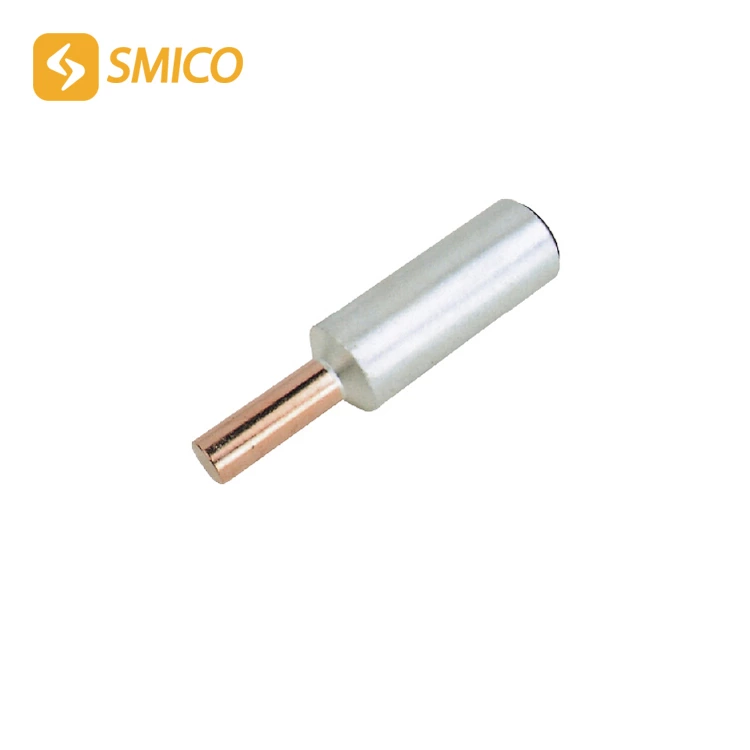

GTLZ copper aluminium bright bimetal pin for Non Tesion aluminum connection in copper clamp
- Model Number:
- GTLZ
- Conductor Range:
- 25-300mm²
- Standard:
- DIN46267 IEC 61238-1
- Material:
- E-Cu,AI-99.6%
Description
GTLZ copper aluminium bright bimetal pin for Non Tesion aluminum connection in copper clamp
Description:
Material:E-CU A1-99.5%
Surface treatment:Bright
Product property:It is used for non-tesion aluminium connection in copper clamp with marking for correct crimping friction welding well done the aluminium barrel capped is filled with joint compound to avoid oxidization.

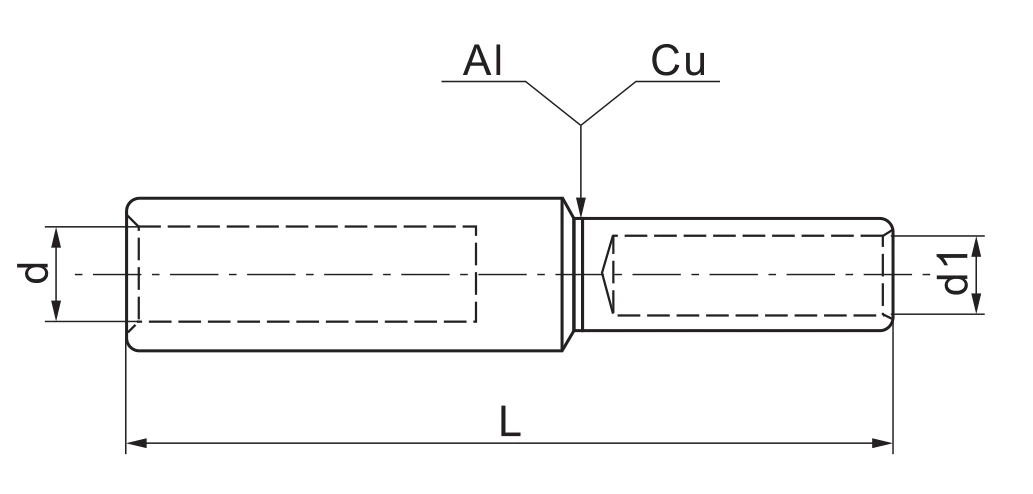

| Modle | Dimensions（mm） | ||
| L | d | d1 | |
| GTLZ-25 | 58 | 6.8 | 6 |
| GTLZ-35 | 71 | 8 | 7 |
| GTLZ-50 | 74 | 10 | 8 |
| GTLZ-70 | 87 | 11.5 | 10 |
| GTLZ-95 | 91 | 13.2 | 12 |
| GTLZ-120 | 97 | 15 | 12 |
| GTLZ-150 | 108 | 16.5 | 12 |
| GTLZ-185 | 116 | 18.5 | 14 |
| GTLZ-240 | 128 | 21.5 | 16 |
| GTLZ-300 | 131 | 23.3 | 18 |
