ATL copper-aluminium bimetal lug cable and wire terminal connector
CAL-BS copper bimetal lug b type cable and wire terminals
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an...
- Model Number:
- ATL
- Material:
- E-Cu ; AI-99.6% Bright
ATL copper-aluminium bimetal lug cable and wire terminal connector
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.

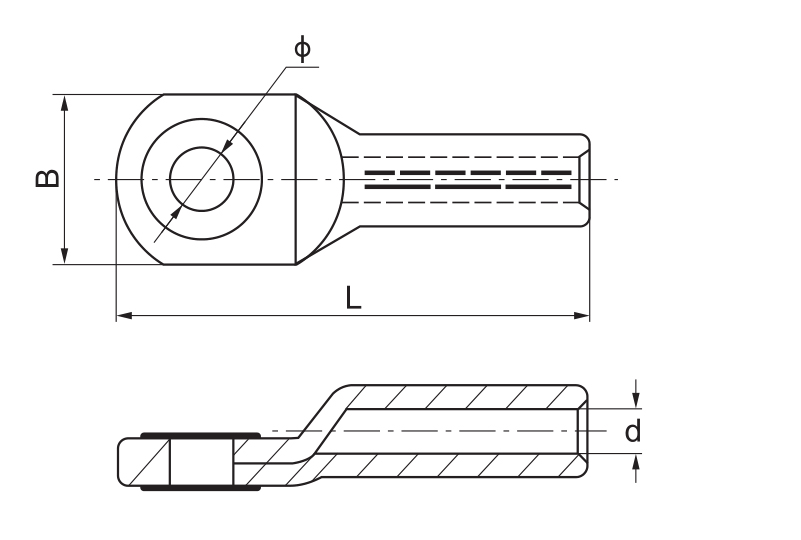

| Modle | Dimensions | |||
| L | d | B | φ | |
| ATL 10-6 | 63 | 5 | 18 | 6.5 |
| ATL 10-8 | 63 | 5 | 22 | 8.5 |
| ATL 16-8 | 63 | 5.8 | 22 | 8.5 |
| ATL 16-10 | 65 | 5.8 | 25 | 10.5 |
| ATL 25-8 | 71 | 6.8 | 22 | 8.5 |
| ATL 25-10 | 73 | 6.8 | 25 | 10.5 |
| ATL 25-12 | 73 | 6.8 | 27.5 | 13 |
| ATL 35-8 | 79 | 8 | 22 | 8.5 |
| ATL 35-10 | 80 | 8 | 26 | 10.5 |
| ATL 35-12 | 82.5 | 8 | 30 | 13 |
| ATL 50-8 | 84.5 | 9.8 | 25 | 8.5 |
| ATL 50-10 | 86 | 9.8 | 27 | 10.5 |
| ATL 50-12 | 87.5 | 9.8 | 30 | 13 |
| ATL 70-8 | 98.5 | 11.2 | 28 | 8.5 |
| ATL 70-10 | 100 | 11.2 | 29 | 10.5 |
| ATL 70-12 | 102.5 | 11.2 | 32 | 13 |
| ATL 95-10 | 106.5 | 13.2 | 32 | 10.5 |
| ATL 95-12 | 106.5 | 13.2 | 35 | 13 |
| ATL 95-16 | 108.5 | 13.2 | 38 | 17 |
| ATL 120-10 | 107.5 | 14.7 | 34 | 10.5 |
| ATL 120-12 | 107.5 | 14.7 | 35 | 13 |
| ATL 120-16 | 109.5 | 14.7 | 38 | 17 |
| ATL 150-10 | 119 | 16.3 | 35 | 10.5 |
| ATL 150-12 | 119 | 16.3 | 35 | 13 |
| ATL 150-16 | 121.5 | 16.3 | 41 | 17 |
| ATL 150-20 | 123 | 16.3 | 44 | 21 |
| ATL 185-12 | 123.5 | 18.3 | 40 | 13 |
| ATL 185-16 | 124.5 | 18.3 | 42 | 17 |
| ATL 185-20 | 126 | 18.3 | 46 | 21 |
| ATL 240-12 | 136 | 21 | 45 | 13 |
| ATL 240-16 | 136 | 21 | 45 | 17 |
| ATL 240-20 | 136 | 21 | 49 | 21 |
| ATL 300-16 | 144 | 23.3 | 51 | 17 |
| ATL 300-20 | 145 | 23.3 | 51 | 21 |
| ATL 400-16 | 187 | 26 | 58 | 17 |
| ATL 400-20 | 187 | 26 | 58 | 21 |
