AML tin plated aluminium alloy mechanical lugs and connectors
Description：
This tubular lug is designed to connect cable.
It is made of tinplated copper (by electrolysis).
It is manufactured with an inspection hole and socketing.
This lug meets the requirement of the NFC 20-130 standard.
Characteristics:
1.Total cross-section:25-400mm
2.Pr-engineered design for perfect fit in medium voltage cable accessories upto 42KV.
3.Lugs are suitable for out door and indoor applications.
4.Connector and lug bodies are made of a high-tensile ,tin plated aluminium alloy.
5.Lugs are suitable for outdoor and indoor appilcations and are available with different hole sizes.

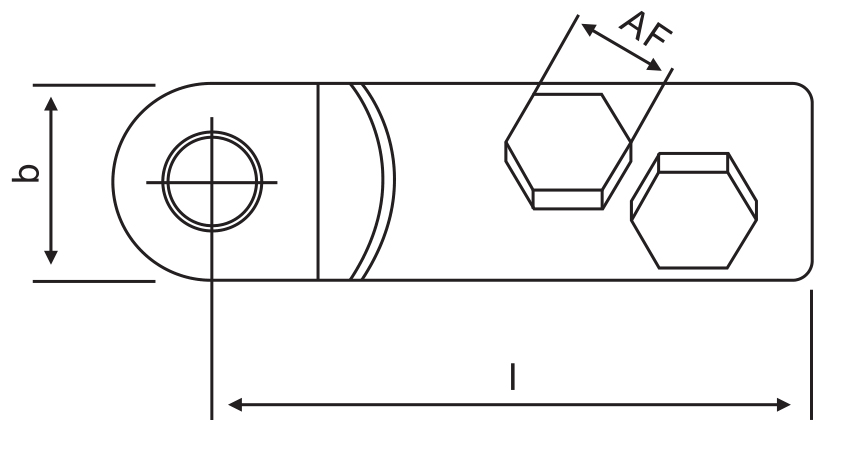

| Cable Size(mm²) | Bolt Size | Code | Dimension(mm) | Bolt Quantity | ||
| b | l | AF | ||||
| 25-95 | M-12 | AML25/95-13 | 24 | 60 | 13 | 1 |
| M-16 | AML25/95-17 | |||||
| 35-150 | M-12 | AML35/150-13 | 28 | 86 | 16 | 1 |
| M-16 | AML35/150-17 | |||||
| 95-240 | M-12 | AML95/240-13 | 33 | 112 | 19 | 2 |
| M-16 | AML95/240-17 | |||||
| M-20 | AML95/240-21 | |||||
| 120-300 | M-12 | AML120/300-13 | 37 | 115 | 24 | 2 |
| M-16 | AML120/300-17 | |||||
| 185-400 | M-12 | AML185/240-13 | 42 | 137 | 24 | 3 |
| M-16 | AML185/240-17 | |||||
| M-20 | AML185/240-21 | |||||
